YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

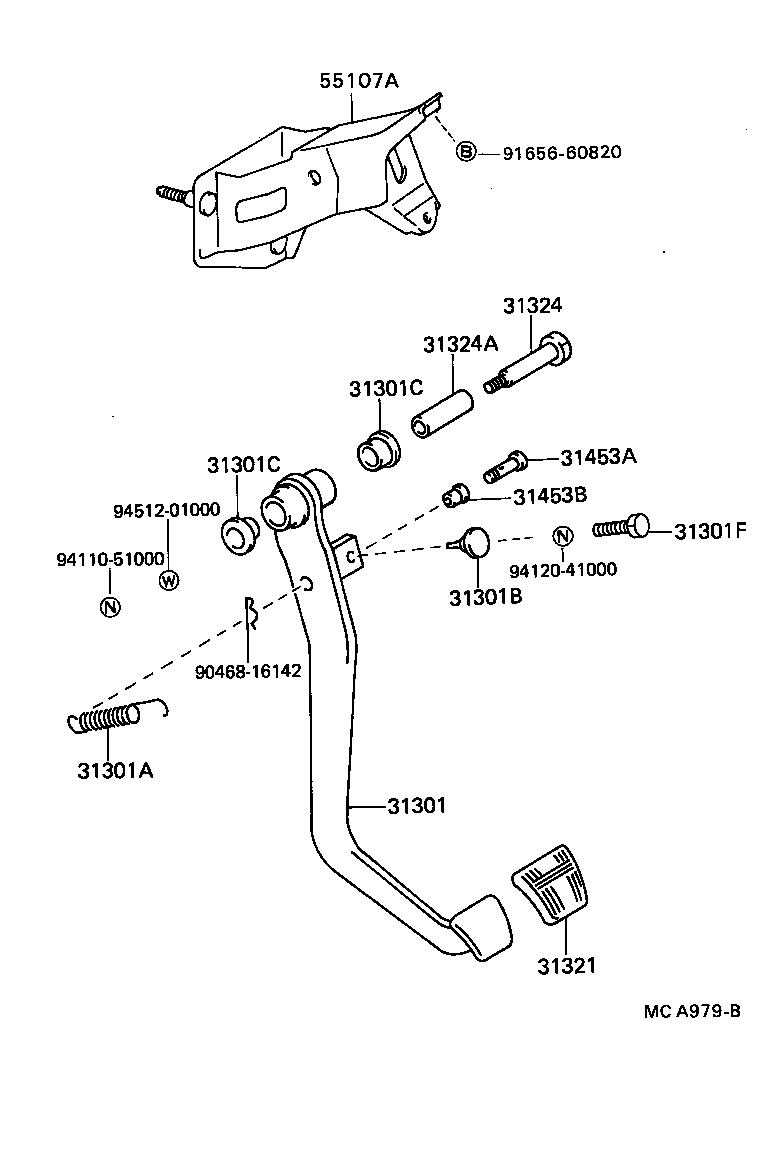

ILLUST NO. 1 OF 2(8408- )5F..CBR,DSL,EFI,LPG

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9046816142 9165660820 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-22160

GX7#,LX7#,SX70,YX7#..5F..(CBR,DSL,EFI,LPG)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-12011

GX7#,LX7#,SX70,YX7#..5F..(CBR,DSL,EFI,LPG)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

GX7#,LX7#,SX70,YX7#..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GX7#,LX7#,SX70,YX7#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GX7#,LX7#,SX70,YX7#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GX7#,LX7#,SX70,YX7#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GX7#,LX7#,SX70,YX7#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GX7#,LX7#,SX70,YX7#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GX7#,LX7#,SX70,YX7#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GX7#,LX7#,SX70,YX7#..5F..(CBR,DSL,EFI,LPG)

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

GX7#,LX7#,SX70,YX7#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-22140

GX7#,LX7#,SX70,YX7#..5F..(CBR,DSL,EFI,LPG)

 1
Common parts
90468-16142
91656-60820
94110-51000
94120-41000
94512-01000

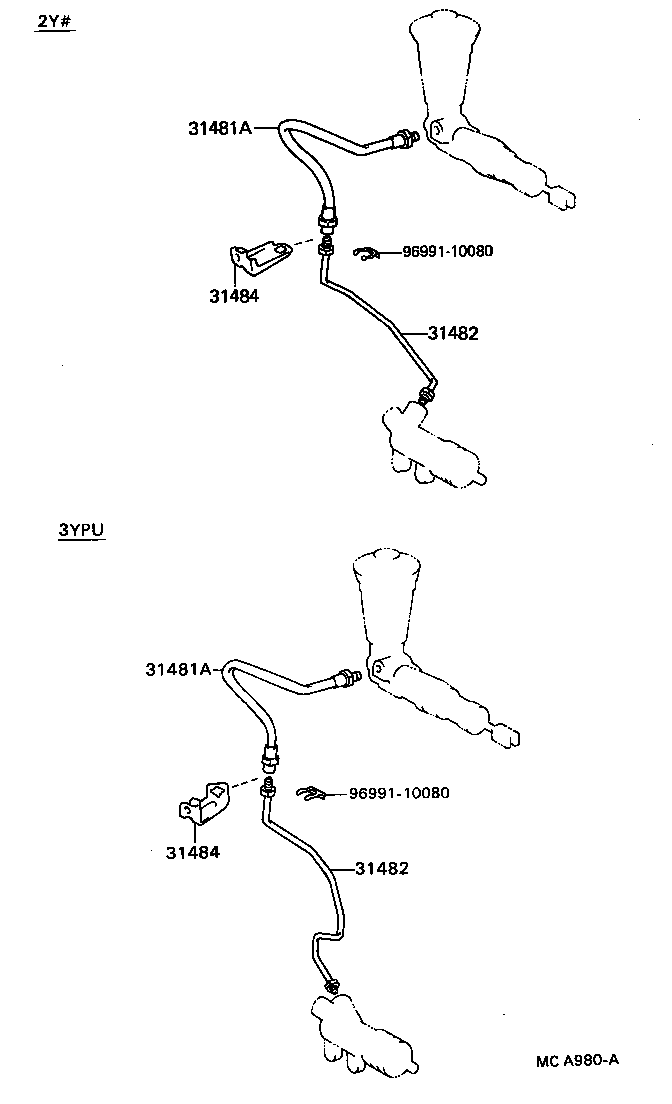

ILLUST NO. 2 OF 2(8408- )YX7#..5F

Click highlighted areas on diagram

diagram 31481A 31481A 31482 31482 31484 31484 9699110080 9699110080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
96812-50275

YX70..5F

 1
31481A - HOSE, CLUTCH, NO.1
96812-50275

YX70..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20290

YX7#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20290

YX7#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-20251

YX7#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-20251

YX7#..5F

 1
Common parts
96991-10080
