YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )YX7#..5F

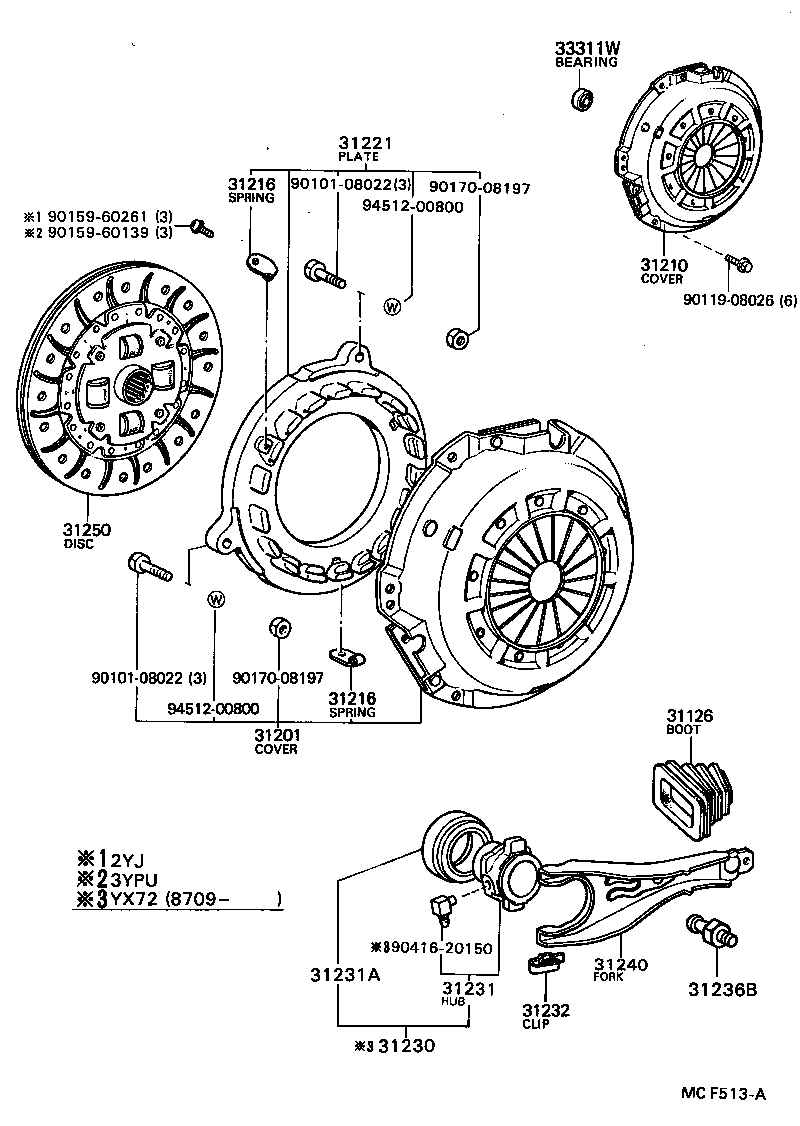

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31230 31231 31231A 31232 31236B 31240 31250 33311W 9010108022 9010108022 9011908026 9015960139 9015960261 9017008197 9017008197 9041620150 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

YX7#..5F

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29145

YX70..5F

 1
31210 - COVER ASSY, CLUTCH
31210-20180

YX70..5F

 1
31216 - SPRING, CLUTCH RETRACTING
31216-14010

YX70,72..5F

 3
31216 - SPRING, CLUTCH RETRACTING
31216-14010

YX70,72..5F

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29065

YX70..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36070

GX7#,YX7#..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

GX7#,LX7#,SX70,YX7#..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

GX7#,LX7#,SX70,YX7#..5F

 2
31236B - SUPPORT, RELEASE FORK
31236-30060

GX7#,LX7#,SX70,YX7#..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20070

YX7#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-20120

YX70..5F;SX70..KYO

 1
31250-20131

YX70..5F;SX70..KYO

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LX7#,YX7#..5F

 1
Common parts
90101-08022
90119-08026
90159-60139
90159-60261
90170-08197
90416-20150
94512-00800
