YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2YPU,3YPU

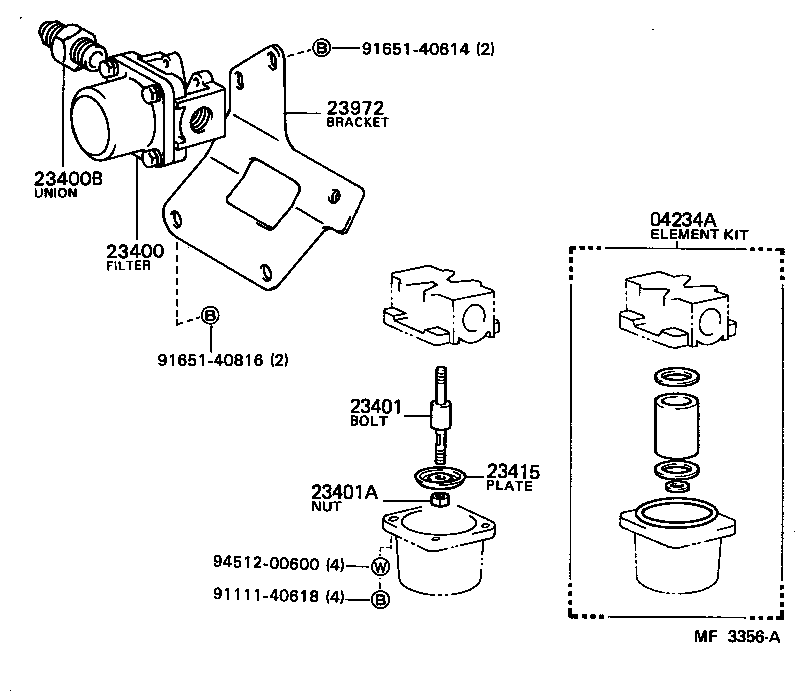

Click highlighted areas on diagram

diagram 04234A 23400 23400B 23401 23401A 23415 23972 9111140618 9165140614 9165140816 9451200600
Part # Description Qty Price
04234A - ELEMENT KIT, LPG
04234-44012

2YPU,3YPU..YX70,72

 1
23400 - FILTER ASSY, LPG
23400-40024

2YPU,3YPU..YX70,72

 1
23400B - UNION, LPG FILTER INLET
90404-14064

2YPU,3YPU..YX70,72

 1
23401 - BOLT SUB-ASSY, STUD(FOR LPG FILTER)
23401-40020

2YPU,3YPU..YX70,72

 1
23401A - NUT(FOR LPG FILTER STUD BOLT SET)
94115-40500

2YPU,3YPU..YX70,72

 1
23415 - PLATE, ELEMENT
23415-40010

2YPU,3YPU..YX70,72

 1
23972 - BRACKET, FILTER & SOLENOID VALVE
23972-72020

2YPU,3YPU..YX70,72

 1
Common parts
91111-40618
91651-40614
91651-40816
94512-00600
