YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2YPU,3YPU

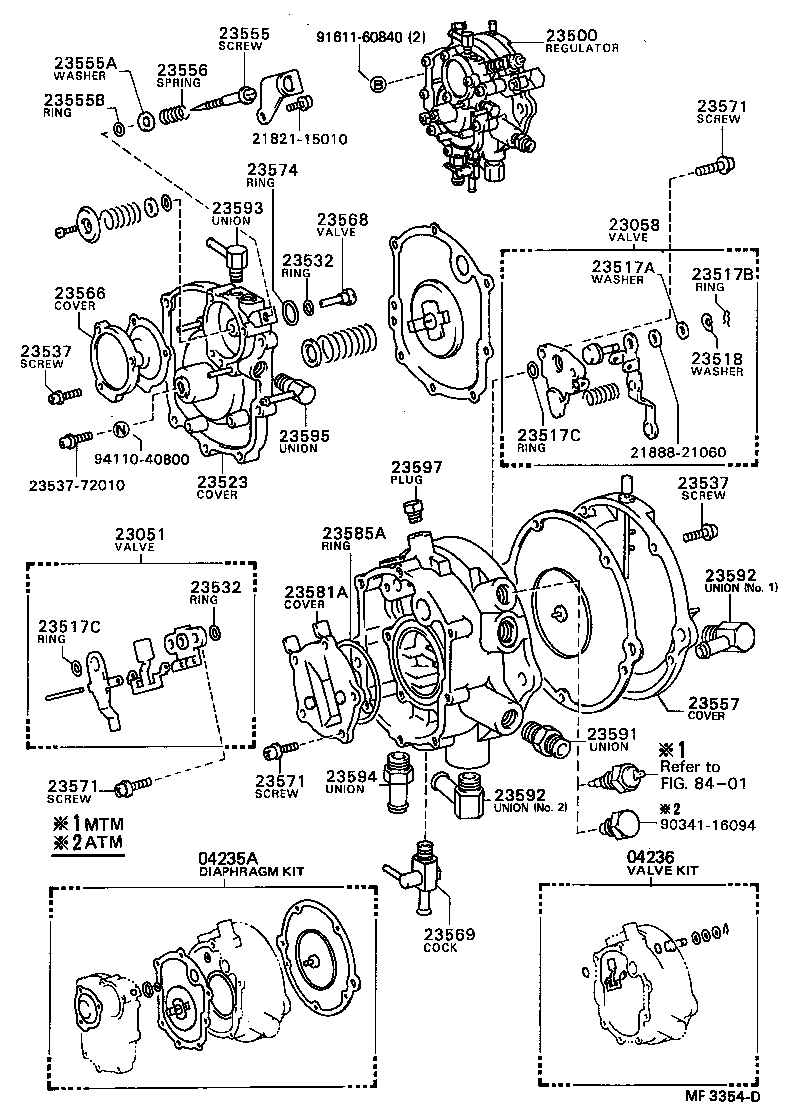

Click highlighted areas on diagram

diagram 04235A 04236 2182115010 2188821060 23051 23058 23500 23517A 23517B 23517C 23517C 23518 23523 23532 23532 23537 23537 2353772010 23555 23555A 23555B 23556 23557 23566 23568 23569 23571 23571 23571 23574 23581A 23585A 23591 23592 23592 23593 23594 23595 23597 8401 9034116094 9161160840 9411040800
Part # Description Qty Price
04235A - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04235-72010

2YPU,3YPU..YX70,72

 1
04236 - VALVE KIT, LPG REGULATOR
04236-72010

2YPU..YX70

 1
23051 - VALVE SUB-ASSY, 1ST
23051-72010

2YPU,3YPU..YX70,72

 1
23058 - VALVE SUB-ASSY, 2ND
23058-72010

2YPU,3YPU..YX70,72

 1
23500 - REGULATOR ASSY, LPG(CNG)
23500-72030

2YPU..YX70..5F

 1
23517A - WASHER(FOR ELASTIC FACE VALVE SET)
21535-10010

2YPU,3YPU..YX70,72

 1
23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET)
21792-69210

2YPU,3YPU..YX70,72

 1
23517C - GASKET(FOR ELASTIC FACE VALVE)
23532-44020

2YPU..YX70

 2
23517C - GASKET(FOR ELASTIC FACE VALVE)
23532-44020

2YPU..YX70

 2
23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23518-40010

2YPU,3YPU..YX70,72

 1
23523 - COVER, 1ST REGULATOR
23523-72010

2YPU,3YPU..YX70,72

 1
23532 - RING, O, NO.2(FOR BULB)
23532-40010

2YPU,3YPU..YX70,72

 2
23532 - RING, O, NO.2(FOR BULB)
23532-40010

2YPU,3YPU..YX70,72

 2
23537 - SCREW(FOR 2ND REGULATOR COVER SET)
21821-31140

2YPU,3YPU..YX70,72

L=20

 16
23537 - SCREW(FOR 2ND REGULATOR COVER SET)
21821-31140

2YPU,3YPU..YX70,72

L=20

 16
23555 - SCREW, IDLE ADJUST
23555-44041

2YPU,3YPU..YX70,72

 1
23555A - WASHER, IDLE ADJUST SCREW
21885-26040

2YPU,3YPU..YX70,72

 1
23555B - RING, O(FOR IDLE ADJUST SCREW)
23532-40010

2YPU,3YPU..YX70,72

 1
23556 - SPRING, IDLE ADJUST SCREW
21723-21030

2YPU,3YPU..YX70,72

 1
23566 - COVER(FOR VACUUM LOCK DIAPHRAGM)
23566-72010

2YPU,3YPU..YX70,72

 1
23568 - VALVE(FOR VACUUM LOCK DIAPHRAGM)
23568-72010

2YPU,3YPU..YX70,72

 1
23569 - COCK, DRAIN
23569-40010

2YPU,3YPU..YX70,72

 1
23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23571-72010

2YPU,3YPU..YX70,72

 9
23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23571-72010

2YPU,3YPU..YX70,72

 9
23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23571-72010

2YPU,3YPU..YX70,72

 9
23574 - RING, O, NO.1(FOR BULB)
23574-72010

2YPU,3YPU..YX70,72

 1
23581A - COVER, UPPER PREHEATER
23581-72010

2YPU,3YPU..YX70,72

 1
23585A - RING, O(FOR PREHEATER)
23585-72010

2YPU,3YPU..YX70,72

 1
23591 - UNION, NO.1, FUEL
90404-14064

2YPU..YX70

 1
23592 - UNION, NO.2, FUEL HOSE
23592-44050

2YPU,3YPU..YX70,72

 2
23592 - UNION, NO.2, FUEL HOSE
23592-44050

2YPU,3YPU..YX70,72

 2
23593 - UNION, NO.3
23593-72010

2YPU,3YPU..YX70,72

 1
23594 - UNION, NO.4, WATER HOSE
23594-72010

2YPU,3YPU..YX70,72

 1
23595 - UNION, NO.5
23591-72010

2YPU,3YPU..YX70,72

 1
23597 - PLUG, LPG REGULATOR BODY
90345-51025

2YPU,3YPU..YX70,72

 1
Common parts
21821-15010
21888-21060
23537-72010
90341-16094
91611-60840
94110-40800
Linked diagrams
8401
