YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2YPU,3YPU

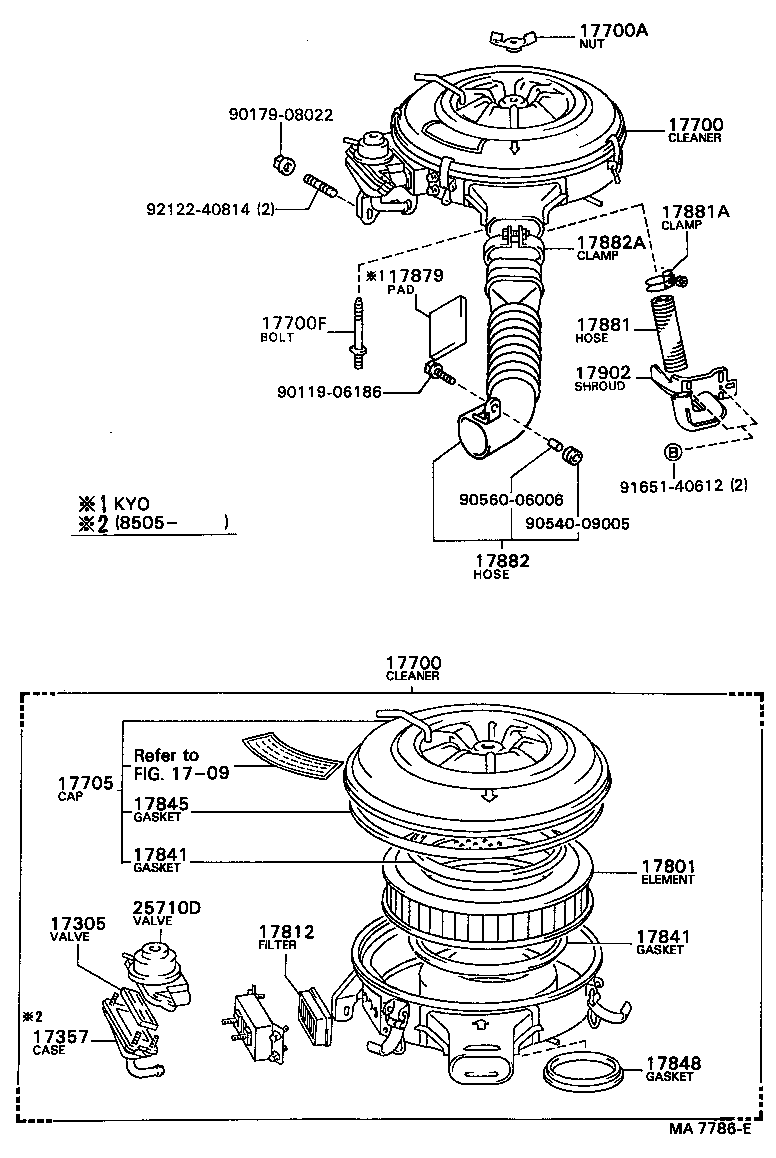

Click highlighted areas on diagram

diagram 1709 17305 17357 17700 17700 17700A 17700F 17705 17801 17812 17841 17841 17845 17848 17879 17881 17881A 17882 17882A 17902 25710D 9011906186 9017908022 9054009005 9056006006 9165140612 9212240814
Part # Description Qty Price
17305 - VALVE SUB-ASSY, REED
17305-15010

2YPU,3YPU..YX70,72

 1
17700 - CLEANER ASSY, AIR
17700-72050

2YPU..YX70

 1
17700 - CLEANER ASSY, AIR
17700-72050

2YPU..YX70

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2YPU,3YPU..YX70,72

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-08161

2YPU,3YPU..YX70,72

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-72011

2YPU..YX70

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-44040

2YPU,3YPU..YX70,72

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-31010

2YPU,3YPU..YX70,72

 1
17841 - GASKET, FILTER ELEMENT
17841-33011

2YPU,3YPU..YX70,72

 2
17841 - GASKET, FILTER ELEMENT
17841-33011

2YPU,3YPU..YX70,72

 2
17845 - GASKET, AIR CLEANER CAP
17845-42010

2YPU,3YPU..YX70,72

*G,L=1025

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003

2YPU,3YPU..YX70,72

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-54250

2Y#,3YPU..YX7#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01016

2Y#,3YPU..YX7#

 1
25710D - VALVE ASSY, AIR SWITCHING
25710-72010

2YPU,3YPU..YX70,72

 1
Common parts
90119-06186
90179-08022
90540-09005
90560-06006
91651-40612
92122-40814
Linked diagrams
1709
