YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

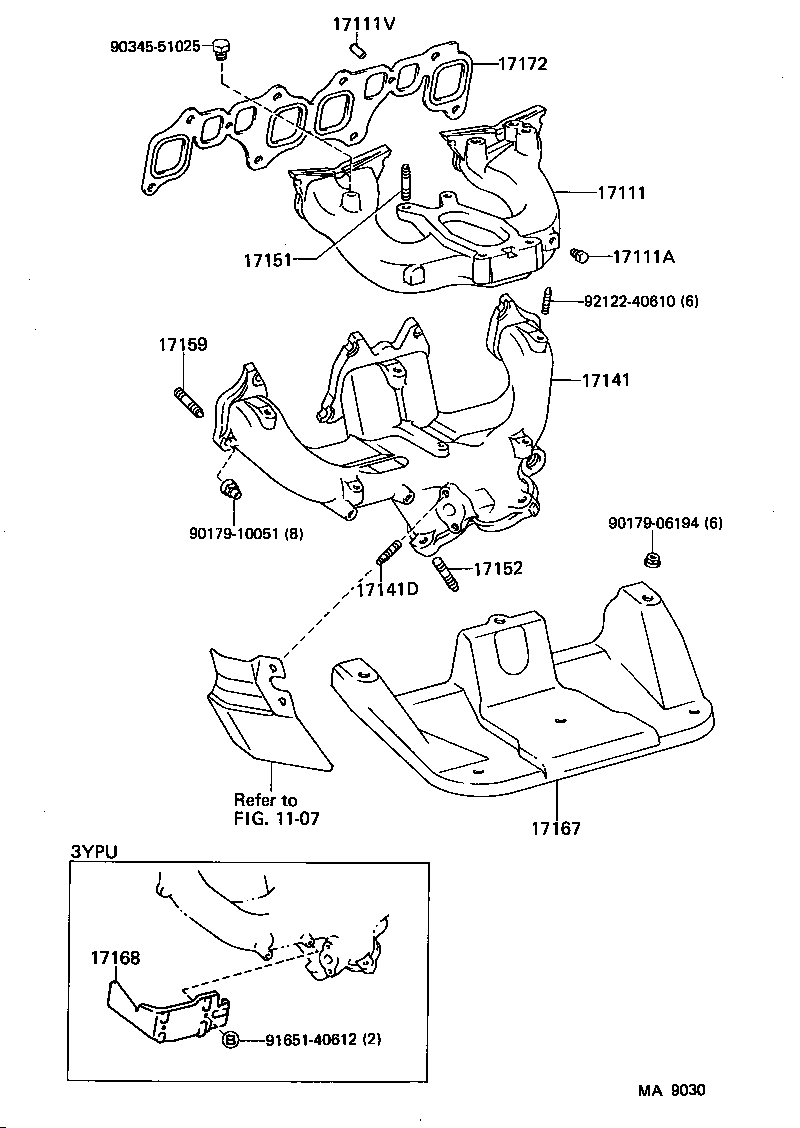

ILLUST NO. 3 OF 3(8408- )2YPU,3YPU

Click highlighted areas on diagram

diagram 1107 17111 17111A 17111V 17141 17141D 17151 17152 17159 17167 17168 17172 9017906194 9017910051 9034551025 9165140612 9212240610
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-72010

2YPU..YX70

 1
17111A - PLUG, NO.1
90345-51025

2YPU,3YPU..YX70,72

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

2Y#,3YPU..YX7#

 4
17141 - MANIFOLD, EXHAUST
17141-72010

2YPU,3YPU..YX70,72

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2YPU..YX70

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08160

2YPU,3YPU..YX70,72

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2Y#,3YPU..YX7#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

2Y#,3YPU..YX7#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-72010

2YPU,3YPU..YX70,72

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-71010

2Y#..YX7#

 1
Common parts
90179-06194
90179-10051
90345-51025
91651-40612
92122-40610
Linked diagrams
1107
