YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8408- )2Y#,3YPU

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463 16491 16491A 16491B 16491C 16491D
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-72130

2Y#,3YPU..YX7#..5F

 1
16400-72130

2Y#,3YPU..YX7#..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2Y#,3YPU..YX7#

 1
23322-54010

2Y#,3YPU..YX7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2Y#,3YPU..YX7#

 1
96711-19007

2Y#,3YPU..YX7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2Y#,3YPU..YX7#

 1
16401-63010

2Y#,3YPU..YX7#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-72090

2Y#,3YPU..YX7#

 1
16403-72090

2Y#,3YPU..YX7#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-35070

2Y#,3YPU..YX7#

 1
16442-35070

2Y#,3YPU..YX7#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-35161

2Y#,3YPU..YX7#

 2
16443-35161

2Y#,3YPU..YX7#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-35070

2Y#,3YPU..YX7#

 1
16451-35070

2Y#,3YPU..YX7#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-35070

2Y#,3YPU..YX7#

 1
16452-35070

2Y#,3YPU..YX7#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-35070

2Y#,3YPU..YX7#

 1
16462-35070

2Y#,3YPU..YX7#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-35160

2Y#,3YPU..YX7#

 2
16463-35160

2Y#,3YPU..YX7#

 2

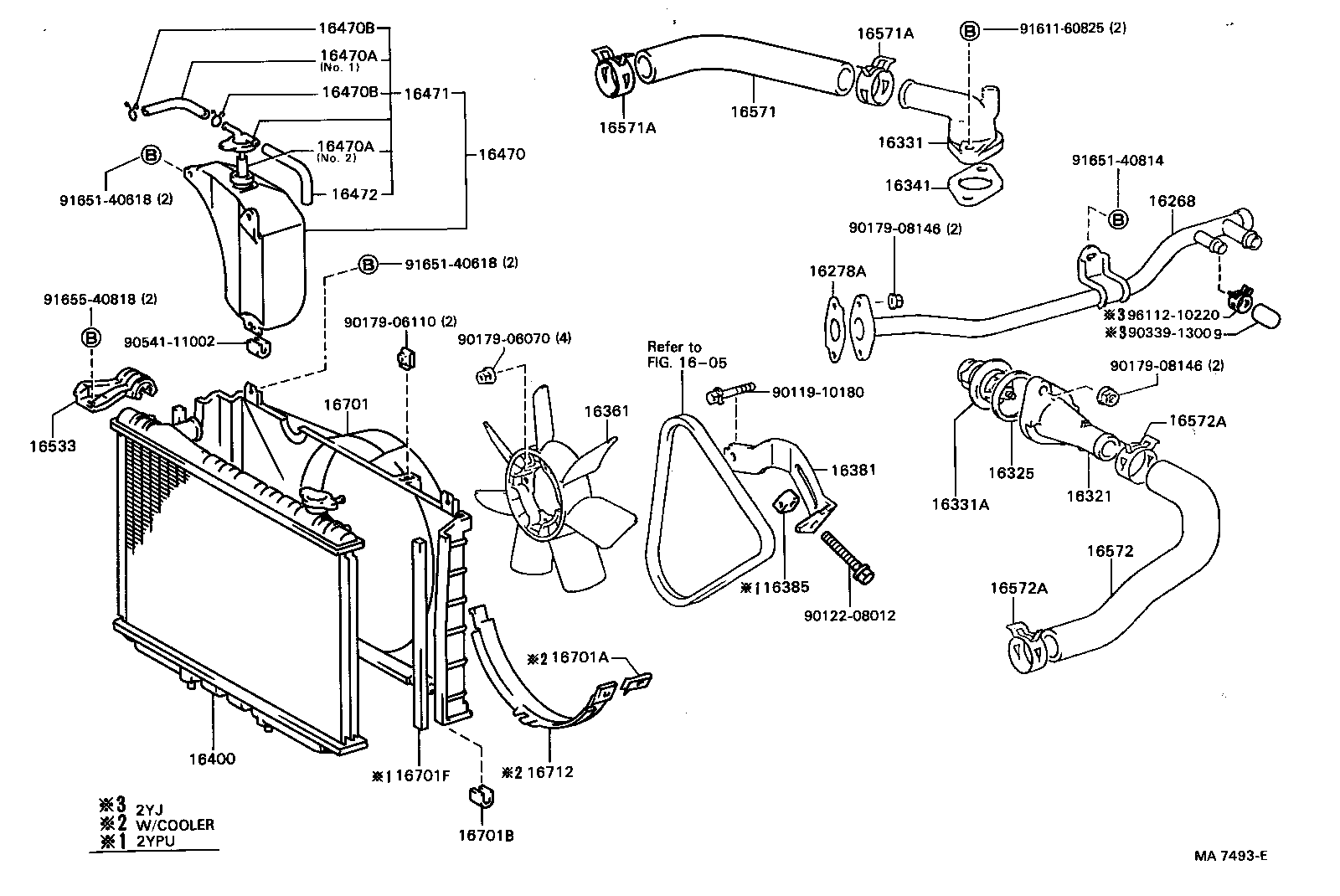

ILLUST NO. 1 OF 3(8408- )2Y#,3YPU

Click highlighted areas on diagram

diagram 1605 16268 16278A 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16701F 16712 9011910180 9012208012 9017906070 9017906110 9017908146 9017908146 9033913009 9054111002 9161160825 9165140618 9165140618 9165140814 9165540818 9611210220
Part # Description Qty Price
16268 - PIPE, WATER BY-PASS, NO.1
16268-72010

2Y#..YX7#

 1
16268-72011

2Y#..YX7#

 1
16278A - GASKET, WATER BY-PASS
17175-72010

2Y#,3YPU..YX7#

 1
16321 - INLET, WATER
16321-71010

2Y#,3YPU..YX7#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y#,3YPU..YX7#

 1
16331 - OUTLET, WATER
16331-71010

2Y#,3YPU..YX7#

 1
16331A - THERMOSTAT
90916-03046

2Y#..YX7#

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y#,3YPU..YX7#

 1
16361 - FAN
16361-38010

2Y#,3YPU..YX7#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73010

2YPU..YX70

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

2YPU,3YPU..YX70,72

 1
16400 - RADIATOR ASSY
16400-72130

2Y#,3YPU..YX7#..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72010

2Y#,3YPU..YX7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y#,3YPU..YX7#

*H,L=200,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y#,3YPU..YX7#

*H,L=200,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3YPU..YX7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3YPU..YX7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-72010

2Y#,3YPU..YX7#

 1
16472 - HOSE, BREATHER
85338-95A01

2Y#,3YPU..YX7#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-70010

2Y#,3YPU..YX7#

 2
16571 - HOSE, RADIATOR, INLET
16571-72040

2Y#,3YPU..YX7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3YPU..YX7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3YPU..YX7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-72040

2Y#,3YPU..YX7#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y#,3YPU..YX7#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y#,3YPU..YX7#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-72040

2Y#,3YPU..YX7#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

2Y#,3YPU..YX7#

W/COOLER

 2
16701B - CUSHION, FAN SHROUD
90541-11002

2Y#,3YPU..YX7#

 2
16701F - SEAL(FOR FAN SHROUD)
16832-37010

2YPU,3YPU..YX70,72

 2
16712 - SHROUD, FAN, NO.2
16712-73010

2Y#,3YPU..YX7#

W/COOLER

 1
Common parts
90119-10180
90122-08012
90179-06070
90179-06110
90179-08146
90339-13009
90541-11002
91611-60825
91651-40618
91651-40814
91655-40818
96112-10220
