YX70-XEHNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2Y#,3YPU

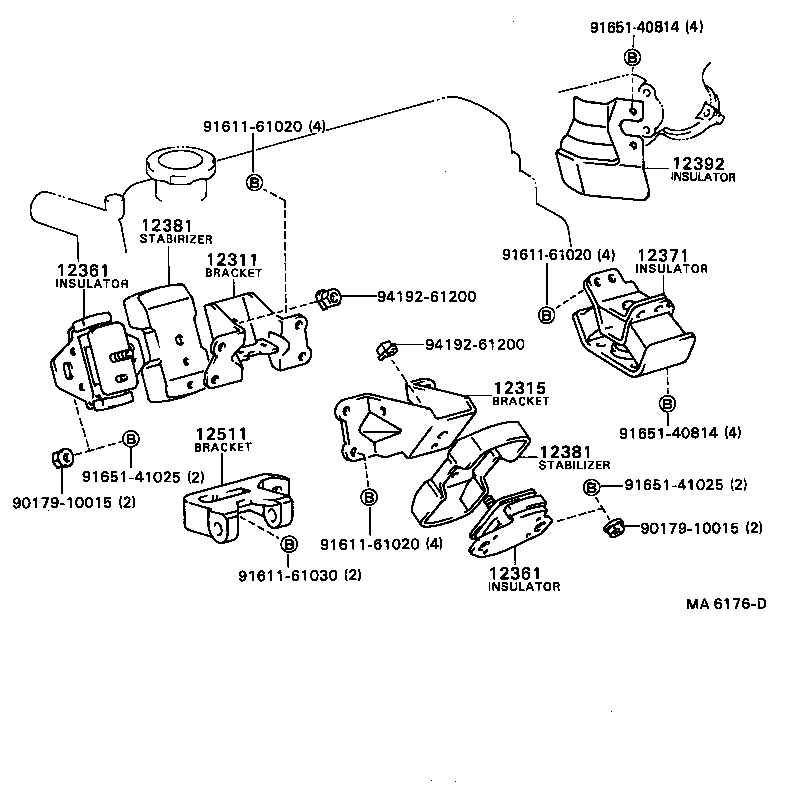

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12392 12511 9017910015 9017910015 9161161020 9161161020 9161161020 9161161030 9165140814 9165140814 9165141025 9165141025 9419261200 9419261200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y#,3YPU..YX7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y#,3YPU..YX7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

2Y#..YX7#

TOYO

 2
12361-38120

2Y#..YX7#

MARUYASU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

2Y#..YX7#

TOYO

 2
12361-38120

2Y#..YX7#

MARUYASU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2Y#..YX7#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

2Y#..YX7#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

2Y#..YX7#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

2Y#,3YPU..YX7#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73010

2YPU..YX70

 1
Common parts
90179-10015
91611-61020
91611-61030
91651-40814
91651-41025
94192-61200
