TX67V-XXKRSW (1980)
Toyota Mark 2

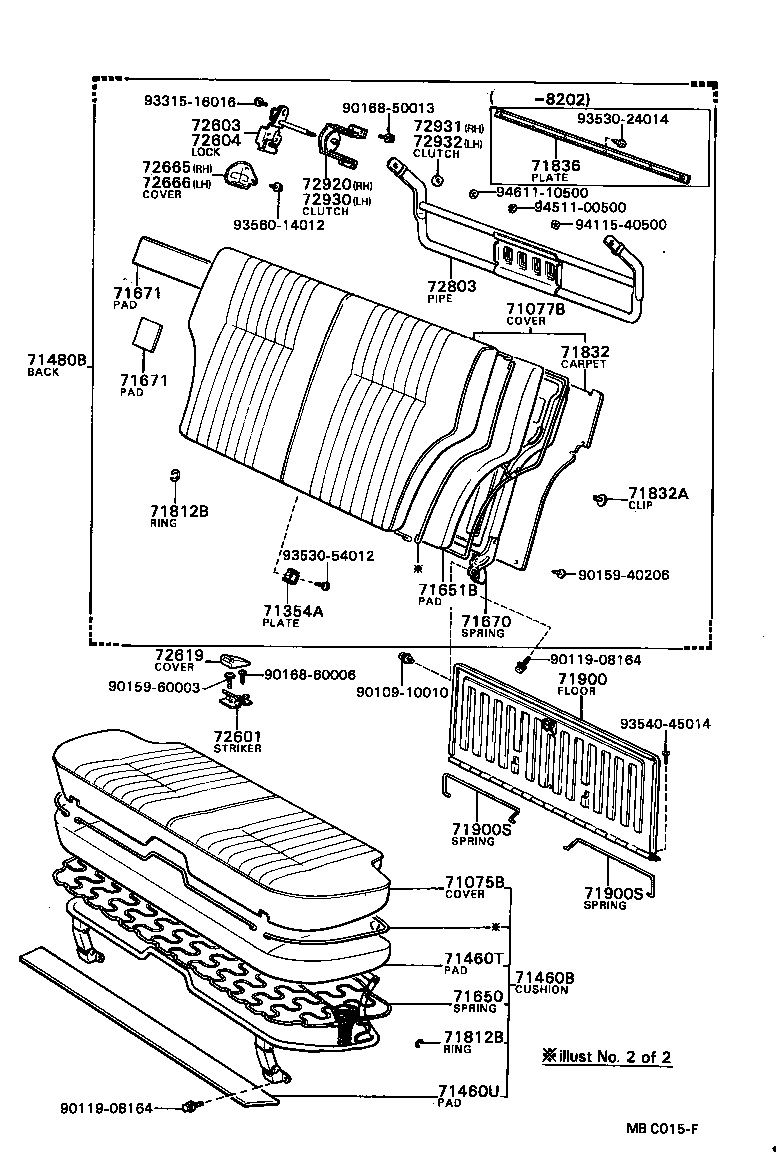

ILLUST NO. 1 OF 2(8009-8208)GR ; (8009-8208)GX60,LX60..HT,SED..GL,LE,LG ; (8009-8208)GX61,MX61,RX6#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-9165003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-9165203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-9165704 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-9167003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71077-9167203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71077-9168104 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-9167703 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-9168003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-9168504 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-91605 |
LX67,TX67..DLX,STD |
1 | ||
| 71460U - PAD SUB-ASSY, REAR SEAT CUSHION, NO.2 | ||||
| 71522-22090 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71523-22030 |
GX60,LX67,TX67..V,WG 100X200 |
2 | ||
| 71621-91610 |
GX60,LX67,TX67..V,WG 150X250 |
2 | ||
| 71622-91602 |
GX60,LX67,TX67..V,WG 100X1000 |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-91A1203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-91A1403 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-91A2104 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-91608 |
GX60,LX67,TX67..V,WG |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-91627 |
LX67,TX67..DLX,STD |
1 | ||
| 71670-91627 |
LX67,TX67 |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71522-22090 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71523-22030 |
GX60,LX67,TX67..V,WG 100X200 |
2 | ||
| 71622-91602 |
GX60,LX67,TX67..V,WG 100X1000 |
2 | ||
| 71672-91601 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71671-91601 |
GX60,LX67,TX67..V,WG 80X80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| Common parts | ||||
| 90468-12070 | ||||
| 91656-40630 | ||||
| 91665-60825 | ||||
ILLUST NO. 1 OF 2(8011- )LX67,TX67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-9165003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-9165203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-9165704 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-9167003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71077-9167203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71077-9168104 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71354A - PLATE, REAR SEAT BACK SET | ||||
| 71354-91602 |
GX60,LX67,TX67..V,WG |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-9167703 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-9168003 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-9168504 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-91605 |
LX67,TX67..DLX,STD |
1 | ||
| 71460U - PAD SUB-ASSY, REAR SEAT CUSHION, NO.2 | ||||
| 71522-22090 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71523-22030 |
GX60,LX67,TX67..V,WG 100X200 |
2 | ||
| 71621-91610 |
GX60,LX67,TX67..V,WG 150X250 |
2 | ||
| 71622-91602 |
GX60,LX67,TX67..V,WG 100X1000 |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-91A1203 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-91A1403 |
TX67..STD PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-91A2104 |
LX67,TX67..DLX,STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-91608 |
GX60,LX67,TX67..V,WG |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-91601 |
LX67,TX67..DLX,STD |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-91627 |
LX67,TX67..DLX,STD |
1 | ||
| 71670-91627 |
LX67,TX67 |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71522-22090 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71523-22030 |
GX60,LX67,TX67..V,WG 100X200 |
2 | ||
| 71622-91602 |
GX60,LX67,TX67..V,WG 100X1000 |
2 | ||
| 71672-91601 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71671-91601 |
GX60,LX67,TX67..V,WG 80X80 |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71522-22090 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71523-22030 |
GX60,LX67,TX67..V,WG 100X200 |
2 | ||
| 71622-91602 |
GX60,LX67,TX67..V,WG 100X1000 |
2 | ||
| 71672-91601 |
GX60,LX67,TX67..V,WG 100X400 |
2 | ||
| 71671-91601 |
GX60,LX67,TX67..V,WG 80X80 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71832 - CARPET OR MAT, REAR SEAT BACK | ||||
| 71885-9160201 |
TX67..STD BLACK,BLACK,TRIM2# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0700501 |
TX67..STD BLACK,BLACK,TRIM2# |
4 | ||
| 90467-0700544 |
GX60,LX67,TX67 BLUE,BLUE,TRIM8# |
4 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 71837-91601 |
GX60,LX67,TX67..V,WG |
1 | ||
| 71900 - FLOOR ASSY, REAR SEAT | ||||
| 72705-91606 |
GX60,LX67,TX67..V,WG |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58489-91601 |
GX60,LX67,TX67..V,WG LH |
1 | ||
| 58488-91601 |
GX60,LX67,TX67..V,WG RH |
1 | ||
| 71900S - SPRING (FOR REAR SEAT FLOOR) | ||||
| 58489-91601 |
GX60,LX67,TX67..V,WG LH |
1 | ||
| 58488-91601 |
GX60,LX67,TX67..V,WG RH |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-91601 |
GX60,LX67,TX67..V,WG |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-91602 |
LX67,TX67 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-91602 |
LX67,TX67 |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-9160101 |
GX60,LX67,TX67..V,WG BLACK,BLACK,TRIM2# |
2 | ||
| 72615-9160114 |
GX60,LX67,TX67 BLUE,BLUE,TRIM8# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-9160105 |
GX60,LX67,TX67..V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 72665-9160114 |
GX60,LX67,TX67 BLUE,BLUE,TRIM8# |
1 | ||
| 72665-9160101 |
GX60,LX67,TX67..V,WG BLACK,BLACK,TRIM2# |
1 | ||
| 72665-9160103 |
GX60,LX67,TX67..V,WG GRAY,GRAY,TRIM2# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-9160101 |
GX60,LX67,TX67..V,WG BLACK,BLACK,TRIM2# |
1 | ||
| 72666-9160114 |
LX60,67,TX67 BLUE,BLUE,TRIM8# |
1 | ||
| 72666-9160103 |
GX60,LX67,TX67..V,WG GRAY,GRAY,TRIM2# |
1 | ||
| 72666-9160105 |
GX60,LX67,TX67..V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 72803 - PIPE SUB-ASSY, PROTECTOR | ||||
| 72907-9160101 |
LX67,TX67 BLACK,BLACK,TRIM2# |
1 | ||
| 72907-9160105 |
LX67,TX67 GREIGE,BEIGE,TRIM4# |
1 | ||
| 72907-9160103 |
LX67,TX67 GRAY,GRAY,TRIM2# |
1 | ||
| 72907-9160114 |
TX67..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72907-9160104 |
LX67,TX67 BLUE,BLUE,TRIM8# |
1 | ||
| 72920 - CLUTCH ASSY, REAR SEAT BACK PROTECTOR, RH | ||||
| 72920-91601 |
LX67,TX67 |
1 | ||
| 72930 - CLUTCH ASSY, REAR SEAT BACK PROTECTOR, LH | ||||
| 72930-91601 |
LX67,TX67 |
1 | ||
| 72931 - CLUTCH, REAR SEAT BACK LOCK, RH | ||||
| 72931-91601 |
LX67,TX67 |
1 | ||
| 72932 - CLUTCH, REAR SEAT BACK LOCK, LH | ||||
| 72932-91601 |
LX67,TX67 |
1 | ||
| Common parts | ||||
| 90109-10010 | ||||
| 90119-08164 | ||||
| 90159-40206 | ||||
| 90159-60003 | ||||
| 90168-50013 | ||||
| 90168-60006 | ||||
| 93315-16016 | ||||
| 93530-24014 | ||||
| 93530-54012 | ||||
| 93540-45014 | ||||
| 93560-14012 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94611-10500 | ||||
