Toyota Mark 2 TX67 CYLINDER HEAD

TX67V-XXKNSW (1980)

Toyota Mark 2

Production Nov 1980 - Jul 1984

Engine 13TJ

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8009-8204)L

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19096	13T#..TX6#	09/1980 - 12/1982	1
11101-54024	L..LX60,67	04/1982 - 08/1983	1
11101-18020	13TJ..TX67	12/1982 - 07/1984	1
11101-54040	L..LX60,67	08/1983 - 07/1984	1
11115 - GASKET, CYLINDER HEAD
11115-54011	L..LX60,67	11/1981 - 07/1984	1
11115-26024	13T#..TX6#	09/1980 - 07/1984	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11123-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29128	13T#..TX6#	09/1980 - 07/1984	1
11201-59045	L..LX60,67	09/1980 - 07/1984	1
11213 - GASKET, CYLINDER HEAD COVER
11213-25012	13T#..TX6#	09/1980 - 07/1984	1
11213-54010	L..LX60,67	09/1980 - 04/1983	1
11213-54030	L..LX60,67	04/1983 - 07/1984	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	13TJ..TX67	08/1983 - 07/1984	1
12180-13010	13T#..TX6#	09/1980 - 06/1983	1
12180-13010	13TJ..TX67	06/1983 - 07/1983	1
12180-13010	13TJ..TX67	07/1983 - 08/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	13T#..TX6#	09/1980 - 07/1984	1
Linked diagrams
1701
1709
2201

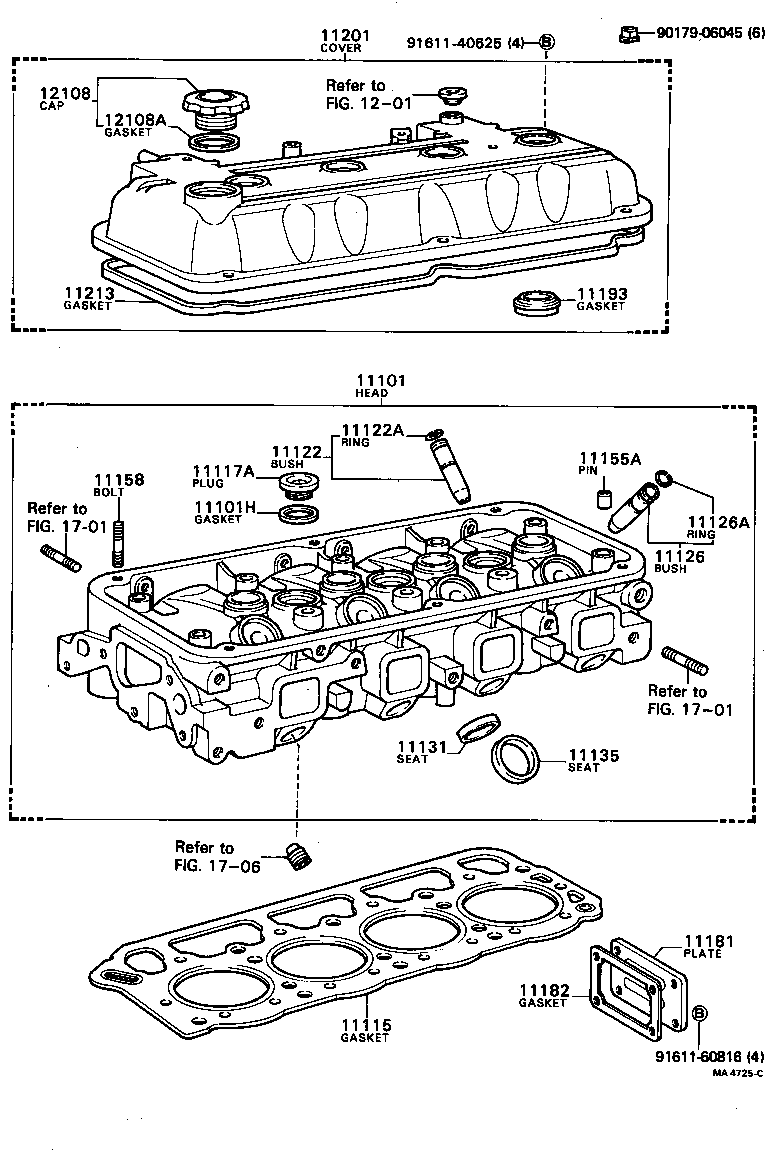

(8009-8212)13T#

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19096	13T#..TX6#	09/1980 - 12/1982	1
11101-54024	L..LX60,67	04/1982 - 08/1983	1
11101-18020	13TJ..TX67	12/1982 - 07/1984	1
11101-54040	L..LX60,67	08/1983 - 07/1984	1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246	13T#..TX6#	09/1980 - 07/1984	3
11115 - GASKET, CYLINDER HEAD
11115-54011	L..LX60,67	11/1981 - 07/1984	1
11115-26024	13T#..TX6#	09/1980 - 07/1984	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-24090	13T#..TX6#	09/1980 - 07/1984	3
11122 - BUSH, INTAKE VALVE GUIDE
11122-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11123-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049	13T#..TX6#	09/1980 - 07/1984	6
11126 - BUSH, EXHAUST VALVE GUIDE
11127-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049	13T#..TX6#	09/1980 - 07/1984	6
11131 - SEAT, INTAKE VALVE
11131-25010	13T#..TX6# STD	09/1980 - 07/1984	4
11132-25010	13T#..TX6# O/S 0.03	09/1980 - 07/1984	4
11135 - SEAT, EXHAUST VALVE
11136-25011	13T#..TX6# O/S 0.03	09/1980 - 07/1984	4
11135-25011	13T#..TX6# STD	09/1980 - 07/1984	4
11155A - PIN, RING W/HEAD
90253-16020	13T#..TX6#	09/1980 - 07/1984	5
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-40625	13T#..TX6#	09/1980 - 07/1984	6
11181 - PLATE, CYLINDER HEAD, REAR
11181-25010	13T#..TX6#	09/1980 - 07/1984	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-25010	13T#..TX6#	09/1980 - 01/1982	1
11182-25011	13T#..TX6#	01/1982 - 07/1984	1
11193 - GASKET, SPARK PLUG TUBE
11193-25012	13T#..TX6#	09/1980 - 07/1984	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29128	13T#..TX6#	09/1980 - 07/1984	1
11201-59045	L..LX60,67	09/1980 - 07/1984	1
11213 - GASKET, CYLINDER HEAD COVER
11213-25012	13T#..TX6#	09/1980 - 07/1984	1
11213-54010	L..LX60,67	09/1980 - 04/1983	1
11213-54030	L..LX60,67	04/1983 - 07/1984	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	13TJ..TX67	08/1983 - 07/1984	1
12180-13010	13T#..TX6#	09/1980 - 06/1983	1
12180-13010	13TJ..TX67	06/1983 - 07/1983	1
12180-13010	13TJ..TX67	07/1983 - 08/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	13T#..TX6#	09/1980 - 07/1984	1
Common parts
90179-06045
91611-40625
91611-60816
Linked diagrams
1201
1701
1706

(8204- )L

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19096	13T#..TX6#	09/1980 - 12/1982	1
11101-54024	L..LX60,67	04/1982 - 08/1983	1
11101-18020	13TJ..TX67	12/1982 - 07/1984	1
11101-54040	L..LX60,67	08/1983 - 07/1984	1
11115 - GASKET, CYLINDER HEAD
11115-54011	L..LX60,67	11/1981 - 07/1984	1
11115-26024	13T#..TX6#	09/1980 - 07/1984	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11123-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29128	13T#..TX6#	09/1980 - 07/1984	1
11201-59045	L..LX60,67	09/1980 - 07/1984	1
11213 - GASKET, CYLINDER HEAD COVER
11213-25012	13T#..TX6#	09/1980 - 07/1984	1
11213-54010	L..LX60,67	09/1980 - 04/1983	1
11213-54030	L..LX60,67	04/1983 - 07/1984	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	13TJ..TX67	08/1983 - 07/1984	1
12180-13010	13T#..TX6#	09/1980 - 06/1983	1
12180-13010	13TJ..TX67	06/1983 - 07/1983	1
12180-13010	13TJ..TX67	07/1983 - 08/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	13T#..TX6#	09/1980 - 07/1984	1
Linked diagrams
1709
2201

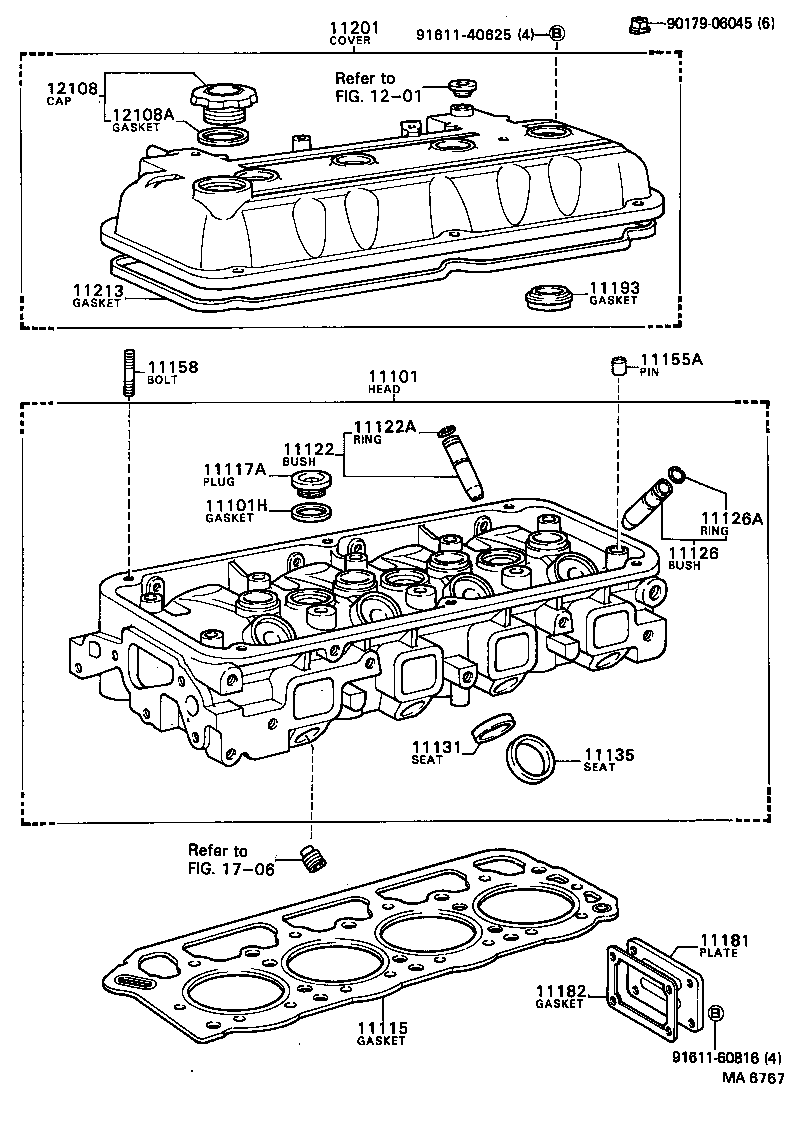

(8212- )13TJ

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19096	13T#..TX6#	09/1980 - 12/1982	1
11101-54024	L..LX60,67	04/1982 - 08/1983	1
11101-18020	13TJ..TX67	12/1982 - 07/1984	1
11101-54040	L..LX60,67	08/1983 - 07/1984	1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246	13T#..TX6#	09/1980 - 07/1984	3
11115 - GASKET, CYLINDER HEAD
11115-54011	L..LX60,67	11/1981 - 07/1984	1
11115-26024	13T#..TX6#	09/1980 - 07/1984	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-24090	13T#..TX6#	09/1980 - 07/1984	3
11122 - BUSH, INTAKE VALVE GUIDE
11122-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11123-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049	13T#..TX6#	09/1980 - 07/1984	6
11126 - BUSH, EXHAUST VALVE GUIDE
11127-25021	13T#..TX6# O/S 0.05	09/1980 - 07/1984	4
11126-25021	13T#..TX6# STD	09/1980 - 07/1984	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049	13T#..TX6#	09/1980 - 07/1984	6
11131 - SEAT, INTAKE VALVE
11131-25010	13T#..TX6# STD	09/1980 - 07/1984	4
11132-25010	13T#..TX6# O/S 0.03	09/1980 - 07/1984	4
11135 - SEAT, EXHAUST VALVE
11136-25011	13T#..TX6# O/S 0.03	09/1980 - 07/1984	4
11135-25011	13T#..TX6# STD	09/1980 - 07/1984	4
11155A - PIN, RING W/HEAD
90253-16020	13T#..TX6#	09/1980 - 07/1984	5
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-40625	13T#..TX6#	09/1980 - 07/1984	6
11181 - PLATE, CYLINDER HEAD, REAR
11181-25010	13T#..TX6#	09/1980 - 07/1984	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-25010	13T#..TX6#	09/1980 - 01/1982	1
11182-25011	13T#..TX6#	01/1982 - 07/1984	1
11193 - GASKET, SPARK PLUG TUBE
11193-25012	13T#..TX6#	09/1980 - 07/1984	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29128	13T#..TX6#	09/1980 - 07/1984	1
11201-59045	L..LX60,67	09/1980 - 07/1984	1
11213 - GASKET, CYLINDER HEAD COVER
11213-25012	13T#..TX6#	09/1980 - 07/1984	1
11213-54010	L..LX60,67	09/1980 - 04/1983	1
11213-54030	L..LX60,67	04/1983 - 07/1984	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	13TJ..TX67	08/1983 - 07/1984	1
12180-13010	13T#..TX6#	09/1980 - 06/1983	1
12180-13010	13TJ..TX67	06/1983 - 07/1983	1
12180-13010	13TJ..TX67	07/1983 - 08/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	13T#..TX6#	09/1980 - 07/1984	1
Common parts
90179-06045
91611-40625
91611-60816
Linked diagrams
1201
1706

TX67V-XXKNSW (1980)

(8009-8204)L

(8009-8212)13T#

(8204- )L

(8212- )13TJ
