TX60-XEKRS (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

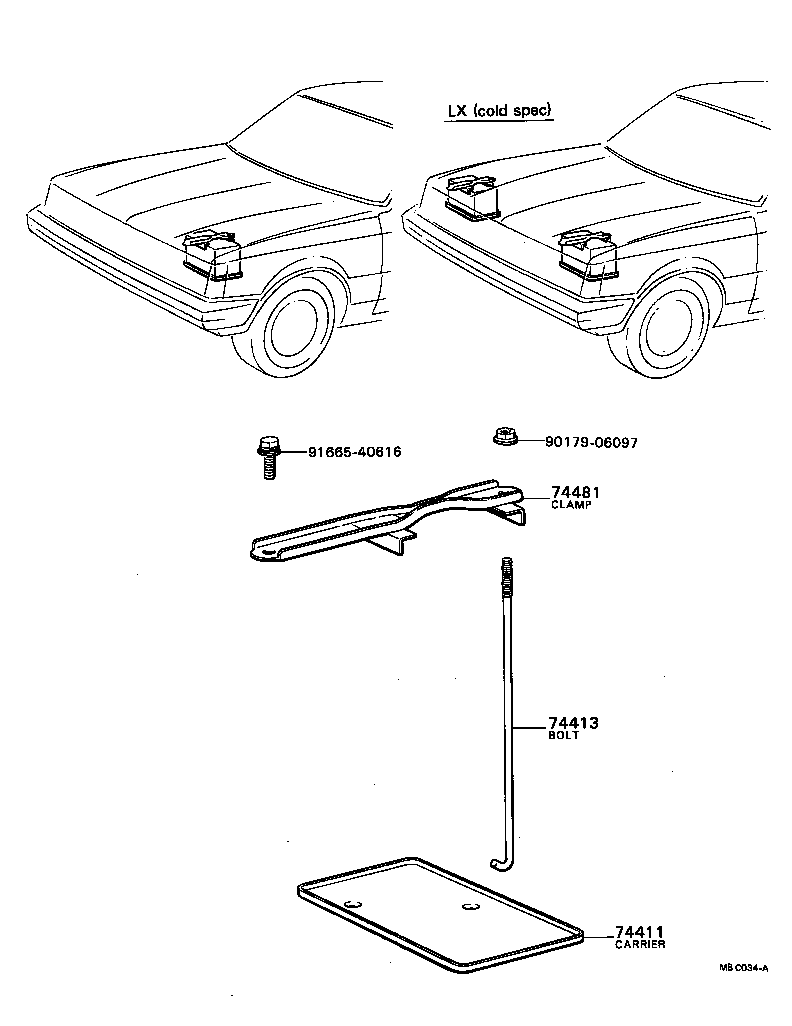

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166540616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14010

GX6#,MX63,RX6#,TX6#

NS40ZAL-MF

 1
74431-14050

GX6#,MX63,RX6#,TX6#

NS40ZAL-MF

 1
74431-14030

GX6#,MX6#,RX6#,SX60,TX6#

N50ZL-MF,55D23L-MF

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22120

GX6#,MX61,63,RX6#,TX6#

NS40ZAL,NS60L-MF

 1
74404-22130

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

N50ZL-MF,NX110-5L;NX120-7L,55D23L-MF

 1
Common parts
90179-06097
91665-40616
