TX60-XEKRS (1980)
Toyota Mark 2

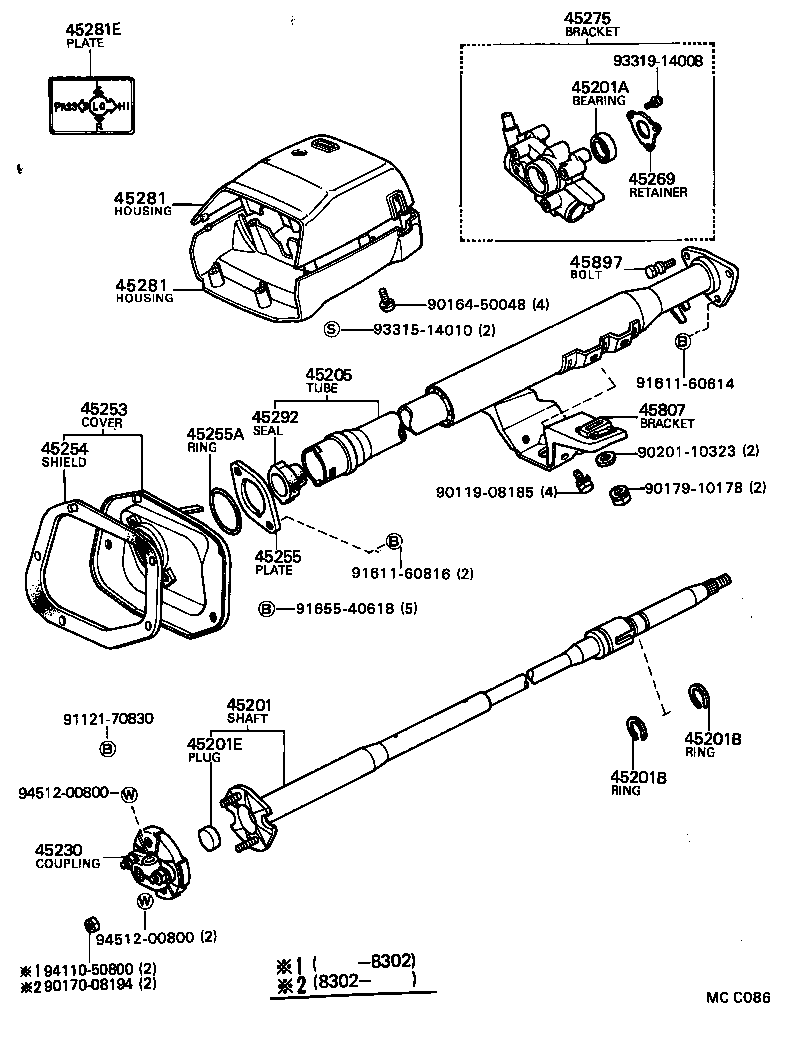

ILLUST NO. 1 OF 3(8009-8109)TX67 ; (8009-8109)GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F..DLX,GD,GL,GR,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45081-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
2 | ||
| 90506-23009 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 長さ=107.5 |
2 | ||
| 90945-02034 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45821-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STRG |
1 | ||
| 45210-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STRG |
1 | ||
| 45210-22060 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45210-22060 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 90501-45011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-22030 |
TX60..STD W/TILT STRG |
1 | ||
| 45220-22030 |
TX60..STD W/TILT STRG |
1 | ||
| 45202E - PLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90333-21008 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 90333-21008 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45870-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45870-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45870-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45215-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45230-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
1 | ||
| 45025-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45254-22031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 90301-45202 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22211 |
TX67..DLX,GL;GX6#,LX6#,MX60,61,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45280-22211 |
TX67..DLX,GL;GX6#,LX6#,MX60,61,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45280-30200 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45280-30200 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45283-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45282-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45292-22050 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45807-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45082-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45082-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22040 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22040 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45814-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22100 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22100 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22060 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.2,T=0.2 |
2 | ||
| 45815-22060 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.2,T=0.2 |
2 | ||
| 45815-22070 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22070 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22080 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.8,T=0.8 |
2 | ||
| 45815-22080 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.8,T=0.8 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45819-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 90387-08002 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45890-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45804-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 90507-14001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 72538-12010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45898-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45899-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45289-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45897-12030 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-06024 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 91121-70830 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| 91611-60840 | ||||
| 91655-40618 | ||||
| 91655-60620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 3(8109- )GX6#,LX6#,MX6#,RX6#,SX60,TX60..3FC,4F,4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45081-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
2 | ||
| 90506-23009 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 長さ=107.5 |
2 | ||
| 90945-02034 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45821-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STRG |
1 | ||
| 45210-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STRG |
1 | ||
| 45210-22060 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45210-22060 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 90501-45011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-22030 |
TX60..STD W/TILT STRG |
1 | ||
| 45220-22030 |
TX60..STD W/TILT STRG |
1 | ||
| 45202E - PLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90333-21008 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 90333-21008 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45870-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45870-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45870-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45215-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45230-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
1 | ||
| 45025-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45254-22031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 90301-45202 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22211 |
TX67..DLX,GL;GX6#,LX6#,MX60,61,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45280-22211 |
TX67..DLX,GL;GX6#,LX6#,MX60,61,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45280-30200 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45280-30200 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45283-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45282-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45292-22050 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45807-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45082-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45082-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22040 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22040 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45814-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22100 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22100 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22060 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.2,T=0.2 |
2 | ||
| 45815-22060 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.2,T=0.2 |
2 | ||
| 45815-22070 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22070 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22080 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.8,T=0.8 |
2 | ||
| 45815-22080 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F 厚さ=0.8,T=0.8 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45819-22011 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 90387-08002 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45890-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45804-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 90507-14001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 72538-12010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45898-22010 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45899-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45289-22020 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45897-12030 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-06024 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 91121-70830 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| 91611-60840 | ||||
| 91655-40618 | ||||
| 91655-60620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(8009-8208)DLX,GL,GT,LE,STD ; (8208- )GX6#,SX60,TX67..DLX,GL,LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22090 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45240-22070 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
2 | ||
| 90369-43001 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
2 | ||
| 90369-43001 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30050 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45242-22040 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22071 |
GX60,LX6#,MX60,RX60,TX6#..DLX,GL,LE,STD |
1 | ||
| 45301-22070 |
GX60,LX6#,MX60,RX60,TX6#..DLX,GL,LE,STD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-22090 |
GX60,LX6#,MX60,RX60,TX6#..DLX,GL,LE,STD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.00,T=2.00 |
1 | ||
| 45352-14020 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.04,T=2.04 |
1 | ||
| 45352-14060 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.20,T=2.20 |
1 | ||
| 45352-14040 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.12,T=2.12 |
1 | ||
| 45352-14050 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.16,T=2.16 |
1 | ||
| 45352-14030 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD 厚さ=2.08,T=2.08 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-29165 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GT,LE,STD |
1 | ||
| Common parts | ||||
| 82711-22490 | ||||
| 90105-12003 | ||||
| 91611-60820 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 3(8009-8208)TX60..GL ; (8009-8208)GX6#,LX6#,MX6#,RX60 ; (8208- )SX60..GL,GR,STD ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22050 |
GX6#,LX6#,MX6#,RX60,TX60 |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-22010 |
GX6#,LX6#,MX6#,RX60,TX60 |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 91611-40610 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03020 | ||||
ILLUST NO. 3 OF 3(8009-8208)GX6#,LX6#,MX6#,RX60 ; (8009-8209)TX60..GL ; (8208- )SX60..GL,GR,STD ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94521-00500 | ||||
ILLUST NO. 1 OF 3(8009- )LX60,67,SX60..DLX,STD ; (8009- )3FC,4F,4HC..DLX,GD,LG,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STRG |
1 | ||
| 45210-22060 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,W/TILT STEERING |
1 | ||
| 90363-18001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 厚さ=1.20,T=1.2 |
1 | ||
| 90520-17196 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) 厚さ=1.35−1.45,T=1.4 |
1 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22090 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45870-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LX60,67,MX60,SX60,TX6#..DLX,STD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22211 |
TX67..DLX,GL;GX6#,LX6#,MX60,61,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45280-30200 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2220001 |
LX6#,MX60,TX6#..DLX,STD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45286-2225006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45286-2229001 |
LX6#,MX60,TX6#..DLX,STD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2225004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F UPR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217001 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLACK,W/TILT STRG,BLACK,TRIM2# |
1 | ||
| 45287-2217004 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,BLUE,W/TILT STRG,BLUE,TRIM8# |
1 | ||
| 45287-2217006 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-22100 |
LX60,67,SX60..DLX,STD;GX6#,MX60,TX6#..(3FC,4F,4HC)..(DLX,GD,LG,STD) |
1 | ||
| 45082-22030 |
TX67..DLX,GL;GX6#,LX6#,MX6#,RX6#,TX60..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LX6#,MX60,TX6#..DLX,STD |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91655-40618 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
