TX60-XEKNS (1980)
Toyota Mark 2
Production
Sep 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)MX60,RX60,TX60 ; (8208- )DLX,GL,STD

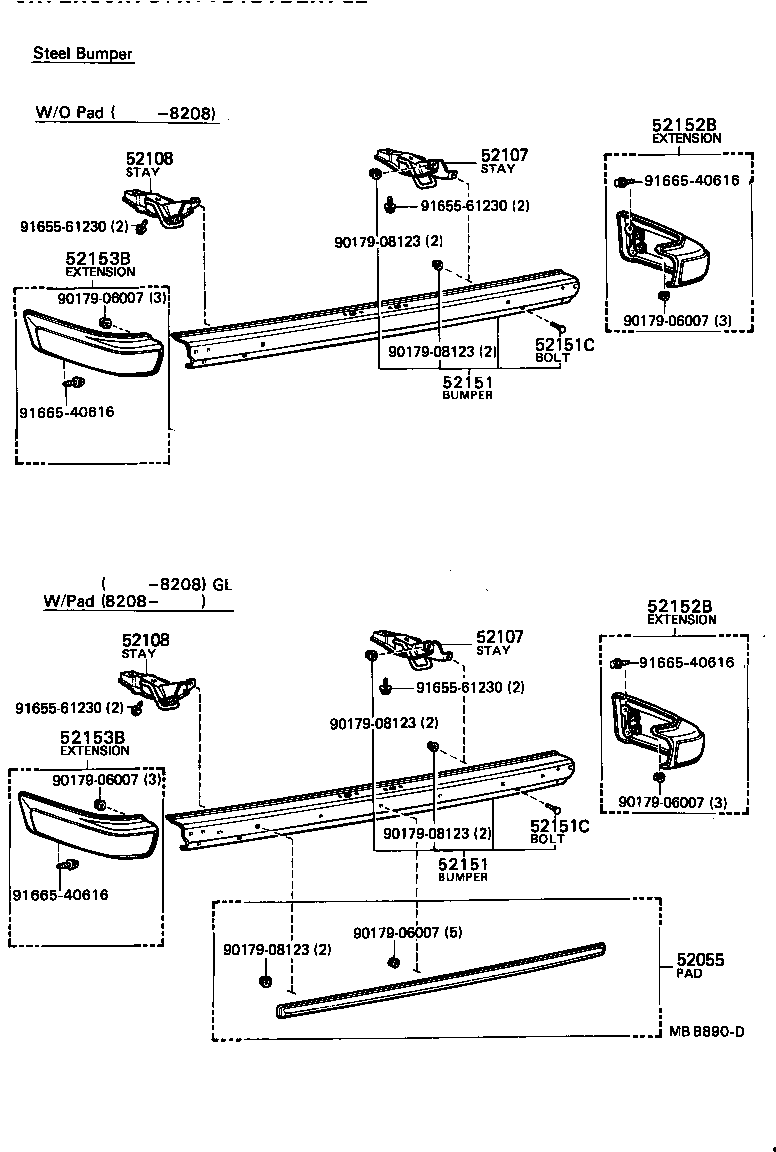

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52055 - PAD SUB-ASSY, REAR BUMPER | ||||
| 52055-29065 |
TX6#..GL |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22010 |
LX60,MX60,SX60,TX60..DLX,GL,STD |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22010 |
LX60,MX60,SX60,TX60..DLX,GL,STD |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22010 |
LX60,MX60,SX60,TX60..DLX,GL,STD |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22010 |
LX60,MX60,SX60,TX60..DLX,GL,STD |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29385 |
LX60,TX60..GL |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29385 |
LX60,TX60..GL |
1 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
LX60,67,MX60,SX60,TX6#..DLX,GL,STD |
4 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
LX60,67,MX60,SX60,TX6#..DLX,GL,STD |
4 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
LX60,MX60,SX60,TX60..SED..(DLX,GL,STD) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
LX60,MX60,SX60,TX60..SED..(DLX,GL,STD) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
LX60,MX60,SX60,TX60..SED..(DLX,GL,STD) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
LX60,MX60,SX60,TX60..SED..(DLX,GL,STD) |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90179-08123 | ||||
| 91655-61230 | ||||
| 91665-40616 | ||||
