TX60-XEKNS (1980)
Toyota Mark 2
Production
Sep 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )13T#

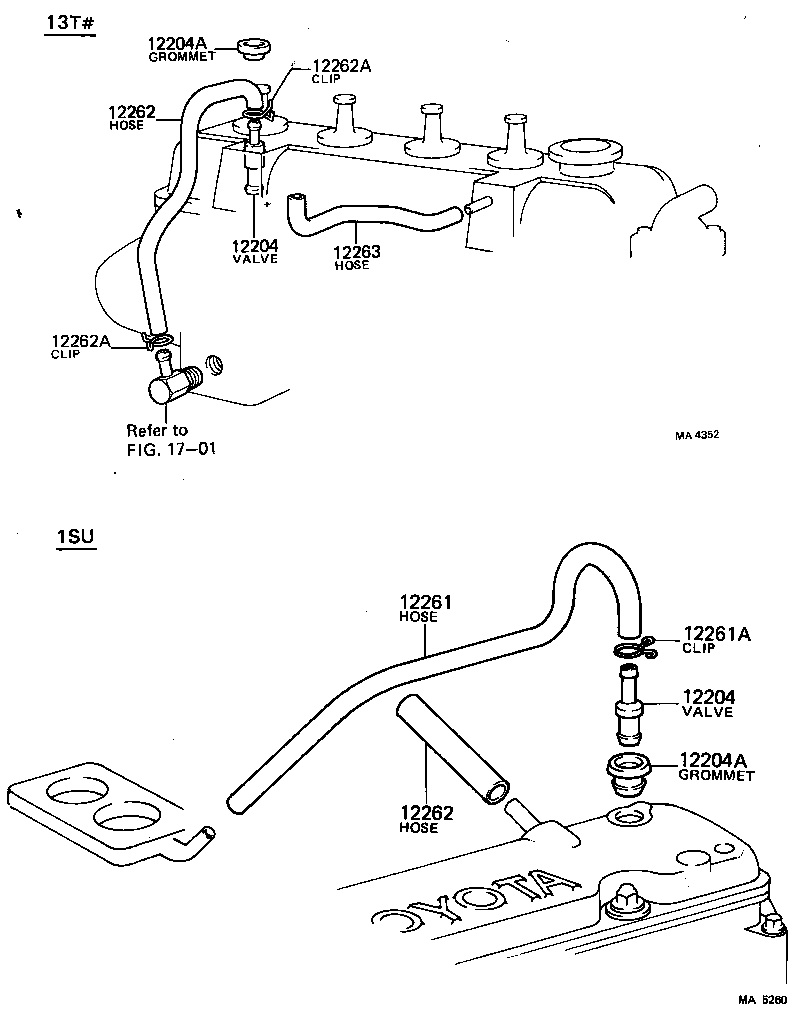

Click highlighted areas on diagram
MA4352,MA5260
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-28010 |
13T#..TX6# |
1 | ||
| 12204-28010 |
13T#..TX6# |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-28010 |
13T#..TX6# |
1 | ||
| 12204-28010 |
13T#..TX6# |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18180 |
13T#..TX6# |
1 | ||
| 90480-18180 |
13T#..TX6# |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18180 |
13T#..TX6# |
1 | ||
| 90480-18180 |
13T#..TX6# |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12261-25012 |
13T#..TX6# |
1 | ||
| 12261-25012 |
13T#..TX6# |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12261-25012 |
13T#..TX6# |
1 | ||
| 12261-25012 |
13T#..TX6# |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
13T#..TX6# |
2 | ||
| 90467-16010 |
13T#..TX6# |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
13T#..TX6# |
2 | ||
| 90467-16010 |
13T#..TX6# |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 90445-20012 |
13T#..TX6# |
1 | ||
| 90445-20012 |
13T#..TX6# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
(8009- )L,2LTE
Click highlighted areas on diagram
MA3067,MA5885
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12261-25012 |
13T#..TX6# |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
13T#..TX6# |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
13T#..TX6# |
2 | ||
