Toyota Mark 2 SX90 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85385-22010E0	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO LIGHT BEIGE M M,4M7	10/1992 - 06/1993	2
85385-22010B0	GX90,JZX9#,LX90,SX90 DARK BLUEISH GRAY M,183	10/1992 - 06/1993	2
85385-22010A0	GX90,JZX9#,LX90,SX90 SUPER WHITE 2,040	10/1992 - 06/1993	2
85385-22020E0	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO LIGHT BEIGE M M,4M7	06/1993 - 09/1996	2
85385-30010B0	GX90,JZX9#,LX90,SX90 DK.BL.GRAY ME,183	06/1993 - 09/1994	2
85385-22010E1	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO DK BROWN MC,4N2	09/1994 - 09/1996	2
85385-22020A0	GX90,JZX9#,LX90,SX90 SUPER WHITE 2,040	06/1993 - 09/1996	2
85035 - NOZZLE SUB-ASSY, WASHER
85385-22010E0	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO LIGHT BEIGE M M,4M7	10/1992 - 06/1993	2
85385-22010B0	GX90,JZX9#,LX90,SX90 DARK BLUEISH GRAY M,183	10/1992 - 06/1993	2
85385-22010A0	GX90,JZX9#,LX90,SX90 SUPER WHITE 2,040	10/1992 - 06/1993	2
85385-22020E0	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO LIGHT BEIGE M M,4M7	06/1993 - 09/1996	2
85385-30010B0	GX90,JZX9#,LX90,SX90 DK.BL.GRAY ME,183	06/1993 - 09/1994	2
85385-22010E1	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO DK BROWN MC,4N2	09/1994 - 09/1996	2
85385-22020A0	GX90,JZX9#,LX90,SX90 SUPER WHITE 2,040	06/1993 - 09/1996	2
85301 - INLET SUB-ASSY, WASHER
85301-22020	JZX9#,LX90,SX90	10/1992 - 09/1996	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-22200	JZX9#,LX90,SX90	10/1992 - 09/1996	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160	JZX9#,LX90,SX90	10/1992 - 09/1996	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122	JZX90,93,SX90..GD,GL,GRO,TOUS	09/1994 - 09/1996	2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260	JZX90,93,LX90,SX90	10/1992 - 09/1994	1
85375-10260	JZX9#,LX90,SX90	09/1994 - 09/1996	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-22520	GX90,JZX90,93,SX90..GD,GL,GRO,TOUS	09/1994 - 09/1996	1
85348-14390	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
85348-14390	GX90,JZX93,SX90..GD,GL,GRO ｱﾘ(ABS)	09/1994 - 09/1996	1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	2
85349-89122	JZX91;JZX90,93,SX90..GD,GL,GRO,TOUS	09/1994 - 09/1996	2
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	2
85349-89122	JZX91;JZX90,93,SX90..GD,GL,GRO,TOUS	09/1994 - 09/1996	2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299	JZX9#,LX90,SX90 長さ=1000	10/1992 - 09/1996	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299	JZX9#,LX90,SX90 長さ=1000	10/1992 - 09/1996	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	JZX90,93,LX90,SX90 L=1450	10/1992 - 09/1996	1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33077	GX90,JZX9#,LX90,SX90 長さ=450	10/1992 - 09/1994	1
90099-33077	GX90,JZX93,SX90..GD,GL,GRO 長さ=450	09/1994 - 09/1996	1
90099-33299	GX90,JZX90,93,SX90..GD,GL,GRO,TOUS 長さ=1000	09/1994 - 09/1996	1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080	JZX9#,LX90,SX90 L=1450	10/1992 - 09/1994	1
90099-33080	GX90,JZX93,SX90..GD,GL,GRO L=1450	09/1994 - 09/1996	1
90099-33299	GX90,JZX90,93,SX90..GD,GL,GRO,TOUS 長さ=1000	09/1994 - 09/1996	1
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33299	GX90,JZX90,93,SX90..GD,GL,GRO,TOUS 長さ=1000	09/1994 - 06/1995	1
90099-33080	GX90,JZX93,SX90..GD,GL,GRO L=1450	09/1994 - 09/1996	1
90099-33080	GX90,JZX9#,LX90,SX90 L=1450	10/1992 - 09/1994	1
90099-33299	GX90,JZX90,93,SX90..GD,GL,GRO,TOUS 長さ=1000	06/1995 - 09/1996	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	GX90,JZX9#,LX90,SX90 L=1450	10/1992 - 09/1994	2
90099-33080	JZX90,93,LX90,SX90 L=1450	09/1994 - 09/1996	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	GX90,JZX9#,LX90,SX90 L=1450	10/1992 - 09/1994	2
90099-33080	JZX90,93,LX90,SX90 L=1450	09/1994 - 09/1996	2
Common parts
82711-1A190
85387-22410
85387-22420
90099-04455
90119-06450
90119-06451
90179-06026
90950-01731

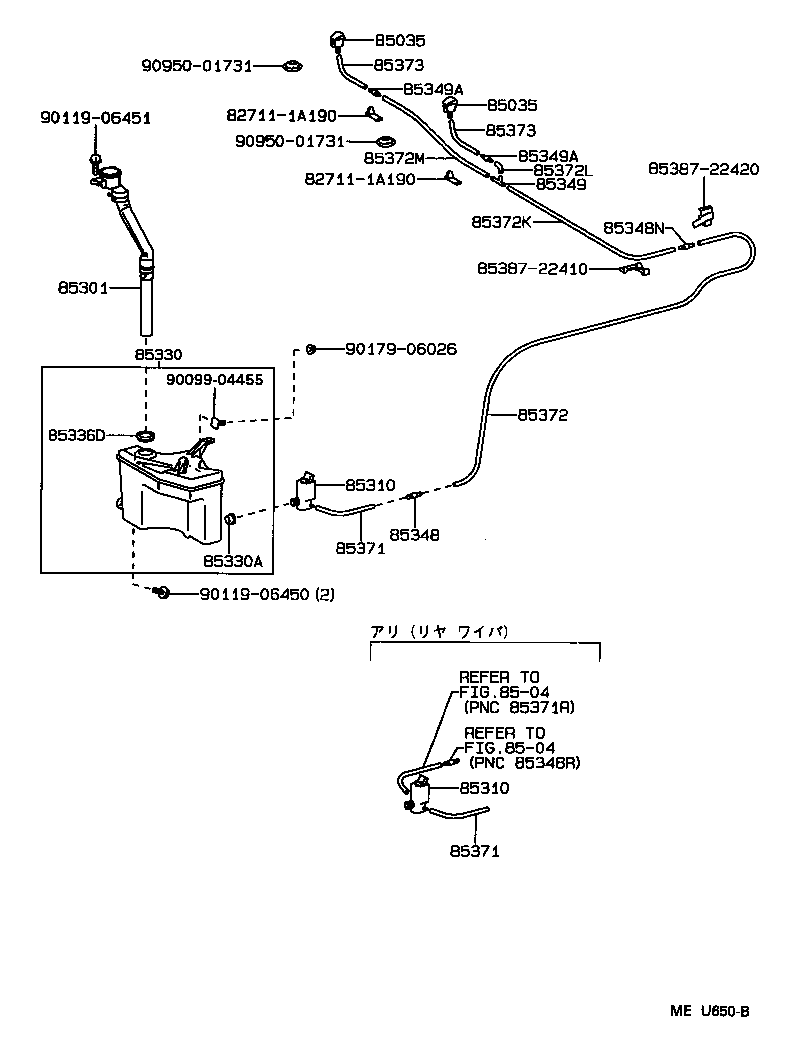

Linked diagrams
8504

SX90-ATPNK (1992)

(9210- )GX90,JZX90,93,LX90,SX90
