SX90-ATPEK (1992)

Toyota Mark 2

Production Oct 1992 - Sep 1996
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

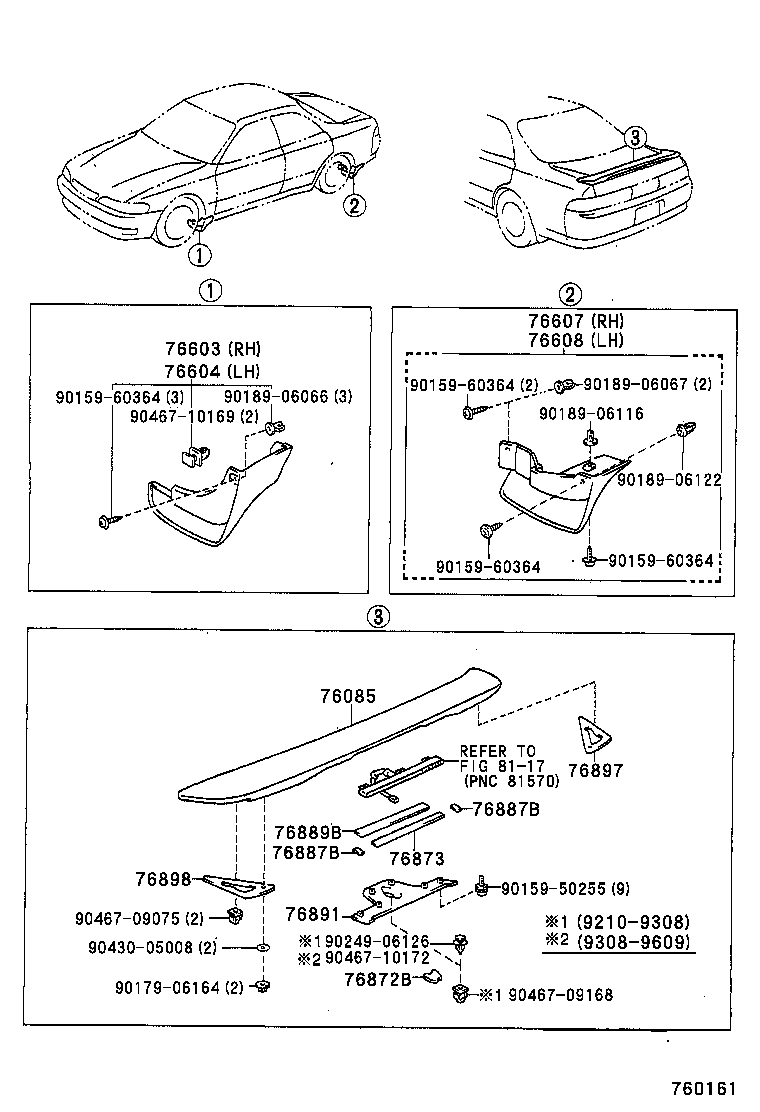

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76872B 76873 76887B 76887B 76889B 76891 76897 76898 8117 9015950255 9015960364 9015960364 9015960364 9015960364 9017906164 9018906066 9018906067 9018906116 9018906122 9024906126 9043005008 9046709075 9046709168 9046710169 9046710172
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-29275

GX90,JZX9#,LX90,SX90

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-29275

GX90,JZX9#,LX90,SX90

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29155

GX90,JZX9#,LX90,SX90

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29155

GX90,JZX9#,LX90,SX90

 1
Common parts
90159-50255
90159-60364
90179-06164
90189-06066
90189-06067
90189-06116
90189-06122
90249-06126
90430-05008
90467-09075
90467-09168
90467-10169
90467-10172
Linked diagrams
8117
