Toyota Mark 2 SX80 VENTILATION HOSE

SX80Y-AEPRK (1990)

Toyota Mark 2

Production Aug 1990 - Dec 1995

Engine 4SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

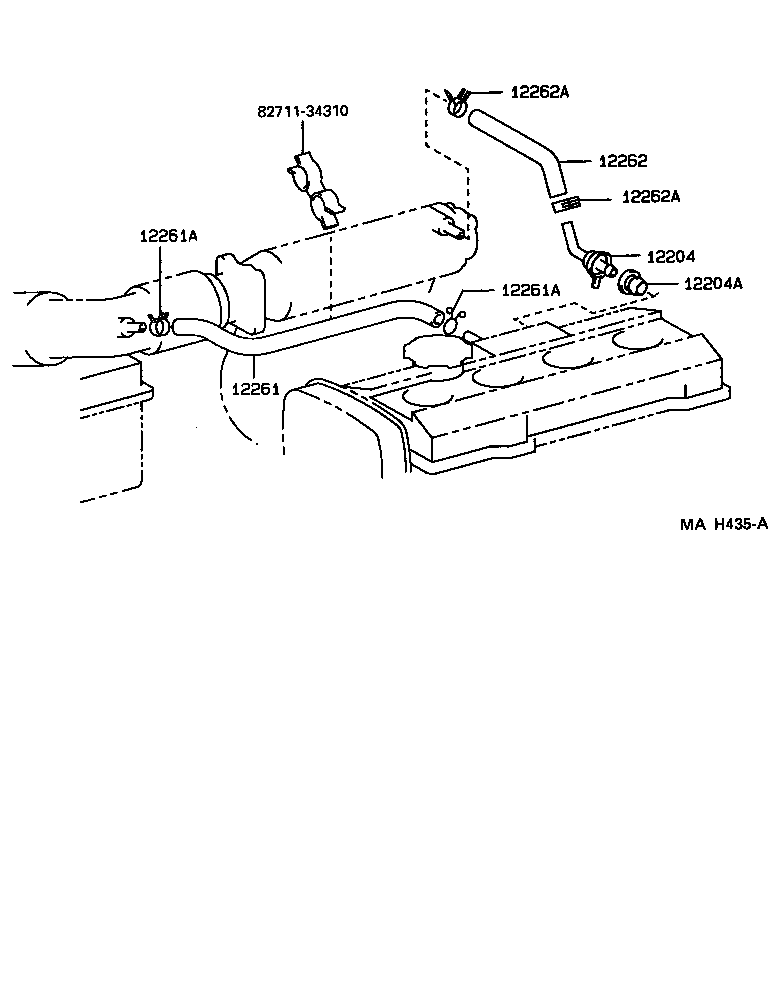

(9409- )4SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-74020	4SFE..SX80	09/1994 - 12/1995	1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001	4SFE..SX80	09/1994 - 12/1995	1
12261 - HOSE, VENTILATION
12261-74080	4SFE..SX80	08/1990 - 10/1992	1
12261-74080	4SFE..SX80	05/1993 - 09/1994	1
12261-74100	4SFE..SX80	09/1994 - 12/1995	1
12261-74080	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001	4SFE..SX80 HEAD COVER SIDE	09/1994 - 12/1995	1
90467-15016	4SFE..SX80 AIR CLEANER SIDE	09/1994 - 12/1995	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001	4SFE..SX80 HEAD COVER SIDE	09/1994 - 12/1995	1
90467-15016	4SFE..SX80 AIR CLEANER SIDE	09/1994 - 12/1995	1
12262 - HOSE, VENTILATION, NO.2
12262-74060	4SFE..SX80	08/1990 - 10/1992	1
12262-74070	4SFE..SX80	09/1994 - 12/1995	1
12262-74060	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12262-74060	4SFE..SX80	05/1993 - 09/1994	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2
Common parts
82711-34310

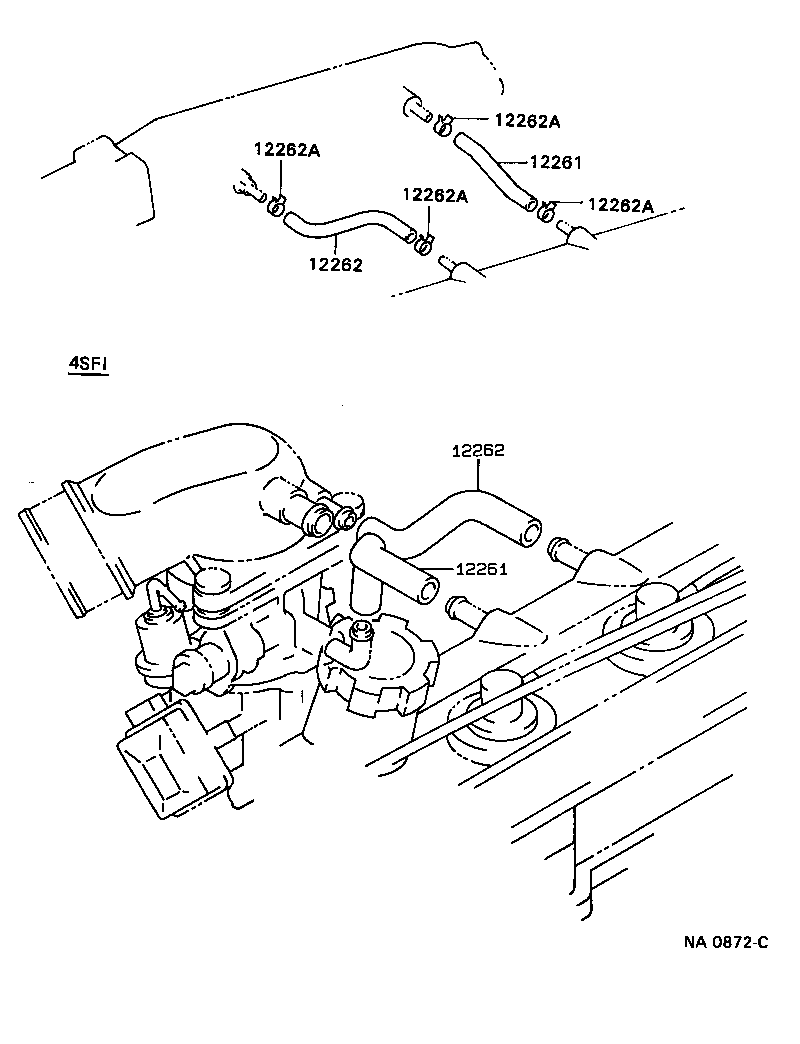

(8808-9409)4SF#

Click highlighted areas on diagram

Part #	Description	Period	Qty
12261 - HOSE, VENTILATION
12261-74080	4SFE..SX80	08/1990 - 10/1992	1
12261-74080	4SFE..SX80	05/1993 - 09/1994	1
12261-74100	4SFE..SX80	09/1994 - 12/1995	1
12261-74080	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12261 - HOSE, VENTILATION
12261-74080	4SFE..SX80	08/1990 - 10/1992	1
12261-74080	4SFE..SX80	05/1993 - 09/1994	1
12261-74100	4SFE..SX80	09/1994 - 12/1995	1
12261-74080	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12262 - HOSE, VENTILATION, NO.2
12262-74060	4SFE..SX80	08/1990 - 10/1992	1
12262-74070	4SFE..SX80	09/1994 - 12/1995	1
12262-74060	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12262-74060	4SFE..SX80	05/1993 - 09/1994	1
12262 - HOSE, VENTILATION, NO.2
12262-74060	4SFE..SX80	08/1990 - 10/1992	1
12262-74070	4SFE..SX80	09/1994 - 12/1995	1
12262-74060	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	1
12262-74060	4SFE..SX80	05/1993 - 09/1994	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15016	4SFE..SX80	08/1990 - 10/1992	4
90467-15016	4SFE..SX80..4FC..KYO;4SFE..SX80..GL,GR,STD	10/1992 - 05/1993	4
90467-15016	4SFE..SX80	09/1994 - 11/1995	2
90467-15016	4SFE..SX80	05/1993 - 09/1994	4
90467-15022	4SFE..SX80	11/1995 - 12/1995	2

SX80Y-AEPRK (1990)

(9409- )4SFE

(8808-9409)4SF#
