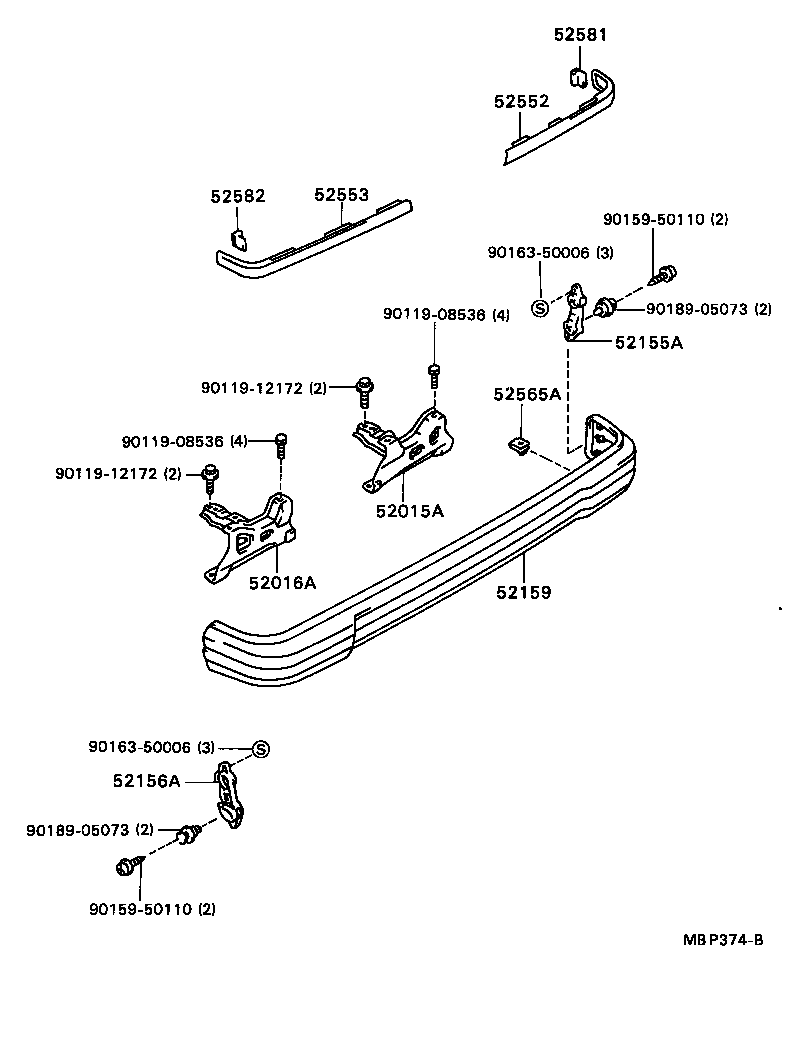

SX80Y-AEMRM (1988)
Toyota Mark 2
(8808- )
ｱﾘ(P.P. ﾊﾞﾝﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22100 |
LX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,HTWC,TD) |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22060 |
LX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,HTWC,TD) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22120 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22120 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22130 |
YX80;LX80,SX80..KYO,STD |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22160 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52156-22160 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22130 |
YX80;LX80,SX80..KYO,STD |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22360 |
LX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,TD) ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52159-2235008 |
YX80;LX80,SX80..KYO SUPER WHITE 4,050,ﾀｲﾌﾟ A |
1 | ||
| 52159-22420 |
YX80;LX80,SX80..KYO,STD ｱﾘ(P.Pﾊﾞﾝﾊﾟ) |
1 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22041 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-12040 |
YX80;LX80,SX80..KYO,STD |
4 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52581-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| Common parts | ||||
| 90119-08536 | ||||
| 90119-12172 | ||||
| 90159-50110 | ||||
| 90163-50006 | ||||
| 90189-05073 | ||||

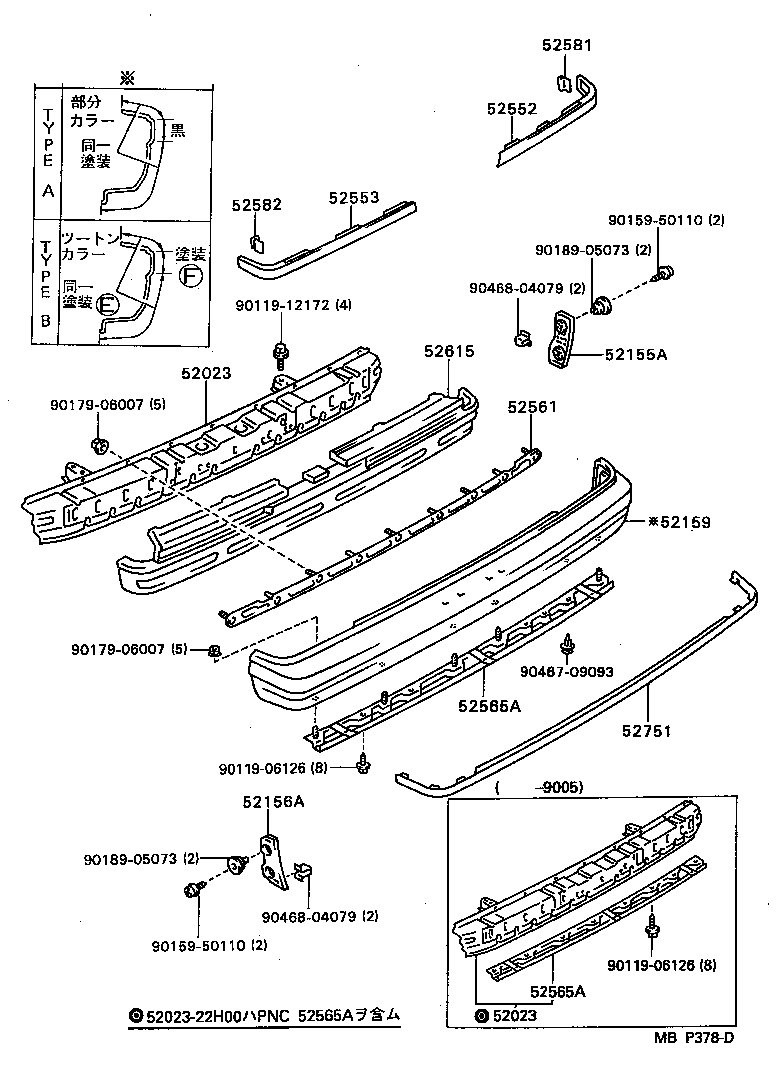

(8808-9008)
ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22140 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22140 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22120 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22120 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22130 |
YX80;LX80,SX80..KYO,STD |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22160 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52156-22160 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52155-22130 |
YX80;LX80,SX80..KYO,STD |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22360 |
LX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,TD) ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52159-2235008 |
YX80;LX80,SX80..KYO SUPER WHITE 4,050,ﾀｲﾌﾟ A |
1 | ||
| 52159-22420 |
YX80;LX80,SX80..KYO,STD ｱﾘ(P.Pﾊﾞﾝﾊﾟ) |
1 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22041 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-12040 |
YX80;LX80,SX80..KYO,STD |
4 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22041 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-12040 |
YX80;LX80,SX80..KYO,STD |
4 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52565-22040 |
YX80;LX80,SX80..KYO,STD ｱﾘ(ｳﾚﾀﾝ ﾊﾞﾝﾊﾟ) |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52581-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22090 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-22100 |
GX81,LX80,SX80,YX80 ﾌﾞﾗｯｸ |
1 | ||
| 52751-22101 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT BLACK |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90119-12172 | ||||
| 90159-50110 | ||||
| 90179-06007 | ||||
| 90189-05073 | ||||
| 90467-09093 | ||||
| 90468-04079 | ||||
