SX80-AEPNM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

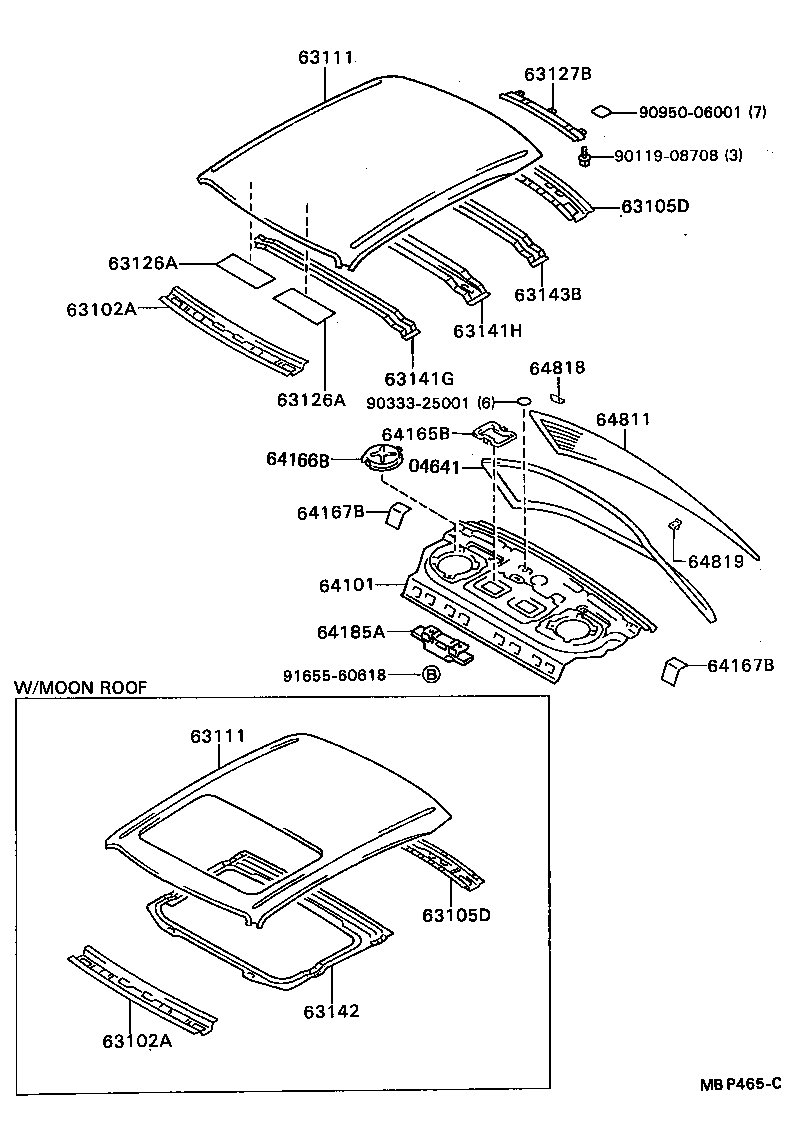

Click highlighted areas on diagram

diagram 04641 63102A 63102A 63105D 63105D 63111 63111 63126A 63126A 63127B 63141G 63141H 63142 63143B 64101 64165B 64166B 64167B 64167B 64185A 64811 64818 64819 9011908708 9033325001 9095006001 9165560618
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

GX81,LX80,MX83,SX80,YX80

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-22150

LX80,SX80..GL,STD

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-22150

LX80,SX80..GL,STD

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-22020

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-22020

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63111 - PANEL, ROOF
63111-22170

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63111 - PANEL, ROOF
63111-22170

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
63127B - DAMPER, BACK WINDOW UPPER FREME
63127-22010

GX81,LX80,MX83,SX80,YX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,LPG,SPC,TD,TWC,TWT)

 1
63127-22010

GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG,STD

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63143-22100

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63103-22120

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-22100

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-22280

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 2
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-22040

GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD

 2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-22040

GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)

 2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-22040

GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)

 2
64185A - DAMPER, UPPER BACK, NO.1
64185-22010

GX81,JZX81,SX80..(GL,GR,GT,STD)..(CI,TWT)

 1
64811 - GLASS, BACK WINDOW
64811-22630

GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG)

*EHTT,厚さ=3.5

 1
64818 - SPACER, BACK WINDOW GLASS
64818-22070

GX81,JZX81,LX80,MX83,SX80,YX80

ORANGE

 9
64818-22060

GX81,JZX81,LX80,MX83,SX80,YX80

GREEN

 9
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-22040

GX81,JZX81,LX80,MX83,SX80,YX80

 4
Common parts
90119-08708
90333-25001
90950-06001
91655-60618

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 6101 6101 63201G 63203F 63207 63208 63209 63214F 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63251H 63255 63256 63258C 63260A 63265B 63277C 63277C 63635A 63699A 9014940019 9015960080 9015960219 9015960348 9015960348 9016250004 9016250004 9016250004 9016840046 9016850063 9017906070 9017906115 9017906167 9018904014 9018906043 9033330002 9046312014 9046714001 9046714001 9046804128 9616000400
Part # Description Qty Price
Common parts
90149-40019
90159-60080
90159-60219
90159-60348
90162-50004
90168-40046
90168-50063
90179-06070
90179-06115
90179-06167
90189-04014
90189-06043
90333-30002
90463-12014
90467-14001
90468-04128
96160-00400
Linked diagrams
6101
