SX80-AEPNM (1988)
Toyota Mark 2
Production
Aug 1988
-
Aug 1990
Engine
4SFI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SED

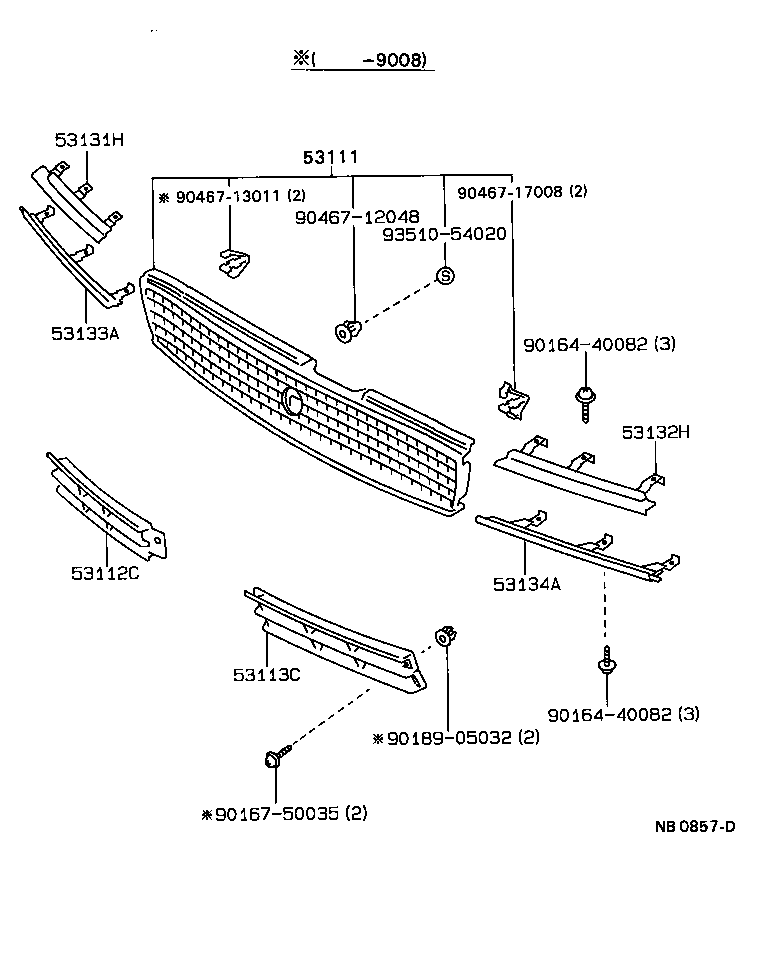

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-22180 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-22090 |
GX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-22080 |
GX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
1 | ||
| 53131H - DOOR, HEADLAMP, UPPER RH | ||||
| 53131-22340 |
GX81,LX80,MX83,SX80,YX80..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 53131-22320 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 53132H - DOOR, HEADLAMP, UPPER LH | ||||
| 53132-22300 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 53132-22320 |
GX81,LX80,MX83,SX80,YX80..SED ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 53133A - DOOR, HEADLAMP, LOWER RH | ||||
| 53133-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 53134A - DOOR, HEADLAMP, LOWER LH | ||||
| 53134-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| Common parts | ||||
| 90164-40082 | ||||
| 90167-50035 | ||||
| 90189-05032 | ||||
| 90467-12048 | ||||
| 90467-13011 | ||||
| 90467-17008 | ||||
| 93510-54020 | ||||
