SX80-AEPEM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

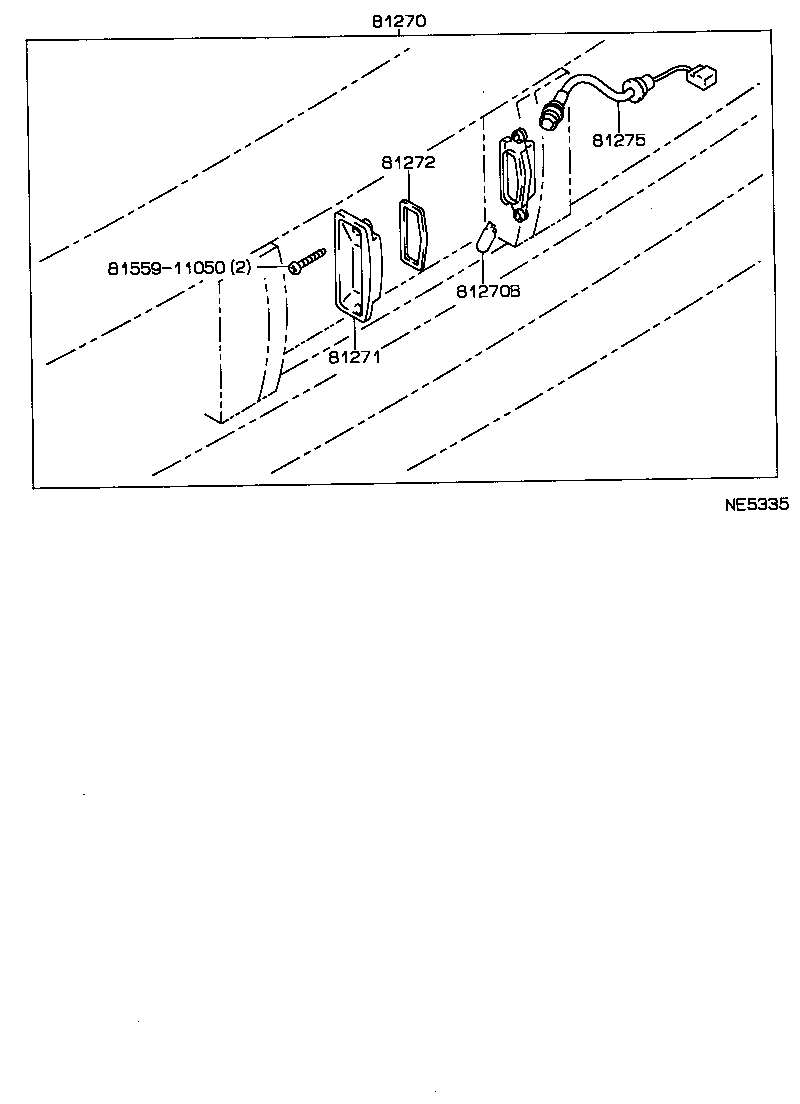

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81275 8155911050
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-22230

YX80..KYO;GX81,LX80,MX83,SX80

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX81,JZX81,LX80,MX83,SX80,YX80

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22230

GX81,LX80,MX83,SX80,YX80

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22230

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-22230

GX81,LX80,MX83,SX80,YX80

 2
Common parts
81559-11050
