SX80-AEPEM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SED

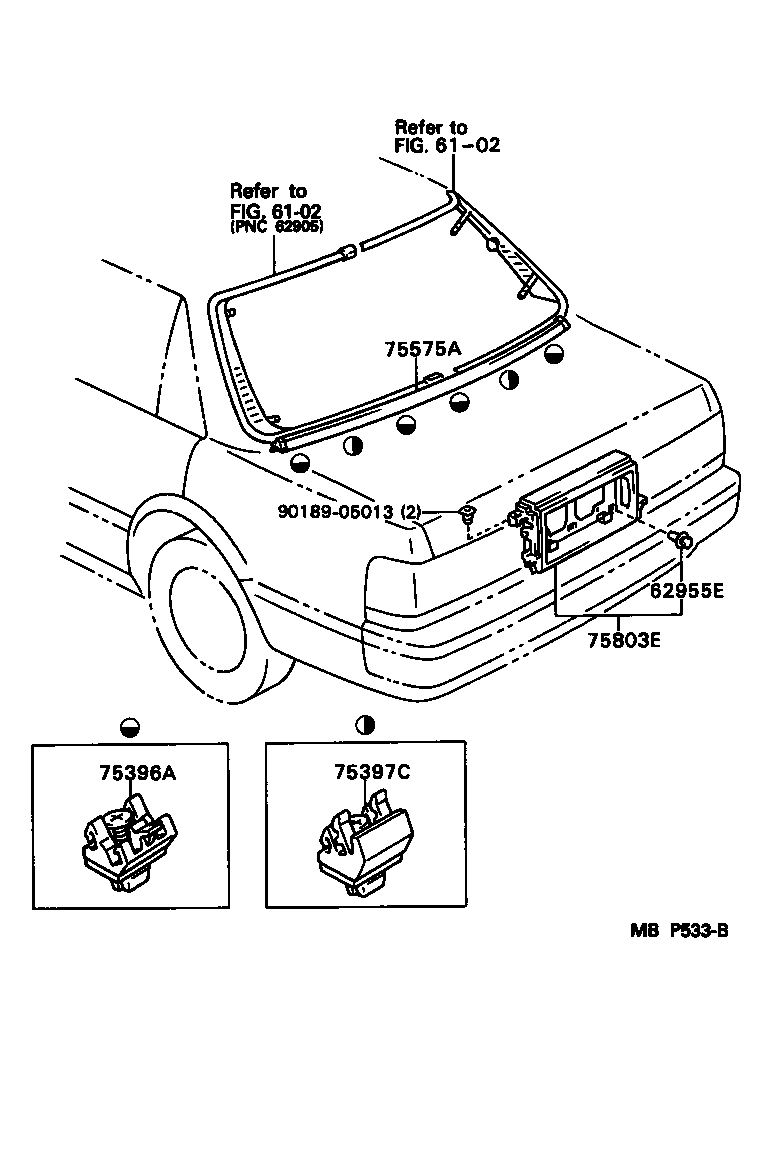

Click highlighted areas on diagram

diagram 6102 6102 62955E 75396A 75397C 75575A 75803E 9018905013
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GX81,JZX81,LX80,MX83,SX80,YX80

 5
75396A - CLIP, OUTSIDE MOULDING, NO.2
75396-22060

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 4
75397C - CLIP, OUTSIDE MOULDING, NO.3
75397-22100

GX81,JZX81,LX80,MX83,SX80,YX80..SED

ﾚｯﾄﾞ

 2
75397-22040

GX81,JZX81,LX80,MX83,SX80,YX80..SED

ﾌﾞﾗｯｸ

 2
75397-22090

GX81,JZX81,LX80,MX83,SX80,YX80..SED

GRAY

 2
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-22110

GX81,LX80,SX80,YX80..SED

 1
75803E - MOULDING SUB-ASSY, LOWER BACK PANEL
75803-22190

GX81,LX80,MX83,SX80,YX80..SED

 1
Common parts
90189-05013
Linked diagrams
6102
