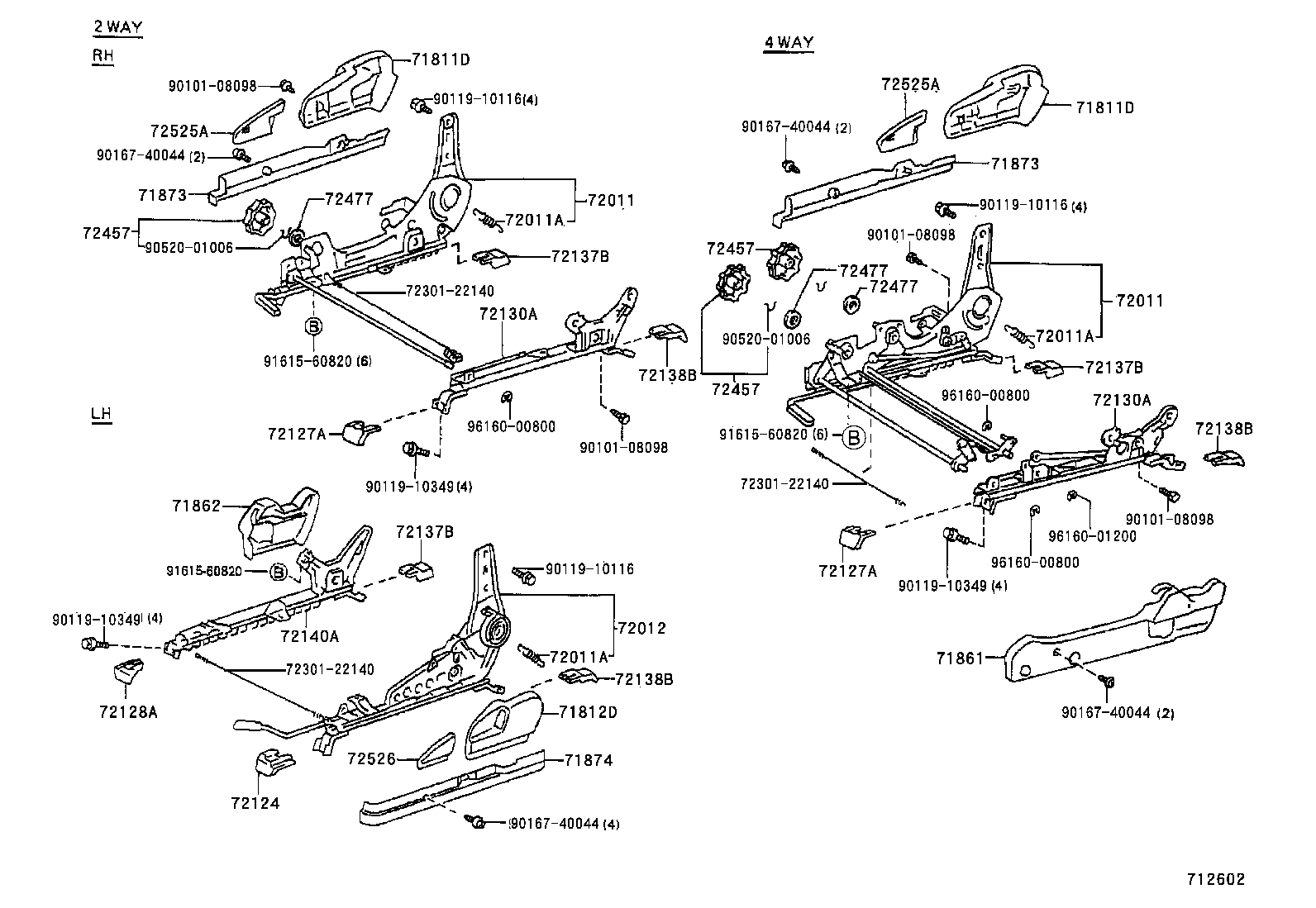

SX80-AEPEM (1988)
Toyota Mark 2
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2220006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71811-2220004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2220006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71811-2220004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2215004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 71812-2215002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71812-2215006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2206006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4#,8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2207004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2201004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2201004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71874-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71874-2201004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22120 |
GX81,LX80,SX80..GL,GR,LG,STD |
1 | ||
| 72010-22130 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22120 |
GX81,LX80,SX80..GL,GR,LG,STD |
1 | ||
| 72010-22130 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22090 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72124-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72124-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72128-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22280 |
GX81,LX80,SX80..GL,GR,LG,STD |
1 | ||
| 72130-22290 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22280 |
GX81,LX80,SX80..GL,GR,LG,STD |
1 | ||
| 72130-22290 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM3#,4# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM3#,4# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM3#,4# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-22220 |
YX80..KYO;GX81,LX80,SX80 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 72457-2202004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD DARK BLUE,TRIM8# |
1 | ||
| 72457-2202006 |
GX81,LX80,SX80,YX80..GL,GR,LG SABLE,TRIM4# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 72457-2202004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD DARK BLUE,TRIM8# |
1 | ||
| 72457-2202006 |
GX81,LX80,SX80,YX80..GL,GR,LG SABLE,TRIM4# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 72457-2202004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD DARK BLUE,TRIM8# |
1 | ||
| 72457-2202006 |
GX81,LX80,SX80,YX80..GL,GR,LG SABLE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72525-2202002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72525-2202002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72526-2202004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72526-2202002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 72301-22140 | ||||
| 90101-08098 | ||||
| 90119-10116 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91615-60820 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

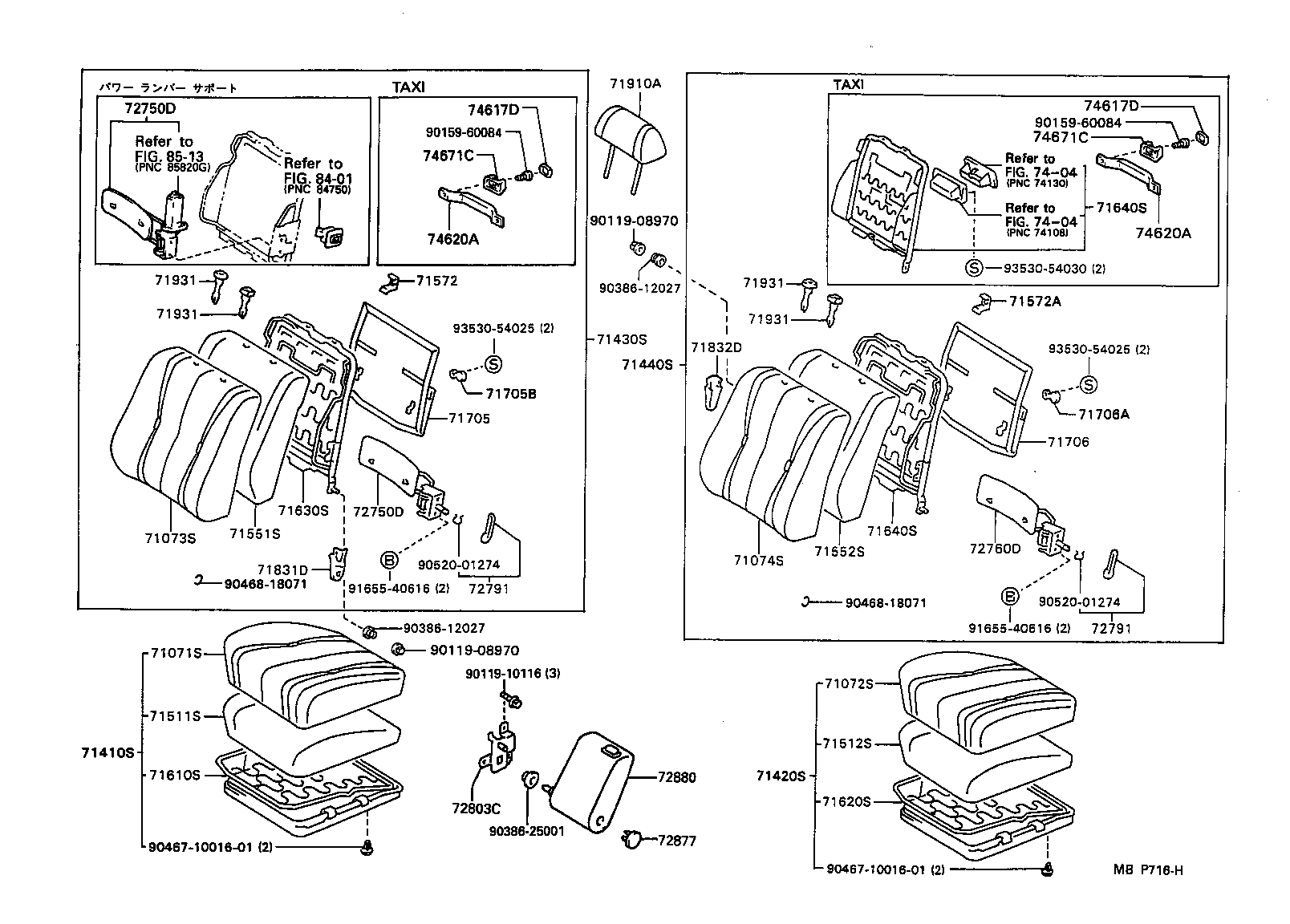

(8808- )CI,DSL,HTWC,LPG,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2A34004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71071-2A34006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71071-2A35002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71071-2A35004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71071-2A35006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71071-2A34002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2281006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71072-2281004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71072-2282006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71072-2282002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71072-2282004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71072-2281002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A67006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71073-2A67004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71073-2A68002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71073-2A68004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71073-2A68006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71073-2A67002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A67004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71073-2A67006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71074-2A17002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71074-2A17004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71074-2A17006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71073-2A67002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2A51006 |
GX81,LX80,SX80..GR,LG ***,SABLE,TRIM4# |
1 | ||
| 71410-2A51004 |
GX81,LX80,SX80..GR,LG ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-2A78002 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71410-2A78006 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71410-2A78004 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71410-2A51002 |
GX81,LX80,SX80..GR,LG ***,NEW MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A10004 |
GX81,LX80,SX80..GR,LG ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2A10006 |
GX81,LX80,SX80..GR,LG ***,SABLE,TRIM4# |
1 | ||
| 71420-2A31004 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71420-2A10002 |
GX81,LX80,SX80..GR,LG ***,NEW MAROON,TRIM3# |
1 | ||
| 71420-2A31002 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71420-2A31006 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C02006 |
GX81,LX80,SX80..GR,LG ***,SABLE,TRIM4# |
1 | ||
| 71430-2C02004 |
GX81,LX80,SX80..GR,LG ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2C02002 |
GX81,LX80,SX80..GR,LG ***,NEW MAROON,TRIM3# |
1 | ||
| 71430-2C03002 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71430-2C03004 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71430-2C03006 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2A83006 |
GX81,LX80,SX80..GR,LG ***,SABLE,TRIM4# |
1 | ||
| 71440-2A83002 |
GX81,LX80,SX80..GR,LG ***,NEW MAROON,TRIM3# |
1 | ||
| 71440-2A84002 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71440-2A83004 |
GX81,LX80,SX80..GR,LG ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-2A84004 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71440-2A84006 |
LX80,SX80..GR ***,ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22400 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22410 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22350 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 71551-22360 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22350 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 71551-22360 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22370 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22130 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22450 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 71630-22490 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22370 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22370 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2225006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71705-2225004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71705-2226006 |
LX80,SX80..SED..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71705-2226002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71705-2226004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71705-2225002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 71788-2201030 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
2 | ||
| 71788-2202004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 71788-2201036 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
2 | ||
| 71788-2202006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71788-2201020 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2225004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
1 | ||
| 71705-2225006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
1 | ||
| 71705-2226006 |
LX80,SX80..SED..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71705-2226004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
1 | ||
| 71705-2226002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
1 | ||
| 71705-2225002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71706A - CAP, FRONT SEAT BACK BOARD | ||||
| 71788-2202004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 71788-2202006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71788-2201036 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
2 | ||
| 71788-2201030 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
2 | ||
| 71788-2201020 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-2204002 |
GX81,LX80,SX80..GD,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC DARK BLUE,TRIM8# |
1 | ||
| 71831-2204006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,LG SABLE,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC DARK BLUE,TRIM8# |
1 | ||
| 71831-2204006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,LG SABLE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2267004 |
GX81,LX80,SX80..GR,LG DARK BLUE,TRIM8# |
2 | ||
| 71910-2267006 |
GX81,LX80,SX80..GR,LG SABLE,TRIM4# |
2 | ||
| 71910-2270006 |
LX80,SX80..GR ｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2270002 |
LX80,SX80..GR ｻﾙ-ﾝ,NEW MAROON,TRIM3# |
2 | ||
| 71910-2270004 |
LX80,SX80..GR ｻﾙ-ﾝ,DARK BLUE,TRIM8# |
2 | ||
| 71910-2267002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22080 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22080 |
LX80,SX80..GR ｻﾙ-ﾝ |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003032 |
LX80,SX80..GR NEW MAROON,TRIM3# |
1 | ||
| 72791-2003016 |
LX80,SX80..GR SABLE,TRIM4# |
1 | ||
| 72791-2003024 |
LX80,SX80..GR DARK BLUE,TRIM8# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003032 |
LX80,SX80..GR NEW MAROON,TRIM3# |
1 | ||
| 72791-2003016 |
LX80,SX80..GR SABLE,TRIM4# |
1 | ||
| 72791-2003024 |
LX80,SX80..GR DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90119-10116 | ||||
| 90159-60084 | ||||
| 90386-12027 | ||||
| 90386-25001 | ||||
| 90467-1001601 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91655-40616 | ||||
| 93530-54025 | ||||
| 93530-54030 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
