SX80-AEPEM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)4SFI

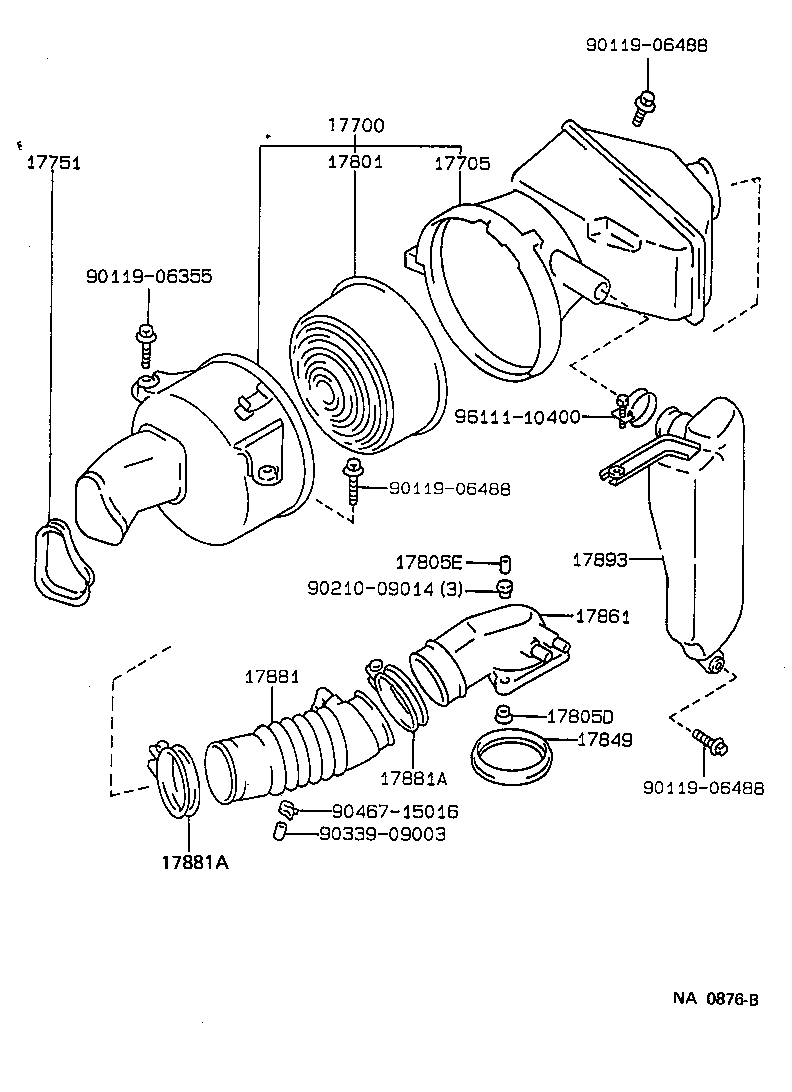

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17805D 17805E 17849 17861 17881 17881A 17881A 17893 9011906355 9011906488 9011906488 9011906488 9021009014 9033909003 9046715016 9611110400
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74220

4SFI..SX80

 1
17700-74290

4SFI..SX80..GL,GR,STD

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74130

4SFI..SX80

 1
17705-74190

4SFI..SX80..GL,GR,STD

 1
17751 - INLET, AIR CLEANER, NO.1
17751-70020

4SF#..SX80

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

4SF#..SX80

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12014

4SFI..SX80

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06046

4SFI..SX80

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-74010

4SFI..SX80

 1
17861 - CONNECTOR, INTAKE AIR
17861-74020

4SFI..SX80

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74240

4SFI..SX80

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..SX80

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFI..SX80

 2
17893 - RESONATOR, INTAKE AIR
17805-74040

4SFI..SX80

 1
Common parts
90119-06355
90119-06488
90210-09014
90339-09003
90467-15016
96111-10400
