SX80-AEPEM (1988)
Toyota Mark 2

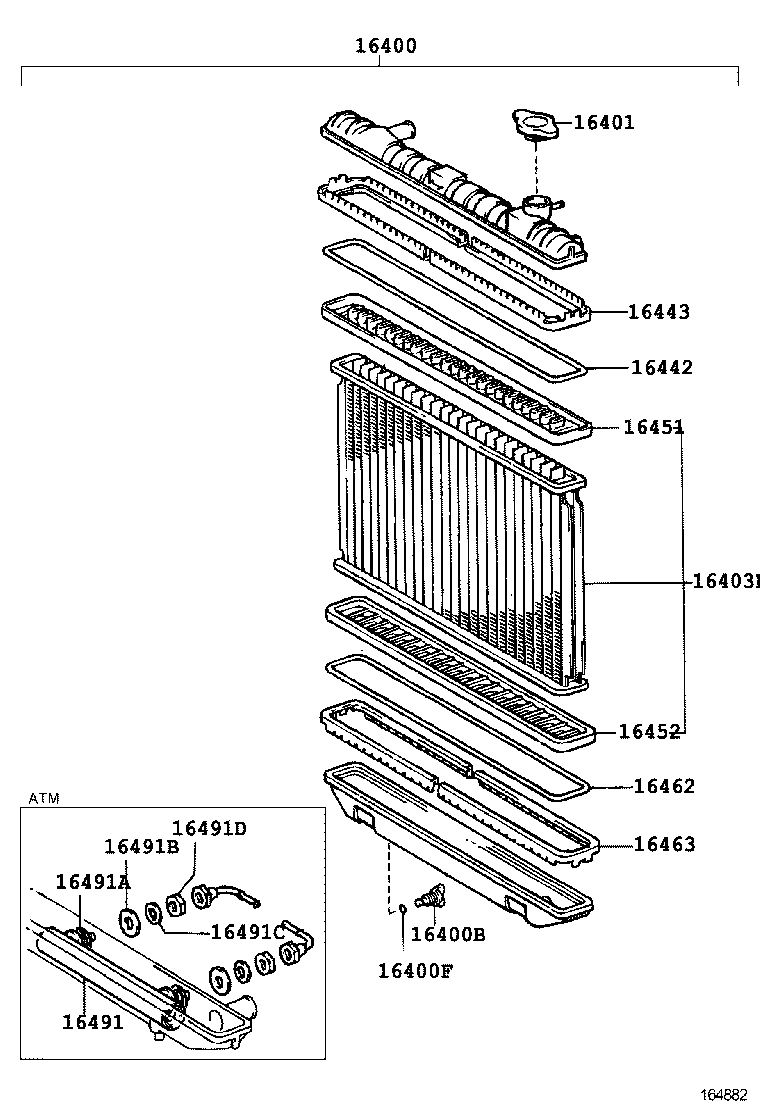

ILLUST NO. 2 OF 2(8808- )4SF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74420 |
4SF#..SX80..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4SF#..SX80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4SF#..SX80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
4SF#..SX80 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-70090 |
4SF#..SX80..4FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
4SF#..SX80 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
4SF#..SX80 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
4SF#..SX80 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
4SF#..SX80 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
4SF#..SX80 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
4SF#..SX80 |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-37171 |
4SF#..SX80..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
4SFI..SX80..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
4SF#..SX80..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
4SF#..SX80..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
4SF#..SX80..4FC |
2 | ||

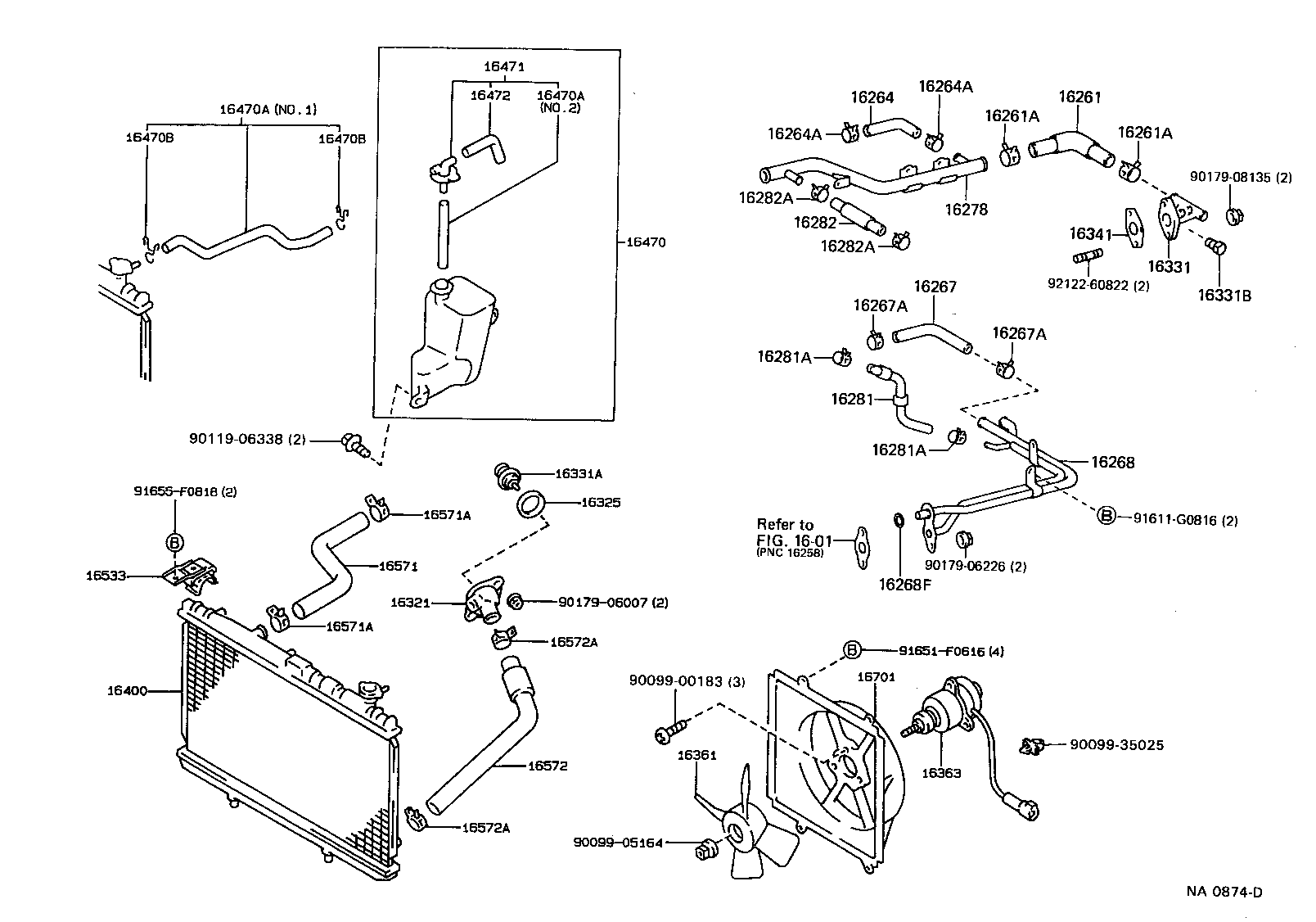

ILLUST NO. 1 OF 2(8808-9008)4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74060 |
4SFI..SX80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-74070 |
4SFI..SX80 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
4SF#..SX80 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
4SF#..SX80 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-74040 |
4SFI..SX80 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22003 |
4SFI..SX80 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22003 |
4SFI..SX80 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74090 |
4SFI..SX80 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
4SF#..SX80 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-74010 |
4SFI..SX80 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-74010 |
4SFI..SX80 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
4SF#..SX80 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
4SF#..SX80 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-74010 |
4SFI..SX80 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13050 |
4SFI..SX80 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13050 |
4SFI..SX80 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88360 |
4SFI..SX80 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4SF#..SX80 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74090 |
4SFI..SX80 |
1 | ||
| 16304-74100 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4SF#..SX80 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
4SFI..SX80 |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
4SF#..SX80..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
4SF#..SX80..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74420 |
4SF#..SX80..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70110 |
4SFI..SX80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4SFI..SX80 長さ=600,NO.2 |
1 | ||
| 16567-54080 |
4SF#..SX80 *H,L=400,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4SFI..SX80 長さ=600,NO.2 |
1 | ||
| 16567-54080 |
4SF#..SX80 *H,L=400,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4SF#..SX80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4SF#..SX80 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70080 |
4SFI..SX80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
4SFI..SX80 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70020 |
4SF#..SX80 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74110 |
4SFI..SX80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74090 |
4SFI..SX80 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
4SF#..SX80 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74190 |
4SF#..SX80..4FC |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90119-06338 | ||||
| 90179-06007 | ||||
| 90179-06226 | ||||
| 90179-08135 | ||||
| 91611-G0816 | ||||
| 91651-F0616 | ||||
| 91655-F0818 | ||||
| 92122-60822 | ||||
| Linked diagrams | ||||
| 1601 | ||||
