SX80-AEMRM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)GL,GR,KYO,LG,STD ; (9008- )LX80,SX80,YX80

Click highlighted areas on diagram

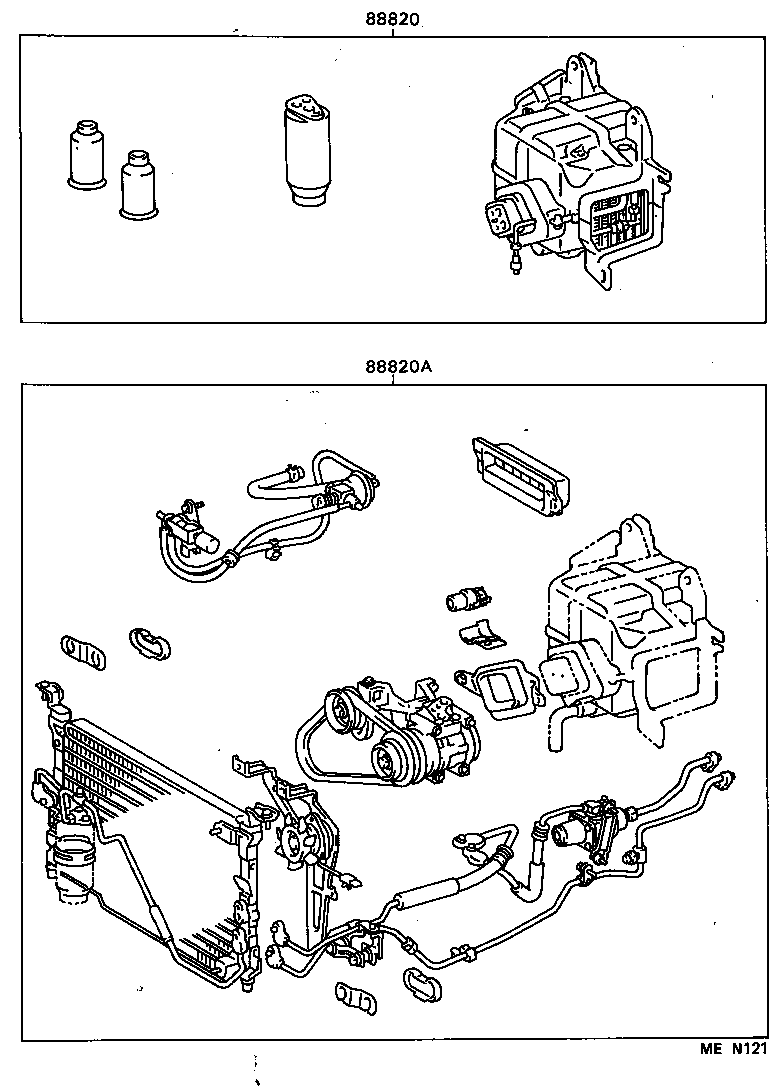

diagram 88820 88820A
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-22120

LX80,SX80..(GL,STD)..(CI,TD)

 1
88820-22120

GX81,LX80,SX80..GL,GR,LG,STD

ﾏﾆﾕｱﾙ

 1
88820-22150

GX81,LX80,SX80..GL,GR,LG,STD

ｶﾝﾚｲﾁ ｼﾖｳ,ﾏﾆﾕｱﾙ

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-22350

SX80..GL,STD

 1
88830-22350

SX80..GL,STD

ﾏﾆﾕｱﾙ

 1
