SX80-AEMRM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4SF#..5F

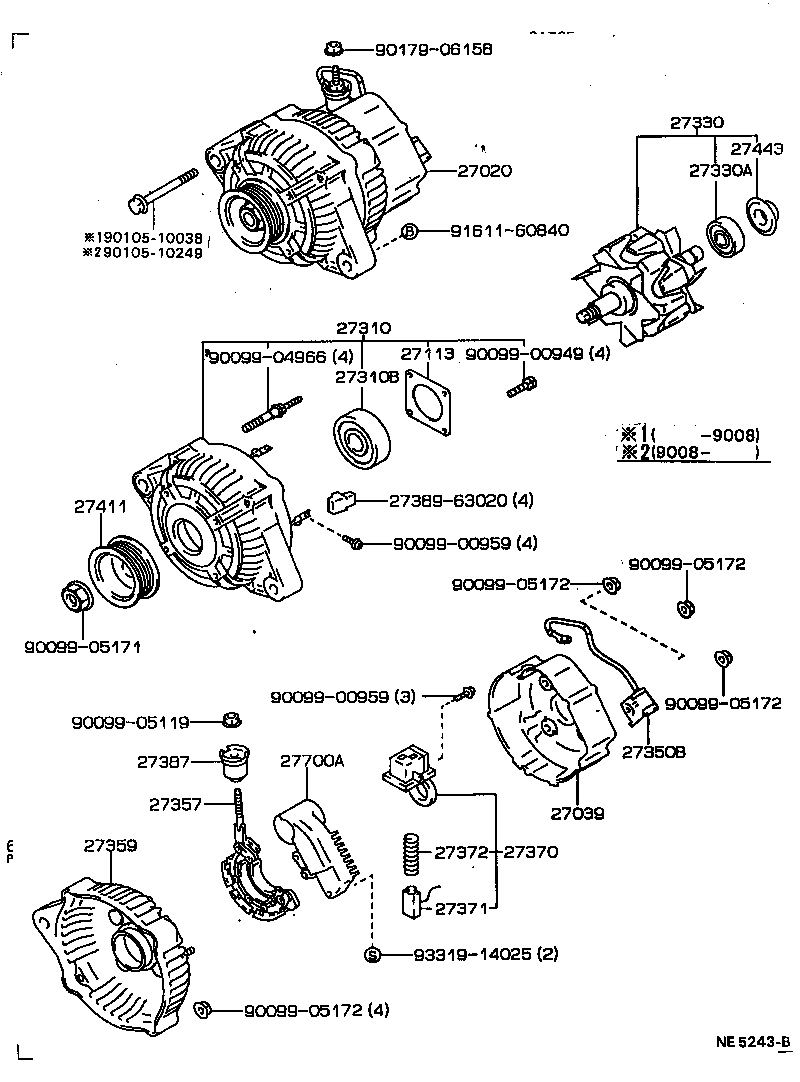

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27350B 27357 27359 27370 27371 27372 27387 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010510038 9010510249 9017906158 9161160840 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74090

4SF#..SX80..5F

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200

1GFE,1GGE,1GGTE,4SFI,3YP..GX81,SX80,YX80..3FC,5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GFE,1GG#,2L#,4SFI,3YP..GX81,LX80,SX80,YX80

 1
27350B - CONDENSER, ALTERNATOR
90099-52100

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 1
90099-52100

4SFI..SX80..5F

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43160

4SF#..SX80..5F

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1GFE,1GGE,1GGTE,4SFI..GX81,SX80..5F

 2
27371-63020

2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI..GX81,LX80,SX80..5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F

 2
27387 - INSULATOR, TERMINAL
27387-70170

2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F

 1
27411 - PULLEY, ALTERNATOR
27411-16180

3YP..YX80;4SF#..SX80..5F

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3YP..YX80..3FC,5F;3YP..YX80..4FC..GL;1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80

 1
27700A - REGULATOR ASSY, GENERATOR
27700-16010

4SFI..SX80..5F;1GFE,1GG#,7MGE..GX81,MX83

 1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10038
90105-10249
90179-06158
91611-60840
93319-14025
