SX80-AEMNM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

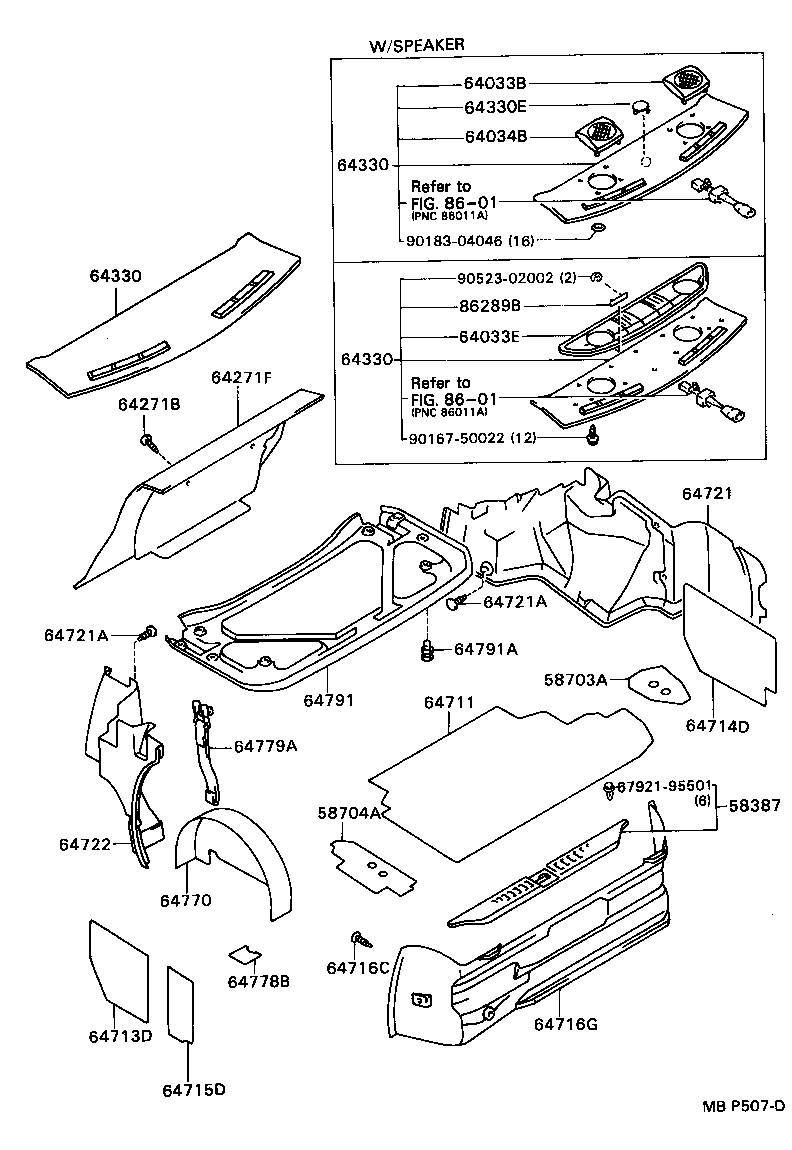

Click highlighted areas on diagram

diagram 58387 58703A 58704A 64033B 64033E 64034B 64271B 64271F 64330 64330 64330 64330E 64711 64713D 64714D 64715D 64716C 64716G 64721 64721A 64721A 64722 64770 64778B 64779A 64791 64791A 6792195501 8601 8601 86289B 9016750022 9018304046 9052302002
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-2201003

LX80,SX80,YX80..GL

GRAY,TRIM4#,8#

 1
58387-2201003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-22060

GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-22050

JZX81..TWC;GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-0607013

LX80,SX80..GL

GRAY,TRIM4#,8#

 2
90467-0607013

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 2
64271F - TRIM, ROOM PARTITION
64271-2210003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64271-2210003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2254006

LX80,SX80,YX80..GL

SABLE,TRIM4#

 1
64330-2254004

LX80,SX80,YX80..GL,KYO,STD

DARK BLUE,TRIM8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2254006

LX80,SX80,YX80..GL

SABLE,TRIM4#

 1
64330-2254004

LX80,SX80,YX80..GL,KYO,STD

DARK BLUE,TRIM8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2254006

LX80,SX80,YX80..GL

SABLE,TRIM4#

 1
64330-2254004

LX80,SX80,YX80..GL,KYO,STD

DARK BLUE,TRIM8#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2226003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64711-2226003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64713D - COVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
64713-2206003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64713-2206003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-2211003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64715-2211003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0502013

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 9
90467-0502013

LX80,SX80,YX80..GL

GRAY,TRIM4#,8#

 9
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-2222003

LX80,SX80,YX80..GL

GRAY,TRIM4#,8#

 1
64716-2222003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-2230003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64721-2230003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

LX80,SX80..GL

LIGHT GRAY,TRIM4#,8#

 5
90467-07042B0

LX80,SX80..GL..(CI,TD)

LIGHT GRAY,TRIM4#,8#

 5
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

LX80,SX80..GL

LIGHT GRAY,TRIM4#,8#

 5
90467-07042B0

LX80,SX80..GL..(CI,TD)

LIGHT GRAY,TRIM4#,8#

 5
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-2230003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64722-2230003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-2210003

LX80,SX80..GL

GRAY,TRIM4#,8#

 1
64770-2210003

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 1
64778B - PROTECTOR, SPARE WHEEL
64778-22010

GX81,JZX81,LX80,MX83,SX80

 1
64779A - STOPPER, SPARE WHEEL COVER
64779-22010

GX81,JZX81,LX80,MX83,SX80

 1
64791 - COVER, BACK DOOR TRIM
64791-2204003

LX80,SX80,YX80..GL

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM4#,8#

 1
64791-2204003

LX80,SX80..GL..(CI,TD)

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM4#,8#

 1
64791A - CLIP(FOR BACK DOOR TRIM)
90467-0705903

LX80,SX80,YX80..GL

GRAY,TRIM4#,8#

 16
90467-0705903

LX80,SX80..GL..(CI,TD)

GRAY,TRIM4#,8#

 16
Common parts
67921-95501
90167-50022
90183-04046
90523-02002
Linked diagrams
8601
