SX80-AEMNM (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46361 46361A 46361C 9011908309 9046814004
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2220004

SX80..5F..(GL,GR);LX80,SX80..(KYO,STD)..(CI,TD);GX81,LX80,YX80..(3FC,5F)..(DSL,HTWC,LPG,TD)

DARK BLUE,TRIM8#

 1
46201-2220006

GX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,LG)..(CI,DSL,HTWC,LPG,TD)

SABLE,TRIM4#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2203006

GX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)

SABLE,TRIM4#

 1
46217-2203004

SX80..5F..(GL,GR);GX81,LX80,YX80..3FC,5F;LX80,SX80..(KYO,STD)..(CI,TD)

DARK BLUE,TRIM8#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-22060

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-22020

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
46361 - ROD, PARKING BRAKE PULL
46361-22060

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
46361A - PIN, PARKING BRAKE PULL ROD
90240-08037

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
46361C - GROMMET(FOR PARKING BRAKE PULL ROD)
90480-01292

YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO

 1
Common parts
90119-08309
90468-14004

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

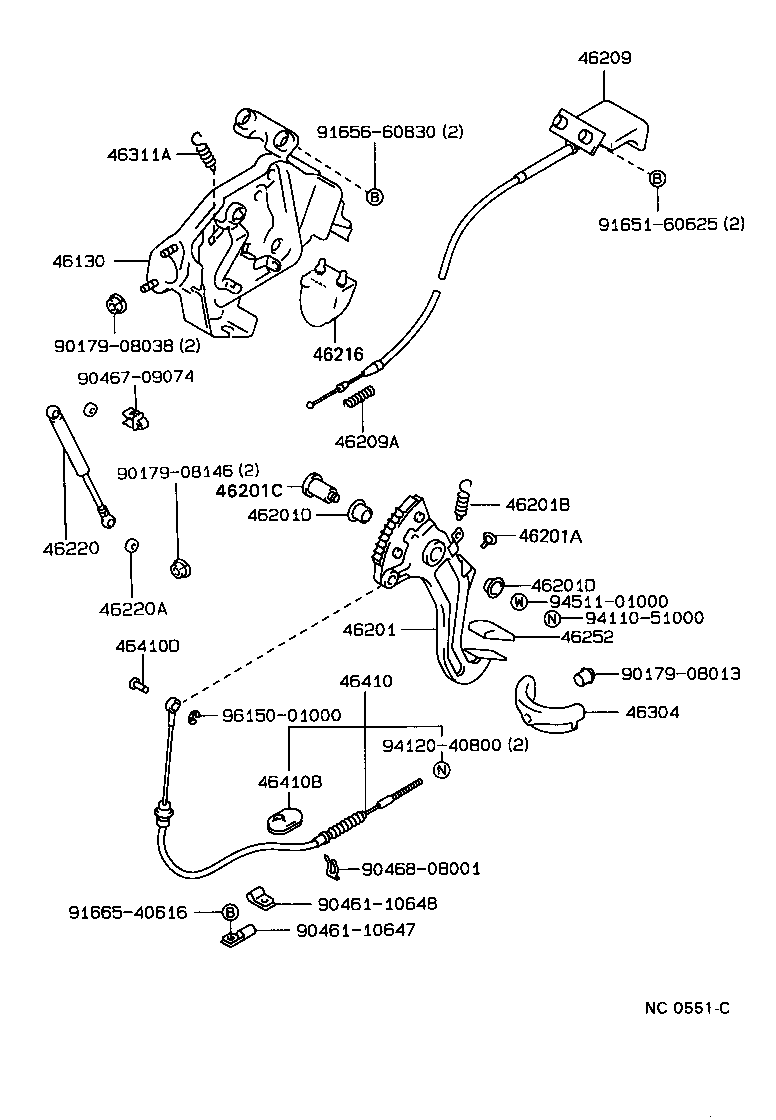

diagram 46130 46201 46201A 46201B 46201C 46201D 46201D 46209 46209A 46216 46220 46220A 46252 46304 46311A 46410 46410B 46410D 9017908013 9017908038 9017908146 9046110647 9046110648 9046709074 9046808001 9165160625 9165660830 9166540616 9411051000 9412040800 9451101000 9615001000
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-22040

GX81,LX80,MX83,SX80,YX80

 1
Common parts
90179-08013
90179-08038
90179-08146
90461-10647
90461-10648
90467-09074
90468-08001
91651-60625
91656-60830
91665-40616
94110-51000
94120-40800
94511-01000
96150-01000

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

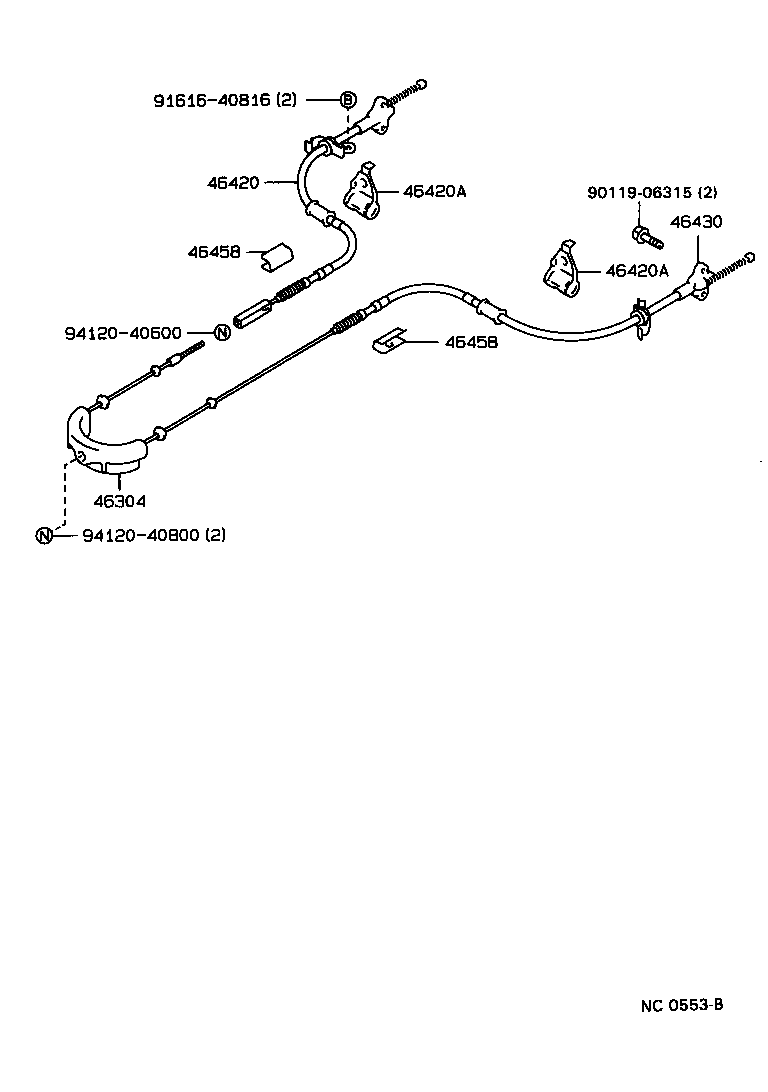

diagram 46304 46420 46420A 46420A 46430 46458 46458 9011906315 9161640816 9412040600 9412040800
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-22040

GX81,LX80,MX83,SX80,YX80

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-22350

LX80,SX80,YX80

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01467

LX80,SX80,YX80

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01467

LX80,SX80,YX80

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-22270

LX80,SX80,YX80

 1
46458 - RETAINER, CABLE
46458-50010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
46458 - RETAINER, CABLE
46458-50010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
Common parts
90119-06315
91616-40816
94120-40600
94120-40800
