SX80-AEMEM (1988)
Toyota Mark 2

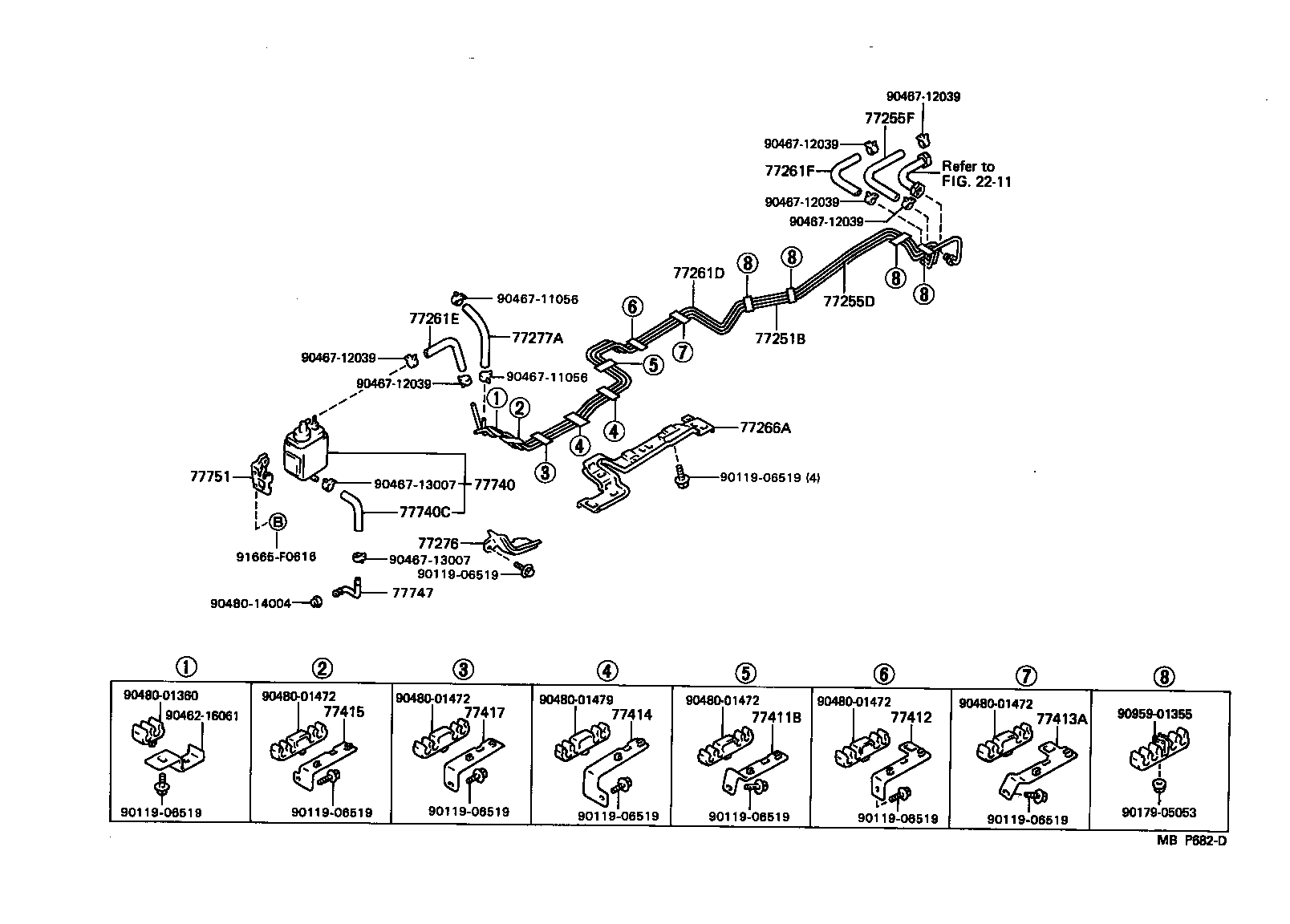

ILLUST NO. 2 OF 2(8808- )SX80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22330 |
SX80 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-22280 |
SX80 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77419-22030 |
SX80 ι·γ=180,ε εΎ=6 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-22170 |
SX80 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
GX81,JZX81,MX83,SX80 *H,L=200 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-22080 |
GX81,JZX81,MX83,SX80 ι·γ=220 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22060 |
SX80,YX80 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22060 |
SX80,YX80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12084 |
SX80 ι·γ=280 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-22010 |
SX80,YX80 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22390 |
SX80 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77754-22030 |
SX80 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-22010 |
SX80 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-22110 |
SX80 |
1 | ||
| Common parts | ||||
| 90119-06519 | ||||
| 90179-05053 | ||||
| 90462-16061 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-13007 | ||||
| 90480-01360 | ||||
| 90480-01472 | ||||
| 90480-01479 | ||||
| 90480-14004 | ||||
| 90959-01355 | ||||
| 91665-F0616 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(8808- )GX81,JZX81,LX80,MX83,SX80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-22050 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22190 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-22050 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22300 |
GX81,LX80,SX80..CI,DSL,SPC,TD,TWT |
1 | ||
| 77001-22301 |
GX81,LX80,MX83,SX80..GDG,GL,GR,GT,KYO,STD |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GX81,LX80,MX83,SX80..GDG,GL,GR,GT,KYO,STD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GX81,LX80,MX83,SX80..GDG,GL,GR,GT,KYO,STD |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22230 |
GX81,JZX81,MX83,SX80 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-22080 |
GX81,JZX81,MX83,SX80 ι·γ=280 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-22070 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-22040 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GX81,JZX81,MX83,SX80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-22100 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-22120 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-22010 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-22010 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-22070 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-22060 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-22070 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-22060 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-22060 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| Common parts | ||||
| 90119-06422 | ||||
| 90119-10509 | ||||
| 90149-50049 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-60365 | ||||
| 90159-60372 | ||||
| 90168-45008 | ||||
| 90179-05063 | ||||
| 90179-06169 | ||||
| 90179-10112 | ||||
| 90183-06006 | ||||
| 90189-05097 | ||||
| 90189-06048 | ||||
| 90240-08020 | ||||
| 90464-00190 | ||||
| 90467-12039 | ||||
| 90467-12044 | ||||
| 90468-14011 | ||||
| Linked diagrams | ||||
| 5801 | ||||
