SX80-AEMEM (1988)
Toyota Mark 2
(8808- )SED

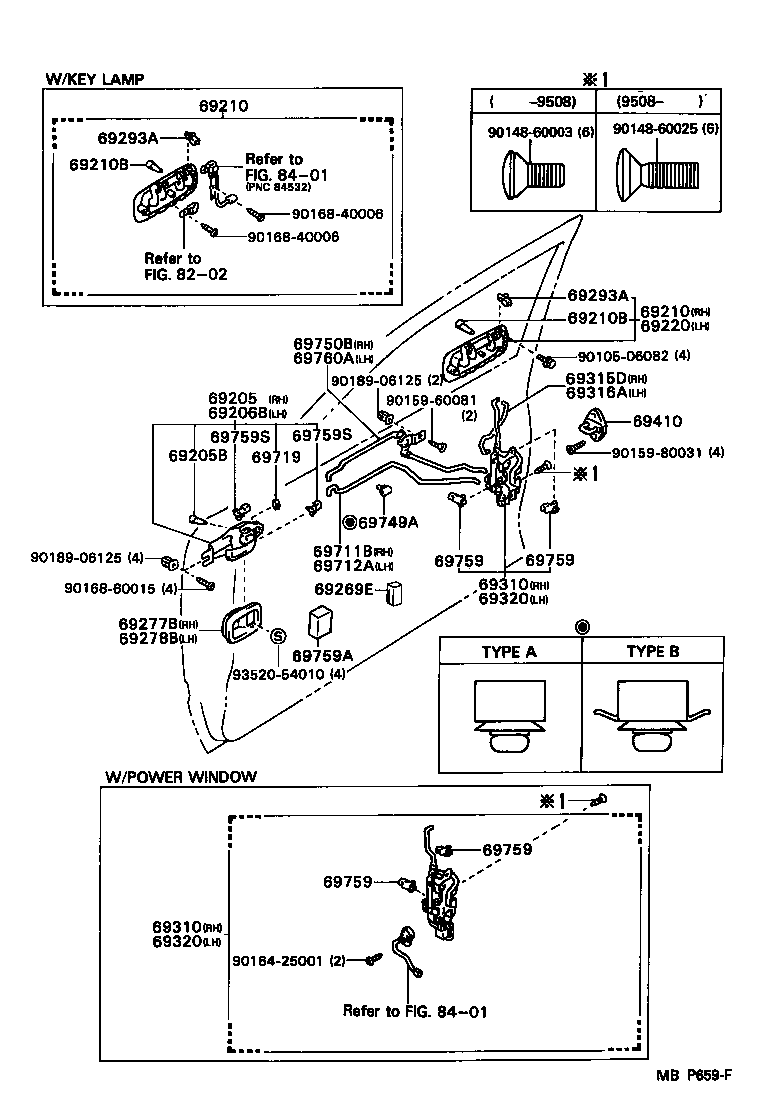

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-2204004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69205-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69205-2204002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69205-2204006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
GX81,LX80,SX80,YX80 |
2 | ||
| 90541-04018 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69206-2204002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69206-2204004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69206-2204006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22120 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22120 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-22110 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,KYO,LG,STD |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-2206006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 69277-2206002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69277-2206004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69277-2206002 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-2202004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 69278-2202006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 69278-2202002 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69278-2202002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 69293-12060 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 69293-12060 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-22300 |
GX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-22300 |
GX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG) |
1 | ||
| 69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH | ||||
| 69315-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH | ||||
| 69316-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-22340 |
GX81,LX80,SX80..SED..(GR,LG) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-22340 |
GX81,LX80,SX80..SED..(GR,LG) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-22070 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-22070 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 69719 - CUSHION, DOOR LOCK CONTROL | ||||
| 69719-22010 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED NATURAL |
1 | ||
| 69759-24050 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED NATURAL |
1 | ||
| 69759-24050 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED NATURAL |
1 | ||
| 69759-24050 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED NATURAL |
1 | ||
| 69759-24050 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,MX83..HT;GX81..SED..LG;LX80,SX80,YX80 GRAY |
2 | ||
| 69759A - SILENCER, SEPARATION DOOR LOCK LINK | ||||
| 69759-20120 |
GX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-22020 |
GX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60003 | ||||
| 90148-60025 | ||||
| 90159-60081 | ||||
| 90159-80031 | ||||
| 90164-25001 | ||||
| 90168-40006 | ||||
| 90168-60015 | ||||
| 90189-06125 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
