SX70-XEPES (1984)
Toyota Mark 2

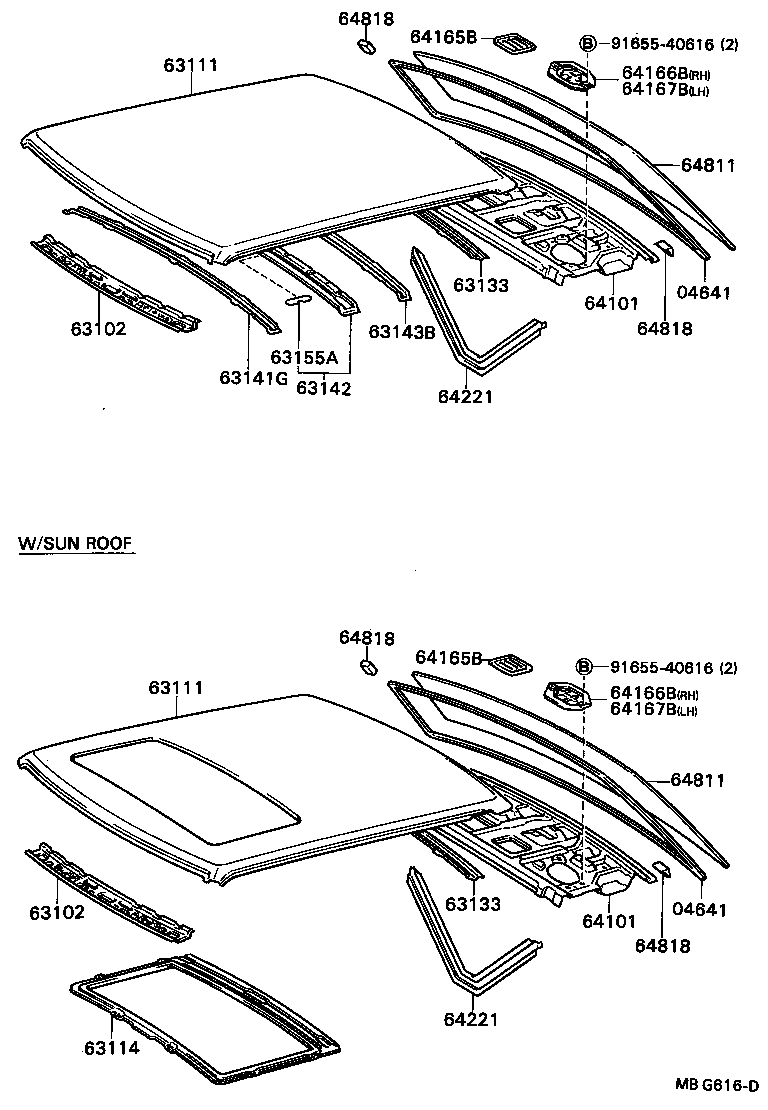

ILLUST NO. 1 OF 2(8408- )GX71,LX70,MX71,SX70,YX70,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-22100 |
GX71,LX70,MX71,SX70..SED..(GD,GR,LG) |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-22100 |
GX71,LX70,MX71,SX70..SED..(GD,GR,LG) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22130 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22130 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-22060 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-22060 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63143-22070 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-22060 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 63155A - PLATE, ROOF PANEL REINFORCEMENT | ||||
| 63155-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22170 |
GX71,LX70,MX71,SX70..SED |
1 | ||
| 64101-22190 |
GX71,LX70,MX71,SX70..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22170 |
GX71,LX70,MX71,SX70..SED |
1 | ||
| 64101-22190 |
GX71,LX70,MX71,SX70..SED |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-22010 |
GX71,LX70,MX71,SX70,YX70,72 |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-22010 |
GX71,LX70,MX71,SX70,YX70,72 |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-22030 |
GX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD) |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-22030 |
GX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD) |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-22030 |
GX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD) |
1 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-22030 |
GX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD) |
1 | ||
| 64221 - BRACE, REAR SEAT CUSHION SUPPORT | ||||
| 64221-22020 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 64221 - BRACE, REAR SEAT CUSHION SUPPORT | ||||
| 64221-22020 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22370 |
GX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS) *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64811-22380 |
LX70,SX70..GR GR EXTRA,*EHTT,T=4.0,BRONZE |
1 | ||
| 64811-22371 |
GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS) *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64811-22381 |
GX71,LX70,SX70..SED..(GD,GR,LG) *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*EHTT,T=4.0,BRONZE |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22370 |
GX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS) *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64811-22380 |
LX70,SX70..GR GR EXTRA,*EHTT,T=4.0,BRONZE |
1 | ||
| 64811-22371 |
GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS) *EHTT,厚さ=4.0,*EHTT,T=4.0 |
1 | ||
| 64811-22381 |
GX71,LX70,SX70..SED..(GD,GR,LG) *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*EHTT,T=4.0,BRONZE |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 10X6X20 |
2 | ||
| 64819-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X7X20 |
2 | ||
| 64819-22020 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X3X20 |
2 | ||
| 64819-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X5X20 |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 10X6X20 |
2 | ||
| 64819-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X7X20 |
2 | ||
| 64819-22020 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X3X20 |
2 | ||
| 64819-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X5X20 |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 10X6X20 |
2 | ||
| 64819-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X7X20 |
2 | ||
| 64819-22020 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X3X20 |
2 | ||
| 64819-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X5X20 |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 10X6X20 |
2 | ||
| 64819-22030 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X7X20 |
2 | ||
| 64819-22020 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X3X20 |
2 | ||
| 64819-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED 12X5X20 |
2 | ||
| Common parts | ||||
| 91655-40616 | ||||
ILLUST NO. 2 OF 2(8408- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06072 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50031 | ||||
| 90179-06123 | ||||
| 90189-04014 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90467-13103 | ||||
| 90468-16009 | ||||
| 90564-09004 | ||||
| 93382-16012 | ||||
| 93560-14008 | ||||
