SX70-XEPES (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,LG,LS,STD

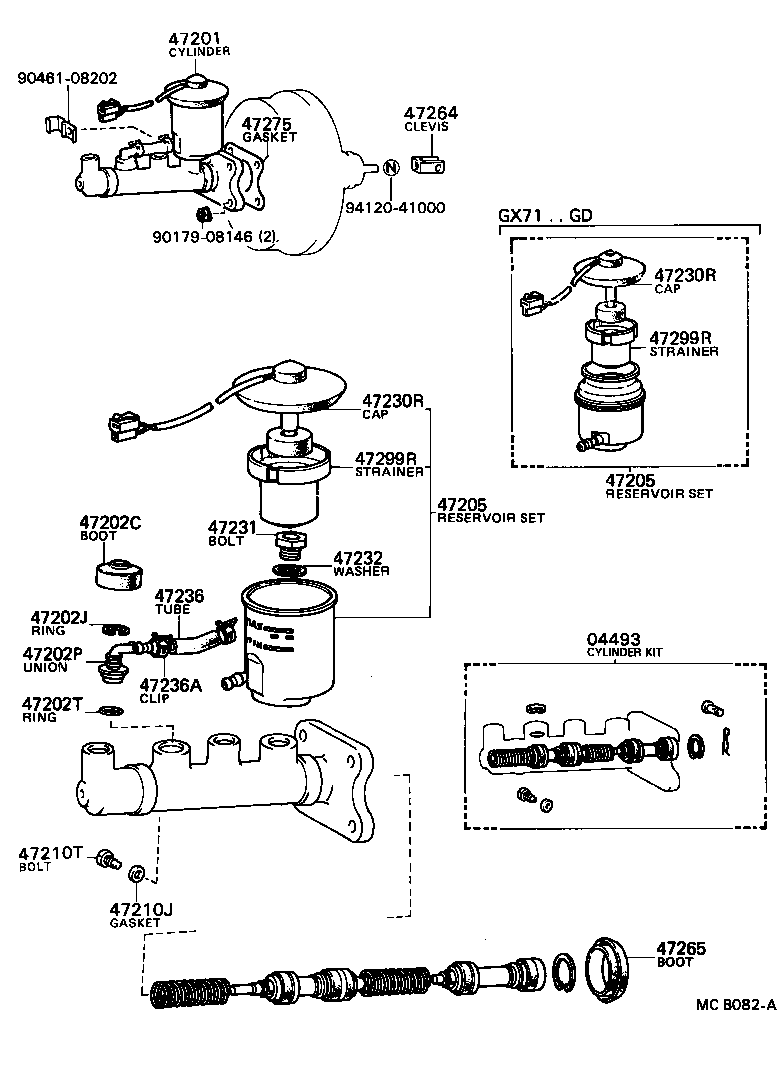

Click highlighted areas on diagram

diagram 04493 47201 47202C 47202J 47202P 47202T 47205 47205 47210J 47210T 47230R 47230R 47231 47232 47236 47236A 47264 47265 47275 47299R 47299R 9017908146 9046108202 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-22130

LX7#,SX70,YX7#..DX,GL,GR,STD

 1
04493-22130

LX7#,SX70,YX7#..(DX,GL,GR,STD)..(CBR,DSL,LPG)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-22450

LX7#,SX70,YX7#..(DX,GL,GR,STD)..(CBR,DSL,LPG)

 1
47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
47265-20060

GX7#,LX7#,MX71,SX70,YX7#

 1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
96151-02000

GX7#,LX7#,MX71,SX70,YX7#

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90407-10003

GX7#,LX7#,SX70,YX7#..CBR,DSL,EFI,LPG,TD,TWC

 1
47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
90301-14001

GX7#,LX7#,MX71,SX70,YX7#

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-22220

GX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-22220

GX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

GX7#,LX7#,MX71,SX70,YX7#

 2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

GX7#,LX7#,MX71,SX70,YX7#

 2
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-20051

LX7#,SX70,YX7#

 1
84460-20051

GX7#,LX7#,MX71,SX70,YX7#

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-20051

LX7#,SX70,YX7#

 1
84460-20051

GX7#,LX7#,MX71,SX70,YX7#

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-30010

GX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,LG,LS,STD

 1
47231-22010

LX7#,SX70,YX7#..DX,GL,GR,STD

 1
47232 - WASHER, BRAKE RESERVOIR SET BOLT
47232-30010

LX7#,SX70,YX7#..DX,GL,GR,STD

 1
47236 - TUBE, RESERVOIR BRAKE
47234-20010

GX7#,LX7#,MX71,SX70,YX7#

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

GX7#,LX7#,MX71,SX70,YX7#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

GX7#,LX7#,MX71,SX70,YX7#

 2
47265 - BOOT, MASTER CYLINDER
47265-20050

GX7#,LX7#,MX71,SX70,YX7#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

GX7#,LX7#,MX71,SX70,YX7#

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
47299-22030

LX7#,SX70,YX7#

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
47299-22030

LX7#,SX70,YX7#

 1
Common parts
90179-08146
90461-08202
94120-41000
