SX70-XEMRS (1984)
Toyota Mark 2

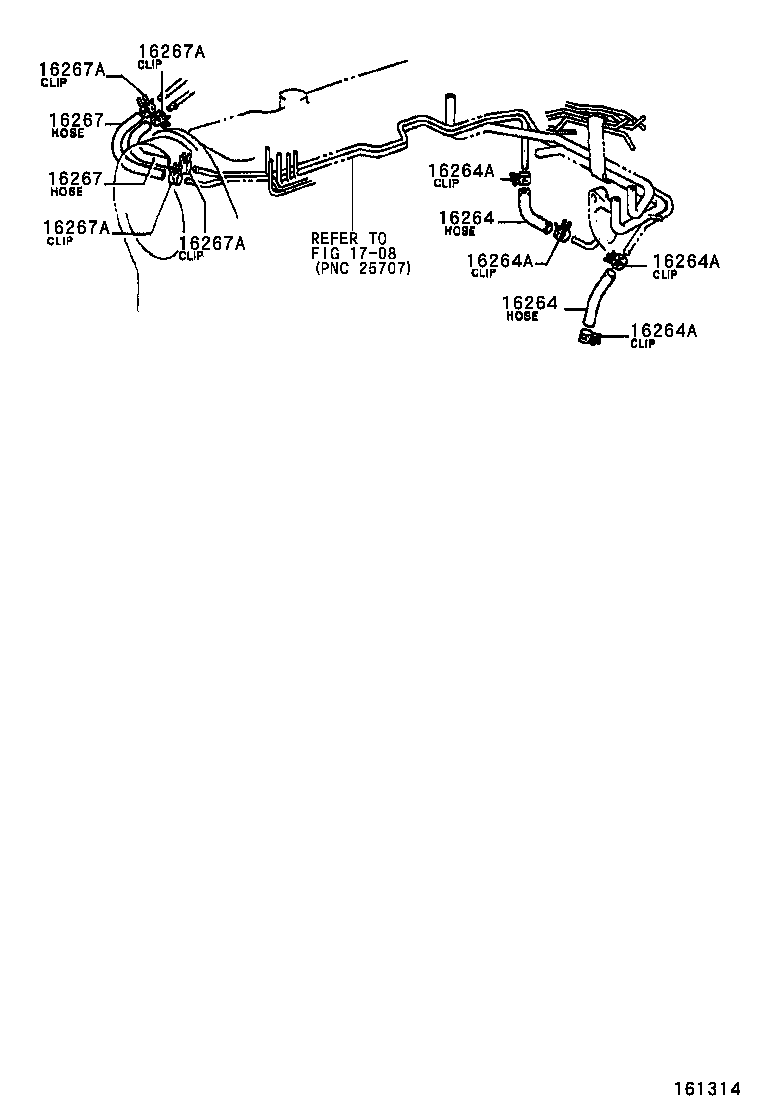

ILLUST NO. 2 OF 3(8408- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-00140 |
1SU..SX70 *H,L=140 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-00140 |
1SU..SX70 *H,L=140 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-00140 |
1SU..SX70 *H,L=140 |
1 | ||
| 99555-00100 |
1SU..SX70 L=100 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99555-00140 |
1SU..SX70 *H,L=140 |
1 | ||
| 99555-00100 |
1SU..SX70 L=100 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 90467-11049 |
1SU..SX70 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX70 |
4 | ||
| 90467-11049 |
1SU..SX70 |
4 | ||
| Linked diagrams | ||||
| 1708 | ||||

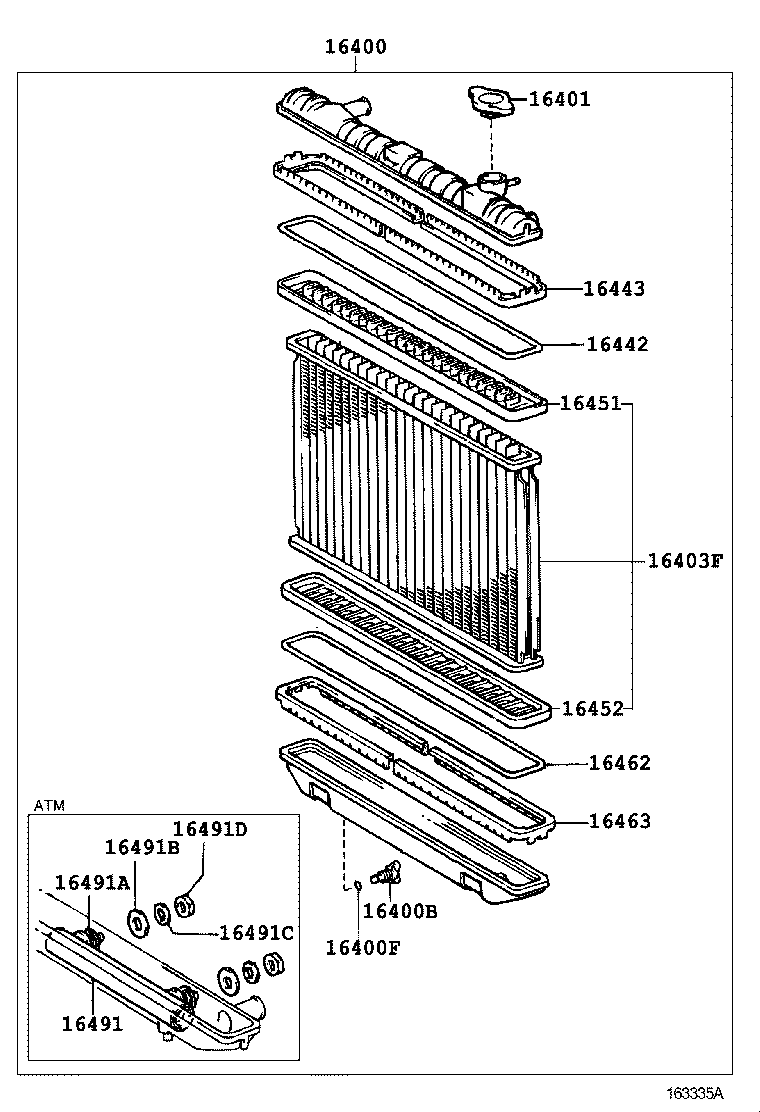

ILLUST NO. 3 OF 3(8408- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-63140 |
1SU..SX70..5F |
1 | ||
| 16400-63140 |
1SU..SX70..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1SU..SX70 |
1 | ||
| 23322-54010 |
1SU..SX70 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1SU..SX70 |
1 | ||
| 96711-19007 |
1SU..SX70 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1SU..SX70 |
1 | ||
| 16401-63010 |
1SU..SX70 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-37090 |
1SU..SX70..5F |
1 | ||
| 16403-37090 |
1SU..SX70..5F |
1 | ||
| 16403-37090 |
1SU..SX70 |
1 | ||
| 16403-37090 |
1SU..SX70 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
1SU..SX70 |
1 | ||
| 16442-35070 |
1SU..SX70 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35161 |
1SU..SX70 |
2 | ||
| 16443-35161 |
1SU..SX70 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
1SU..SX70 |
1 | ||
| 16451-35070 |
1SU..SX70 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
1SU..SX70 |
1 | ||
| 16452-35070 |
1SU..SX70 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
1SU..SX70 |
1 | ||
| 16462-35070 |
1SU..SX70 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35160 |
1SU..SX70 |
2 | ||
| 16463-35160 |
1SU..SX70 |
2 | ||
ILLUST NO. 1 OF 3(8408- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-63010 |
1SU..SX70 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
1SU..SX70 |
2 | ||
| 90467-21001 |
1SU..SX70 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
1SU..SX70 |
2 | ||
| 90467-21001 |
1SU..SX70 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
1SU..SX70 |
2 | ||
| 90467-21001 |
1SU..SX70 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-63010 |
1SU..SX70 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1SU..SX70 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-63010 |
1SU..SX70..5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1SU..SX70 *WAX 82−95 |
1 | ||
| 90916-03046 |
1SU..SX70 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
1SU..SX70 |
1 | ||
| 16361 - FAN | ||||
| 16361-45020 |
1SU..SX70 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-63010 |
1SU..SX70 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-63140 |
1SU..SX70..5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-63040 |
1SU..SX70 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1SU..SX70 *H,L=220 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1SU..SX70 *H,L=220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SU..SX70 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SU..SX70 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-63010 |
1SU..SX70 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-63040 |
1SU..SX70 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
1SU..SX70 |
1 | ||
| 85338-70100 |
1SU..SX70 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70010 |
1SU..SX70 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-63040 |
1SU..SX70 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1SU..SX70 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1SU..SX70 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-63050 |
1SU..SX70 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1SU..SX70 RADIATOR SIDE |
1 | ||
| 90467-34001 |
1SU..SX70 WATER INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1SU..SX70 RADIATOR SIDE |
1 | ||
| 90467-34001 |
1SU..SX70 WATER INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-63010 |
1SU..SX70 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1SU..SX70 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1SU..SX70 |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-41010 |
1SU..SX70 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-73010 |
1SU..SX70 W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91611-40825 | ||||
| 91651-40618 | ||||
| 91651-40814 | ||||
| 91651-60840 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
