SX70-XEMRS (1984)
Toyota Mark 2
(8408- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
1SU..SX70 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-63021 |
1SU..SX70 U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 11701-7001201 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-7001203 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 11701-7001203 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-7001202 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-7001202 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 11701-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11701-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11701-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11701-6302101 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-6302102 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-6302104 |
1SU..SX70 NO.1,2,4,5,MARK"4",MARK 4 |
4 | ||
| 11701-6302103 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-6302105 |
1SU..SX70 NO.1,2,4,5,MARK"5",MARK 5 |
4 | ||
| 11071-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11071-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11071-6302004 |
1SU..SX70 NO.3,MARK"4",MARK 4 |
1 | ||
| 11071-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11071-6302005 |
1SU..SX70 NO.3,MARK"5",MARK 5 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 11701-7001201 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-7001203 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 11701-7001203 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-7001202 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-7001202 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 11701-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11701-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11701-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11701-6302101 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-6302102 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-6302104 |
1SU..SX70 NO.1,2,4,5,MARK"4",MARK 4 |
4 | ||
| 11701-6302103 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-6302105 |
1SU..SX70 NO.1,2,4,5,MARK"5",MARK 5 |
4 | ||
| 11071-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11071-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11071-6302004 |
1SU..SX70 NO.3,MARK"4",MARK 4 |
1 | ||
| 11071-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11071-6302005 |
1SU..SX70 NO.3,MARK"5",MARK 5 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 11701-7001201 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-7001203 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 11701-7001203 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-7001202 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-7001202 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 11701-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11701-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11701-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11701-6302101 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-6302102 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-6302104 |
1SU..SX70 NO.1,2,4,5,MARK"4",MARK 4 |
4 | ||
| 11701-6302103 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-6302105 |
1SU..SX70 NO.1,2,4,5,MARK"5",MARK 5 |
4 | ||
| 11071-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11071-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11071-6302004 |
1SU..SX70 NO.3,MARK"4",MARK 4 |
1 | ||
| 11071-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11071-6302005 |
1SU..SX70 NO.3,MARK"5",MARK 5 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 11701-7001201 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-7001203 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 11701-7001203 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-7001202 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-7001202 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 11701-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11701-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11701-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11701-6302101 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-6302102 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-6302104 |
1SU..SX70 NO.1,2,4,5,MARK"4",MARK 4 |
4 | ||
| 11701-6302103 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-6302105 |
1SU..SX70 NO.1,2,4,5,MARK"5",MARK 5 |
4 | ||
| 11071-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11071-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11071-6302004 |
1SU..SX70 NO.3,MARK"4",MARK 4 |
1 | ||
| 11071-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11071-6302005 |
1SU..SX70 NO.3,MARK"5",MARK 5 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 11701-7001201 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-7001203 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 11701-7001203 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-7001202 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-7001202 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 11701-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11701-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11701-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11701-6302101 |
1SU..SX70 NO.1,2,4,5,MARK"1",MARK 1 |
4 | ||
| 11701-6302102 |
1SU..SX70 NO.1,2,4,5,MARK"2",MARK 2 |
4 | ||
| 11701-6302104 |
1SU..SX70 NO.1,2,4,5,MARK"4",MARK 4 |
4 | ||
| 11701-6302103 |
1SU..SX70 NO.1,2,4,5,MARK"3",MARK 3 |
4 | ||
| 11701-6302105 |
1SU..SX70 NO.1,2,4,5,MARK"5",MARK 5 |
4 | ||
| 11071-6302002 |
1SU..SX70 NO.3 MARK"2",MARK 2 |
1 | ||
| 11071-6302003 |
1SU..SX70 NO.3 MARK"3",MARK 3 |
1 | ||
| 11071-6302004 |
1SU..SX70 NO.3,MARK"4",MARK 4 |
1 | ||
| 11071-6302001 |
1SU..SX70 NO.3 MARK"1",MARK 1 |
1 | ||
| 11071-6302005 |
1SU..SX70 NO.3,MARK"5",MARK 5 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-63010 |
1SU..SX70 STD,STD |
1 | ||
| 13014-63010 |
1SU..SX70 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-63010 |
1SU..SX70 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-63010 |
1SU..SX70 O/S 0.50,O/S 0.50 |
1 | ||
| 13015-63011 |
1SU..SX70 O/S 1.00,O/S 1.00 |
1 | ||
| 13011-63011 |
1SU..SX70 STD,STD |
1 | ||
| 13013-63011 |
1SU..SX70 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-63011 |
1SU..SX70 O/S 0.75,O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 13041-6302003 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 13041-6302001 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 13041-6302003 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 13041-6302001 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 13041-6302003 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 13041-6302001 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 13041-6302003 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 13041-6302001 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
1SU..SX70 MARK"2",MARK 2 |
4 | ||
| 13041-6302003 |
1SU..SX70 MARK"3",MARK 3 |
4 | ||
| 13041-6302001 |
1SU..SX70 MARK"1",MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13104-63010 |
1SU..SX70 O/S 0.75 |
4 | ||
| 13101-63010 |
1SU..SX70 STD |
4 | ||
| 13103-63010 |
1SU..SX70 O/S 0.50 |
4 | ||
| 13101-63011 |
1SU..SX70 STD,STD |
4 | ||
| 13105-63010 |
1SU..SX70 O/S 1.00 |
4 | ||
| 13103-63011 |
1SU..SX70 O/S 0.50,O/S 0.50 |
4 | ||
| 13105-63011 |
1SU..SX70 O/S 1.00,O/S 1.00 |
4 | ||
| 13104-63011 |
1SU..SX70 O/S 0.75,O/S 0.75 |
4 | ||
| 13101-6301102 |
1SU..SX70 STD,STD,MARK"2",MARK2 |
4 | ||
| 13101-6301101 |
1SU..SX70 STD,STD,MARK"1",MARK1 |
4 | ||
| 13101-6301103 |
1SU..SX70 STD,STD,MARK"3",MARK3 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-69055 |
1SU..SX70 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-63020 |
1SU..SX70 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-63010 |
1SU..SX70 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-09001 |
1SU..SX70 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-69036 |
1SU..SX70..5F..(GL,GR,STD) |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-69036 |
1SU..SX70..5F..(GL,GR,STD) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1SU..SX70..5F 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10045 |
1SU..SX70..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-63010 |
1SU..SX70 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
1SU..SX70..5F N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-63011 |
1SU..SX70 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
1SU..SX70 |
2 | ||
| 95161-10519 |
1SU..SX70 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14011 |
1SU..SX70 |
1 | ||
| 90119-14015 |
1SU..SX70 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
1SU..SX70 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-63010 |
1SU..SX70 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13567-63010 |
1SU..SX70 |
1 | ||

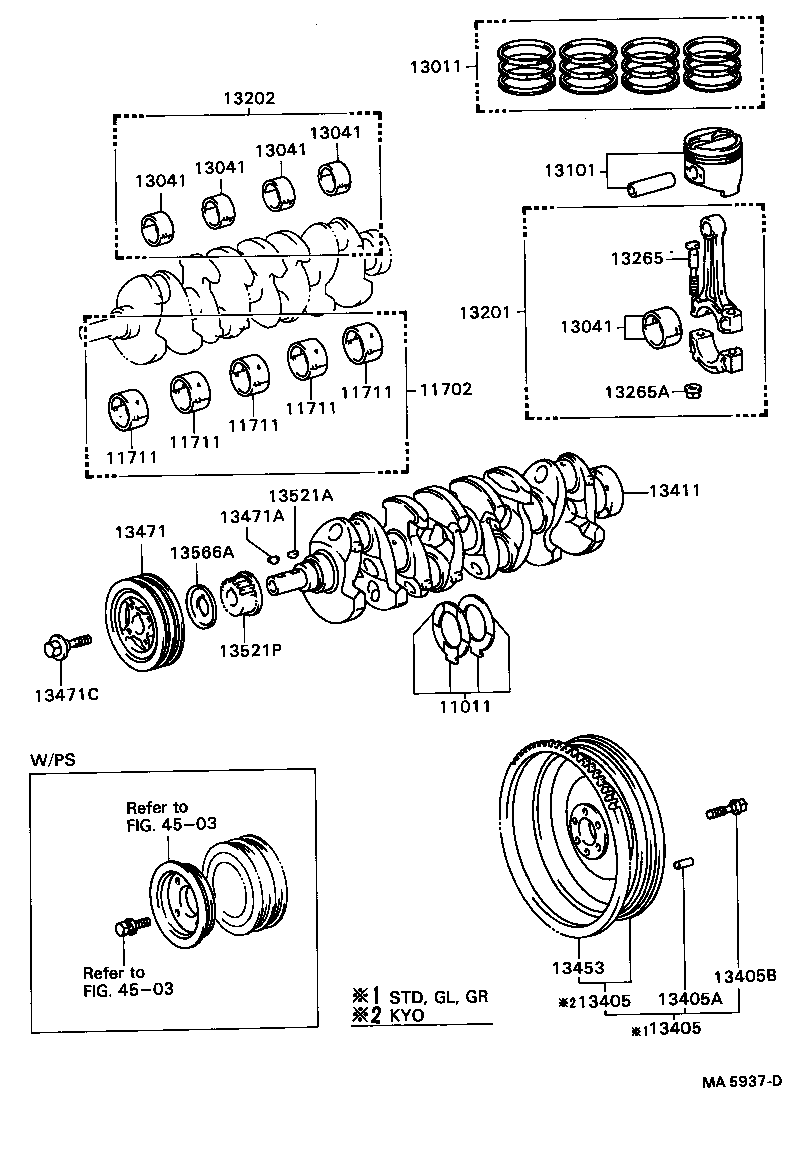

| Linked diagrams | ||||
| 4503 | ||||
