SX70-XEMNS (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,LX70,MX71,SX70,YX70,72

Click highlighted areas on diagram

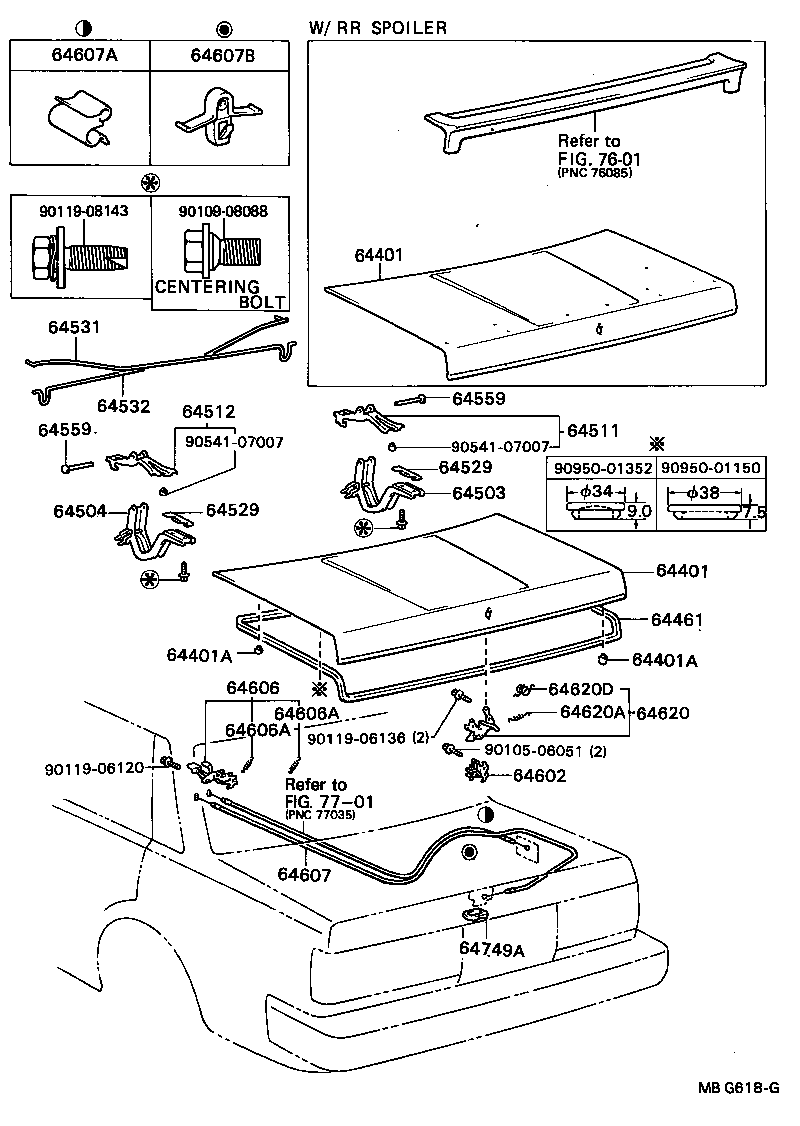

diagram 64401 64401 64401A 64401A 64461 64503 64504 64511 64512 64529 64529 64531 64532 64559 64559 64602 64606 64606A 64606A 64607 64607A 64607B 64620 64620A 64620D 64749A 7601 7701 9010506051 9010908088 9011906120 9011906136 9011908143 9054107007 9054107007 9095001150 9095001352
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22370

GX71,LX70,SX70,YX72..SED

 1
64401-22270

GX71,LX70,MX71,SX70,YX70,72..SED

 1
64401-22260

GX71,LX70,MX71,SX70,YX70..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22370

GX71,LX70,SX70,YX72..SED

 1
64401-22270

GX71,LX70,MX71,SX70,YX70,72..SED

 1
64401-22260

GX71,LX70,MX71,SX70,YX70..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

GX71,LX70,MX71,SX70,YX70,72

FR

 2
90541-09042

GX71,LX70,MX71,SX70,YX70,72

RR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

GX71,LX70,MX71,SX70,YX70,72

FR

 2
90541-09042

GX71,LX70,MX71,SX70,YX70,72

RR

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22120

GX71,LX70,MX71,SX70,YX70,72..SED

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-22010

GX71,LX70,MX71,SX70..SED

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-22010

GX71,LX70,MX71,SX70..SED

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-22070

GX71,LX70,MX71,SX70..SED

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-22070

GX71,LX70,MX71,SX70..SED

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

GX71,LX70,MX71,SX70,YX70,72

 2
64529-20010

GX71,LX70,MX71,SX70,YX70

 2
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

GX71,LX70,MX71,SX70,YX70,72

 2
64529-20010

GX71,LX70,MX71,SX70,YX70

 2
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-22120

GX71,LX70,MX71,SX70..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-22120

GX71,LX70,MX71,SX70..SED

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-22010

GX71,LX70,MX71,SX70,YX70,72

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-22010

GX71,LX70,MX71,SX70,YX70,72

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-12070

GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS

 1
64620-22040

GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-22090

GX71,LX70,SX70..GD,GL,GR,GT,LG,LS

 1
64606-22060

GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

YX70,72;GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

YX70,72;GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22200

GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS)

 1
64607-22120

GX71,LX70,MX71,SX70..SED..(GD,GL,GR,LG,LS)

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01158

YX70,72;GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 1
64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01209

YX70,72;GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS

 2
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-22050

GX71,LX70,MX71,SX70,YX70

 1
64610-22080

GX71,LX70,MX71,SX70,YX70,72..GD,GL,GR,GT,LG,LS

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-08001

GX71,LX70,MX71,SX70,YX70,72

CW=13,WD=0.8

 1
64620D - SPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90508-08019

GX71,LX70,MX71,SX70,YX70,72..GD,GL,GR,GT,LG,LS

 1
64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-22020

GX71,LX70,SX70,YX70,72..GL,KYO,LS,STD

 1
Common parts
90105-06051
90109-08088
90119-06120
90119-06136
90119-08143
90541-07007
90950-01150
90950-01352
Linked diagrams
7601
7701
