SX70-XEMNS (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1SU

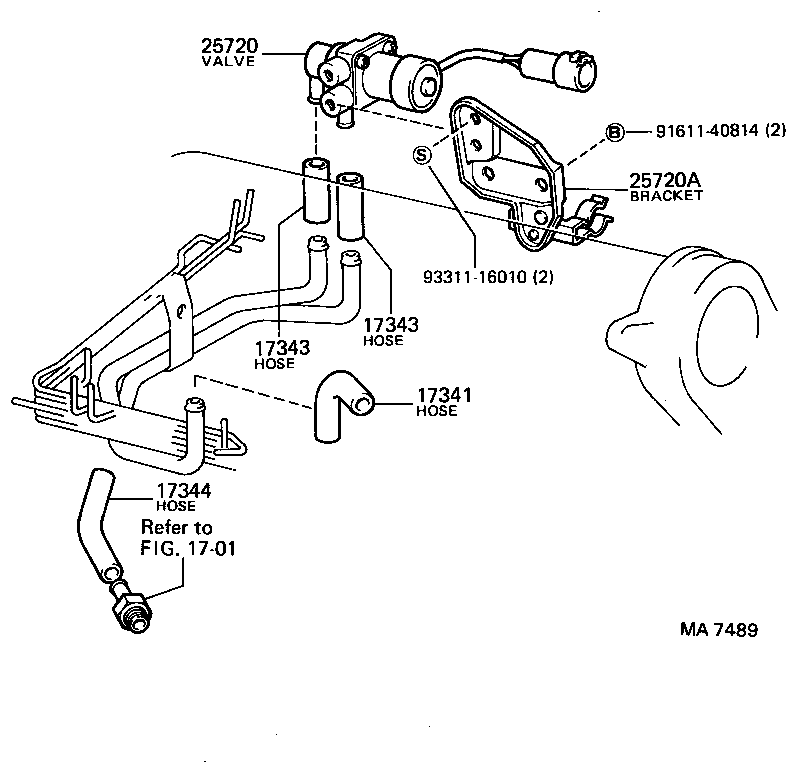

Click highlighted areas on diagram

diagram 1701 17341 17343 17343 17344 25720 25720A 9161140814 9331116010
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-15005

1SU..SX70

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-16012

1SU..SX70

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-16012

1SU..SX70

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90445-16009

1SU..SX70

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25704-63010

1SU..SX70

 1
25720A - BRACKET, ELECTRIC AIR CONTROL VALVE
25724-63010

1SU..SX70

 1
Common parts
91611-40814
93311-16010
Linked diagrams
1701
