SX70-XEMES (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

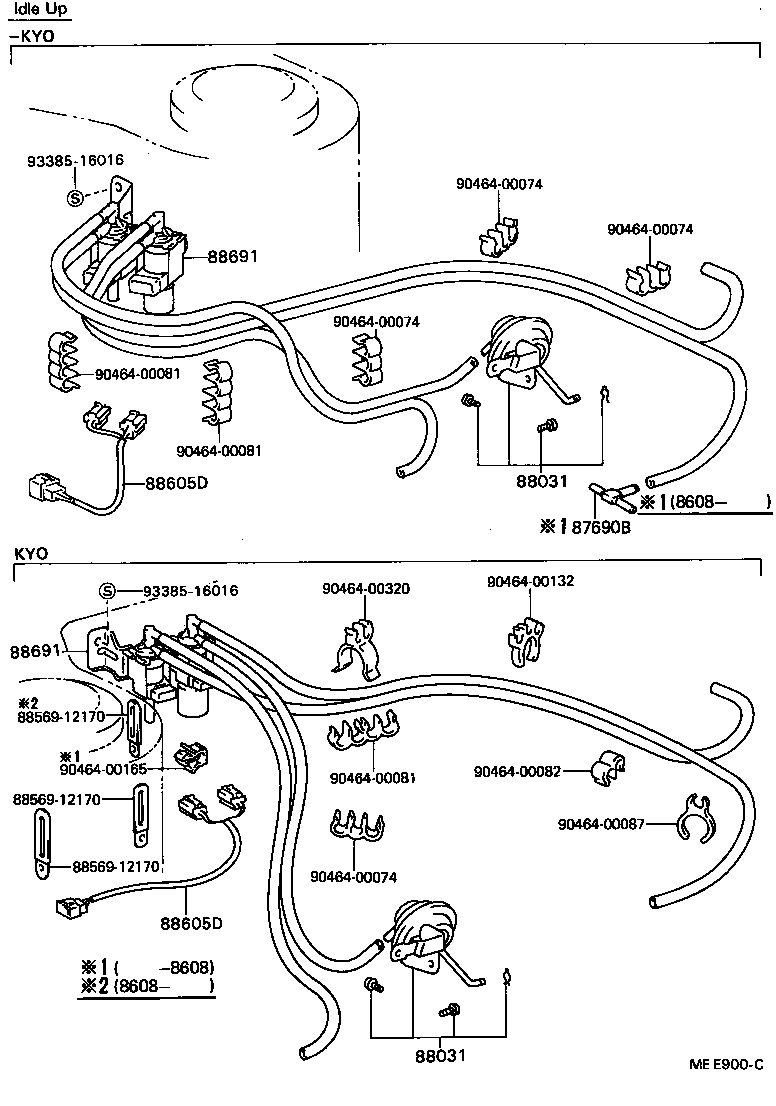

ILLUST NO. 1 OF 2(8408- )SX70

Click highlighted areas on diagram

diagram 87690B 88031 88031 8856912170 8856912170 8856912170 88605D 88605D 88691 88691 9046400074 9046400074 9046400074 9046400074 9046400081 9046400081 9046400081 9046400082 9046400087 9046400132 9046400165 9046400320 9338516016 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04001

GX7#,SX70..GR,LG

 1
90413-03001

GX7#,LX70,SX70..GR,LG

W/*AAC

 2
90413-04005

LX7#,SX70..DX,GL,GR,STD

 1
88031 - ACTUATOR SET, IDLE-UP
88031-14010

SX70

 1
88031 - ACTUATOR SET, IDLE-UP
88031-14010

SX70

 1
88605D - WIRE, AIR CONDITIONER
88648-22090

SX70..GL,GR,STD

 1
88605D - WIRE, AIR CONDITIONER
88648-22090

SX70..GL,GR,STD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22410

SX70..GL,GR,STD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22410

SX70..GL,GR,STD

 1
Common parts
88569-12170
90464-00074
90464-00081
90464-00082
90464-00087
90464-00132
90464-00165
90464-00320
93385-16016

ILLUST NO. 2 OF 2(8608- )GX7#,SX70..GR,LG

Click highlighted areas on diagram

diagram 8271114110 87292 87690B 87690B 8856922250 8859122020 88606B 88690A 88690C 88690C 88690D 88690D 88690E 88690F 88690G 88690G 88690G 88690G 88690G 88690G 88690G 88690H 8869722010 8889122050 9046400151 9046400248 9161160612 9331514008 9331516010 9354014012
Part # Description Qty Price
87292 - TANK, VACUUM
87292-22040

GX7#,SX70..GR,LG

 1
88683-32010

GX7#,LX70,SX70..GR,LG

 1
87690B - WAY, 3
90413-04001

GX7#,SX70..GR,LG

 1
90413-03001

GX7#,LX70,SX70..GR,LG

W/*AAC

 2
90413-04005

LX7#,SX70..DX,GL,GR,STD

 1
87690B - WAY, 3
90413-04001

GX7#,SX70..GR,LG

 1
90413-03001

GX7#,LX70,SX70..GR,LG

W/*AAC

 2
90413-04005

LX7#,SX70..DX,GL,GR,STD

 1
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-22051

GX7#,SX70..GR,LG

W/*AAC

 1
88606-22050

GX7#,SX70..GR,LG

W/*AAC

 1
88690A - VALVE ASSY, COMBINATION
88690-22480

GX7#,SX70..GR,LG

W/*AAC

 1
88690-22320

GX7#,MX71,SX70..GD,GR,GT,LG

W/*AAC

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-22050

GX7#,SX70..GR,LG

W/*AAC

 1
88689-22130

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22230

SX70..GR

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-22050

GX7#,SX70..GR,LG

W/*AAC

 1
88689-22130

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22230

SX70..GR

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
88689-22120

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22270

SX70..GL,GR,STD

 1
95411-10260

GX7#,SX70..GR,LG

*H,L=450,ﾏｰｸ=#2,W/*AAC

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
88689-22120

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22270

SX70..GL,GR,STD

 1
95411-10260

GX7#,SX70..GR,LG

*H,L=450,ﾏｰｸ=#2,W/*AAC

 1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
95411-10330

GX7#,SX70..GR,LG

*H,L=220,ﾏｰｸ=#3,W/*AAC

 1
88689-22090

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
88689-22040

GX7#,SX70..GR,LG

W/*AAC

 1
88689-22041

GX7#,SX70..GR,LG

W/*AAC

 1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
88689-22100

GX7#,LX70,SX70..GR,LG

W/*AAC

 7
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
88689-22110

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
Common parts
82711-14110
88569-22250
88591-22020
88697-22010
88891-22050
90464-00151
90464-00248
91611-60612
93315-14008
93315-16010
93540-14012

ILLUST NO. 2 OF 2(8408-8608)GX7#,SX70..GR,LG

Click highlighted areas on diagram

diagram 87292 87690B 8856912170 8859122020 88606B 88685 88690A 88690C 88690D 88690E 88690F 8869722010 9046400074 9046400074 9046400074 9046400082 9046400082 9046400087 9046400248 9165140612 9331514008 9338515012 9338516016
Part # Description Qty Price
87292 - TANK, VACUUM
87292-22040

GX7#,SX70..GR,LG

 1
88683-32010

GX7#,LX70,SX70..GR,LG

 1
87690B - WAY, 3
90413-04001

GX7#,SX70..GR,LG

 1
90413-03001

GX7#,LX70,SX70..GR,LG

W/*AAC

 2
90413-04005

LX7#,SX70..DX,GL,GR,STD

 1
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-22051

GX7#,SX70..GR,LG

W/*AAC

 1
88606-22050

GX7#,SX70..GR,LG

W/*AAC

 1
88685 - BRACKET, AIR CONDITIONER CONTROL VACUUM TANK
88688-22260

GX7#,SX70..GR,LG

 1
88690A - VALVE ASSY, COMBINATION
88690-22480

GX7#,SX70..GR,LG

W/*AAC

 1
88690-22320

GX7#,MX71,SX70..GD,GR,GT,LG

W/*AAC

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-22050

GX7#,SX70..GR,LG

W/*AAC

 1
88689-22130

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22230

SX70..GR

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
88689-22120

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88807-22270

SX70..GL,GR,STD

 1
95411-10260

GX7#,SX70..GR,LG

*H,L=450,ﾏｰｸ=#2,W/*AAC

 1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
95411-10330

GX7#,SX70..GR,LG

*H,L=220,ﾏｰｸ=#3,W/*AAC

 1
88689-22090

GX7#,LX70,SX70..GR,LG

W/*AAC

 1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
88689-22040

GX7#,SX70..GR,LG

W/*AAC

 1
88689-22041

GX7#,SX70..GR,LG

W/*AAC

 1
Common parts
88569-12170
88591-22020
88697-22010
90464-00074
90464-00082
90464-00087
90464-00248
91651-40612
93315-14008
93385-15012
93385-16016
