SX70-XEMES (1984)
Toyota Mark 2

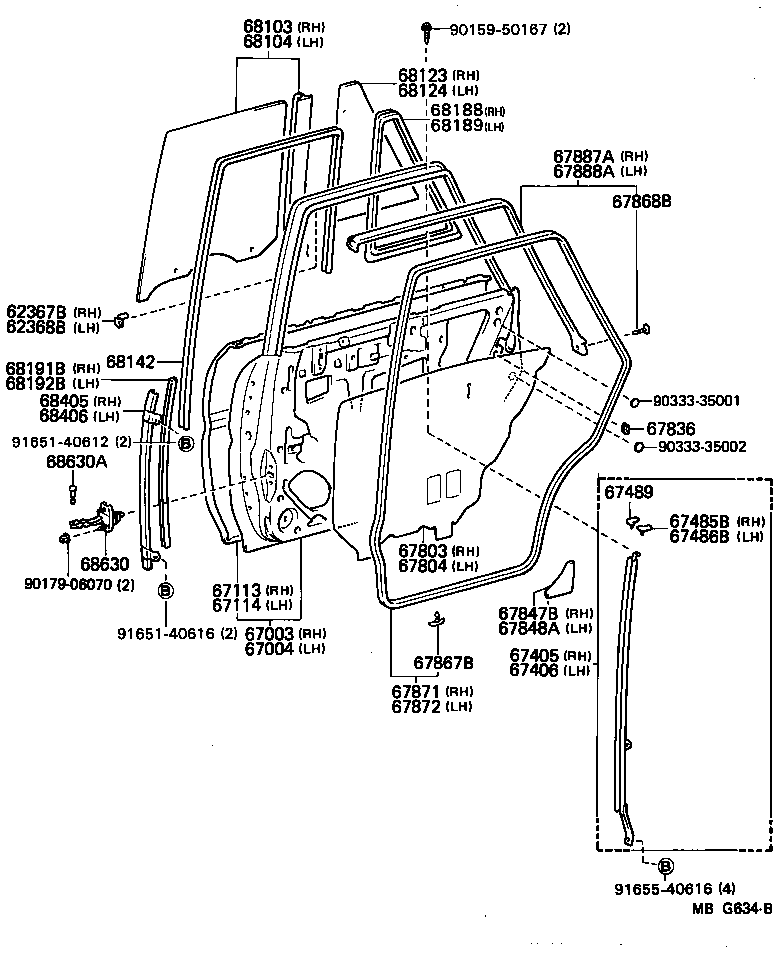

ILLUST NO. 1 OF 2(8408- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367B - CLIP, DOOR WINDOW GLASS, REAR RH | ||||
| 62367-22050 |
GX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG) |
1 | ||
| 62368B - CLIP, DOOR WINDOW GLASS, REAR LH | ||||
| 62368-22060 |
GX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG) |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22200 |
GX71,LX70,MX71,SX70,YX70..SED |
1 | ||
| 67003-22230 |
GX71,LX70,SX70..SED..(GD,GR,LG) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22210 |
GX71,LX70,MX71,SX70,YX70..SED |
1 | ||
| 67004-22240 |
GX71,LX70,SX70..SED..(GD,GR,LG) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-22100 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67113-22110 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-22110 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67114-22100 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-22050 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-22050 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH | ||||
| 67485-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH | ||||
| 67486-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67489 - SEAL, REAR DOOR DIVISION BAR | ||||
| 67488-22030 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| 67487-22030 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22110 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67841-22150 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-22150 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67842-22020 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-22020 |
GX7#,LX7#,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-22020 |
GX7#,LX7#,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-22020 |
GX7#,LX7#,MX71,SX70,YX7# RH |
17 | ||
| 67868-22010 |
GX7#,LX7#,MX71,SX70,YX7# LH |
17 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
GX7#,LX7#,MX71,SX70,YX7# |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22100 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22100 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-22010 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-22060 |
LX70,SX70..GR *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GR EXTRA,*TEM,T=3.5,BRONZE |
1 | ||
| 68103-22050 |
GX71,LX70,MX71,SX70,YX70,72..SED *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68103-22060 |
GX71,LX70,SX70..SED..(GD,GR,LG) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,*TEM,T=3.5,BRONZE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-22050 |
GX71,LX70,MX71,SX70,YX70,72..SED *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68104-22060 |
LX70,SX70..GR *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GR EXTRA,*TEM,T=3.5,BRONZE |
1 | ||
| 68104-22060 |
GX71,LX70,SX70..SED..(GD,GR,LG) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,*TEM,T=3.5,BRONZE |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-22150 |
GX71,LX70,SX70..SED..(GD,GR,LG) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,*TEM,T=3.5,BRONZE |
1 | ||
| 68123-22150 |
LX70,SX70..GR *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GR EXTRA,*TEM,T=3.5,BRONZE |
1 | ||
| 68123-22140 |
GX71,LX70,MX71,SX70,YX70,72..SED *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-22130 |
GX71,LX70,MX71,SX70,YX70,72..SED *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68124-22140 |
GX71,LX70,SX70..SED..(GD,GR,LG) *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,*TEM,T=3.5,BRONZE |
1 | ||
| 68124-22140 |
LX70,SX70..GR *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GR EXTRA,*TEM,T=3.5,BRONZE |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-22050 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| 68152-22020 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH,COLD,SPEC |
1 | ||
| 68142-22060 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH,COLD,SPEC |
1 | ||
| 68152-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-22060 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-22050 |
GX71,LX70,MX71,SX70,YX70,72..SED |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 68405 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-22060 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 68406 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-22060 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 68617-90A00 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90159-50167 | ||||
| 90179-06070 | ||||
| 90333-35001 | ||||
| 90333-35002 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||

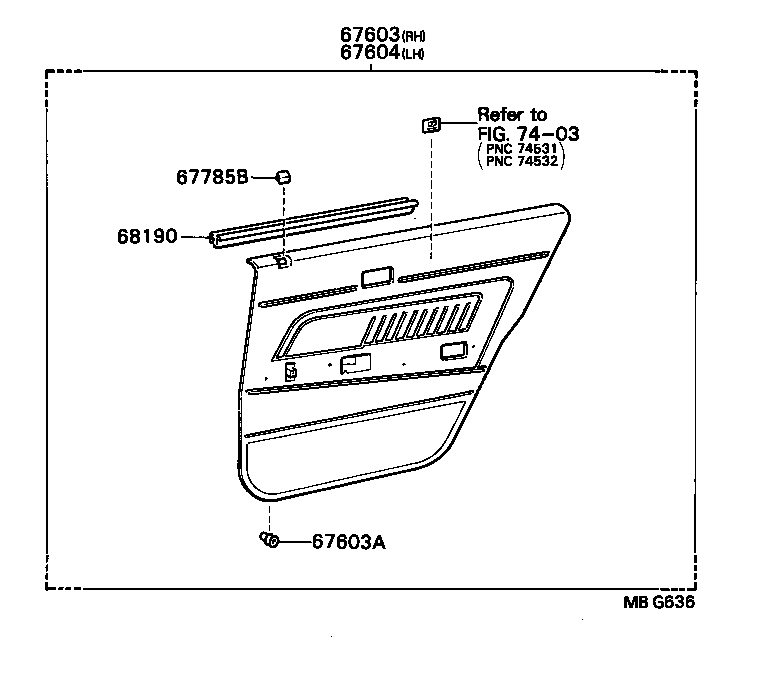

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2287002 |
GX70,LX70,SX70..GR,LG MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2287005 |
GX70,LX70,SX70..GR,LG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-2288002 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2287003 |
GX70,LX70,SX70..GR,LG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-2288003 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-2288005 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-2A20002 |
LX70,SX70..GR GR EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2A26005 |
LX70,SX70..SED..GR BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67630-2A26004 |
LX70,SX70..SED..GR BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67630-2A26002 |
LX70,SX70..SED..GR MAROON,MAROON,TRIM3# |
1 | ||
| 67630-2A40002 |
LX70,SX70..SED..GR GR SALOON,MAROON,MAROON,TRIM3# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-30060 |
GX7#,LX7#,MX71,SX70,YX7# BLUE |
12 | ||
| 67771-22010 |
GX7#,LX7#,MX71,SX70,YX7# BLACK |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2287002 |
GX70,LX70,SX70..GR,LG MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2287005 |
GX70,LX70,SX70..GR,LG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-2288005 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-2287003 |
GX70,LX70,SX70..GR,LG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-2288003 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-2288002 |
GX7#,LX70,SX70..(SED,WG)..(GR,LG) W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2A20002 |
LX70,SX70..GR GR EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2A26004 |
LX70,SX70..SED..GR BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67640-2A26005 |
LX70,SX70..SED..GR BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67640-2A26002 |
LX70,SX70..SED..GR MAROON,MAROON,TRIM3# |
1 | ||
| 67640-2A40002 |
LX70,SX70..SED..GR GR SALOON,MAROON,MAROON,TRIM3# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-2203005 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-2203002 |
GX7#,LX70,MX71,SX70..GD,GR,GT,LG MAROON,MAROON,TRIM3# |
2 | ||
| 67785-2203003 |
GX7#,LX7#,MX71,SX70,YX7# GRAY,COOL GRAY,TRIM1# |
2 | ||
| 67785-2203004 |
GX7#,LX7#,SX70,YX7#..SED,V,WG BLUE,DARK BLUE,TRIM8# |
2 | ||
| 67785-2203015 |
GX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS) BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-22050 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| 68190-22070 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
