SX60-XTPES (1982)
Toyota Mark 2
Production
Aug 1982
-
Jul 1984
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )SX60

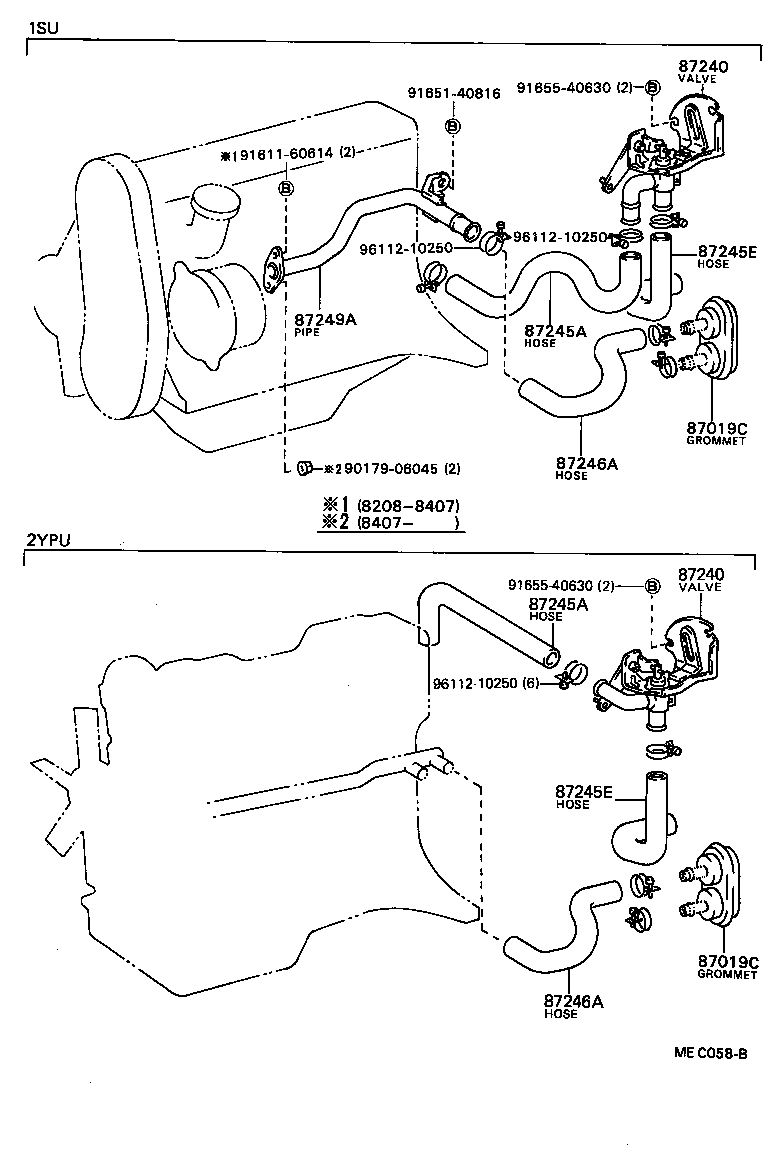

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 96532-13017 |
RX6#,SX60,TX6# |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 96532-13017 |
RX6#,SX60,TX6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22150 |
LX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,TDE |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22150 |
LX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,TDE |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-22520 |
SX60..CBR |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-22520 |
SX60..CBR |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-22130 |
GX6#,LX6#,MX6#,SX60,TX67..CBR,DSL,EFI,LPG,TBO,TDE |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-22130 |
GX6#,LX6#,MX6#,SX60,TX67..CBR,DSL,EFI,LPG,TBO,TDE |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-22531 |
SX60..CBR |
1 | ||
| 87245-22530 |
SX60..CBR |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-22531 |
SX60..CBR |
1 | ||
| 87245-22530 |
SX60..CBR |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-20160 |
SX60 |
1 | ||
| 87208-14270 |
SX60 |
1 | ||
| 87208-14110 |
SX60 |
1 | ||
| Common parts | ||||
| 90179-06045 | ||||
| 91611-60614 | ||||
| 91651-40816 | ||||
| 91655-40630 | ||||
| 96112-10250 | ||||
