SX60-XTPES (1982)
Toyota Mark 2

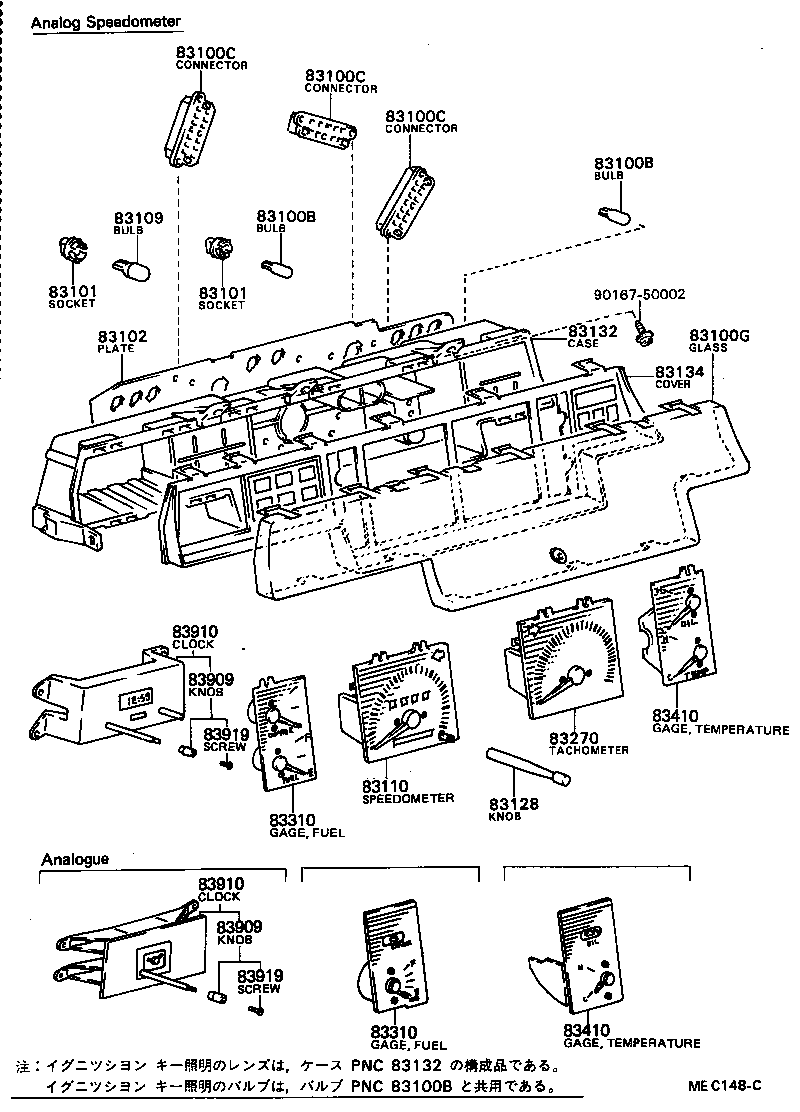

ILLUST NO. 1 OF 3(8208- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 99132-12034 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 99132-12034 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-22330 |
MX61,SX60..HT..(GD,GR,LGT) W/DIGITAL CLOCK,*AS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MX61;GX6#,SX60..HT,WG 12V 3.4W |
9 | ||
| 83101-14040 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.4W |
20 | ||
| 83101-14050 |
MX61;GX6#,SX60..HT,WG 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MX61;GX6#,SX60..HT,WG 12V 3.4W |
9 | ||
| 83101-14040 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.4W |
20 | ||
| 83101-14050 |
MX61;GX6#,SX60..HT,WG 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22490 |
SX60..HT..GR |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-14010 |
MX61;GX6#,SX60..HT,WG W/*AS,12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22740 |
GX61,SX60..HT..(GL,GR,LE,LG) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
SX60..HT;GX60,MX61 W/*AS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22190 |
SX60..HT..GR |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-22190 |
SX60..HT |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22310 |
SX60..HT |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22330 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22330 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22310 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83244-22350 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22310 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83244-22350 |
GX61,SX60..HT..(GL,GR,LE) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX61..GD,LG;GX60,LX65,MX61,SX60..GD,GR,LE,LGT DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX61..GD,LG;GX60,LX65,MX61,SX60..GD,GR,LE,LGT DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22201 |
MX61,SX60..HT..(GD,GR,LGT) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22201 |
MX61,SX60..HT..(GD,GR,LGT) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX61..GD,LG;GX60,LX65,MX61,SX60..GD,GR,LE,LGT DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX61..GD,LG;GX60,LX65,MX61,SX60..GD,GR,LE,LGT DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
