SX60-XTPES (1982)

Toyota Mark 2

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

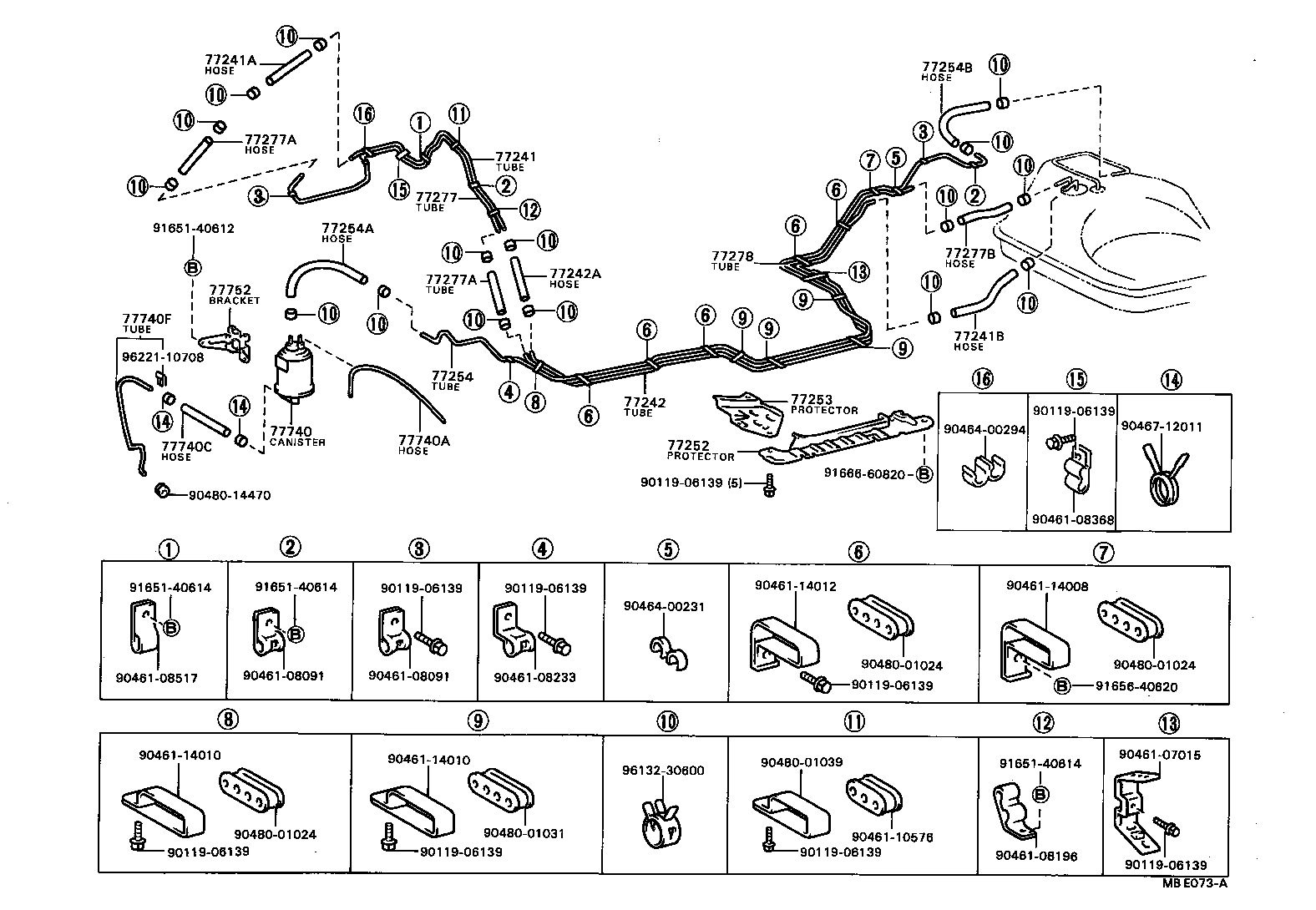

ILLUST NO. 2 OF 2(8208- )SX60

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77242 77242A 77252 77253 77254 77254A 77254B 77277 77277A 77277A 77277B 77278 77740 77740A 77740C 77740F 77752 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9046107015 9046108091 9046108091 9046108196 9046108233 9046108368 9046108517 9046110576 9046114008 9046114010 9046114010 9046114012 9046400231 9046400294 9046712011 9048001024 9048001024 9048001024 9048001031 9048001039 9048014470 9165140612 9165140614 9165140614 9165140614 9165640620 9166660820 9613230600 9622110708
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-22260

SX60

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06020

SX60

*H,L=130

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-22040

SX60

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

SX60

*H,L=120

 1
77252 - PROTECTOR, FUEL TUBE
77266-22020

GX6#,LX6#,MX6#,SX60

 1
77253 - PROTECTOR, FUEL TUBE, NO.2
77267-22010

GX6#,LX6#,MX6#,SX60

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-22070

SX60

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

SX60

*H,L=300

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

GX6#,LX60,65,MX61,63,SX60..HT,SED

*H,L=170

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-22150

SX60

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06060

SX60

*H,L=460

 1
95332-06020

SX60

*H,L=120

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06060

SX60

*H,L=460

 1
95332-06020

SX60

*H,L=120

 1
77278 - TUBE, FUEL RETURN, NO.2
77256-22030

SX60

 1
77740 - CANISTER ASSY, CHARCOAL
77704-14230

SX60

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

GX61,SX60..CBR,TWC

*H,L=600,ﾏｰｸ=#*

 1
95411-19960

SX60

*H,L=600,ﾏｰｸ=#*

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-22020

SX60

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77751-22050

SX60

 1
Common parts
90119-06139
90461-07015
90461-08091
90461-08196
90461-08233
90461-08368
90461-08517
90461-10576
90461-14008
90461-14010
90461-14012
90464-00231
90464-00294
90467-12011
90480-01024
90480-01031
90480-01039
90480-14470
91651-40612
91651-40614
91656-40620
91666-60820
96132-30600
96221-10708
