SX60-XEPNS (1982)
Toyota Mark 2
Production
Aug 1982
-
Jul 1984
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )L,2LTE

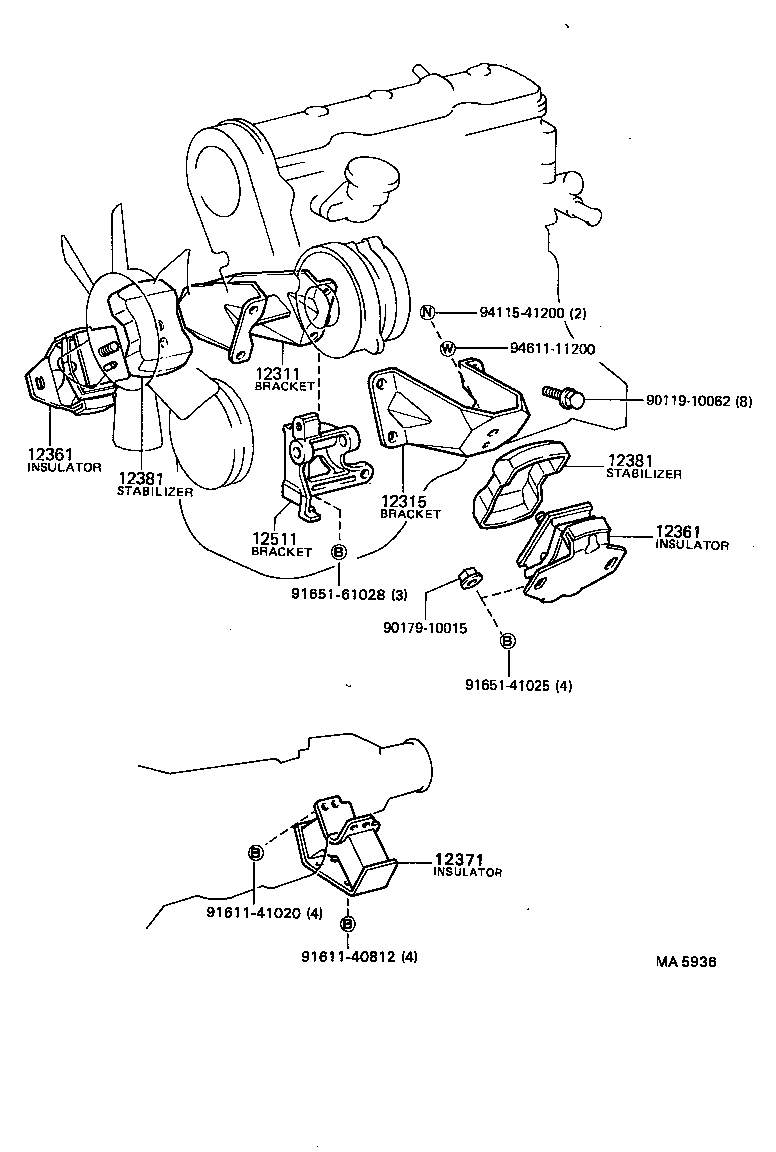

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-63010 |
1SU..SX60 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-63010 |
1SU..SX60 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
1SU..SX60 TOYO |
2 | ||
| 12361-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
1SU..SX60 TOYO |
2 | ||
| 12361-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
1SU,2YPU..SX60 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
1SU,2YPU..SX60 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91611-61025 | ||||
| 91651-41025 | ||||
(8208- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-63010 |
1SU..SX60 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-63010 |
1SU..SX60 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
1SU..SX60 TOYO |
2 | ||
| 12361-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-63010 |
1SU..SX60 TOYO |
2 | ||
| 12361-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
1SU,2YPU..SX60 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-63010 |
1SU..SX60 TOYO |
2 | ||
| 12381-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-63010 |
1SU..SX60 TOYO |
2 | ||
| 12381-63020 |
1SU..SX60 MARUYASU |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-63010 |
1SU..SX60 |
1 | ||
| Common parts | ||||
| 90119-10062 | ||||
| 90179-10015 | ||||
| 91611-40812 | ||||
| 91611-41020 | ||||
| 91651-41025 | ||||
| 91651-61028 | ||||
| 94115-41200 | ||||
| 94611-11200 | ||||
