SX60-XEMRS (1982)

Toyota Mark 2

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )DLX,GL,STD

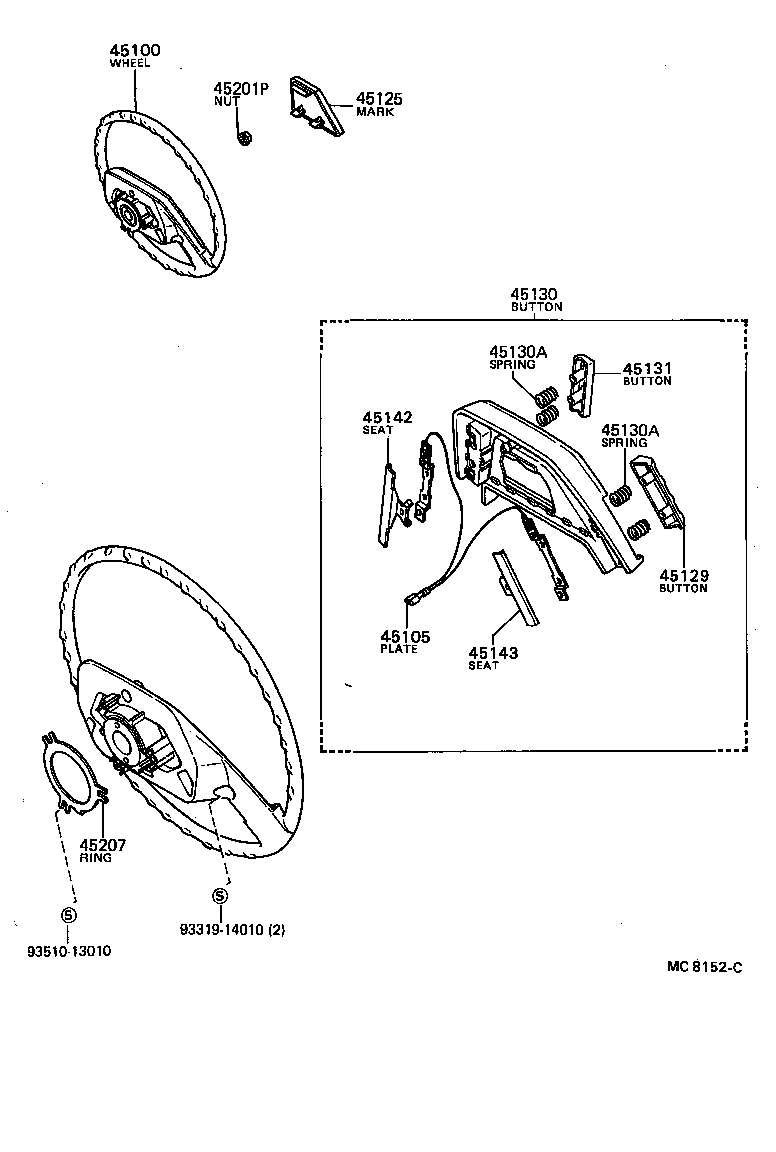

Click highlighted areas on diagram

diagram 45100 45105 45125 45129 45130 45130A 45130A 45131 45142 45143 45201P 45207 9331914010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2023002

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DEEP MAROON,RED/MAROON,TRIM3#

 1
45100-2023006

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DARK BROWN,BROWN,TRIM4#

 1
45100-2023004

LX60,67,MX60,SX60,TX67..DLX,GL,STD

BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14070

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 1
45125 - MARK, STEERING WHEEL PAD
45125-2222002

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DEEP MAROON,RED/MAROON,TRIM3#

 1
45125-2222004

LX60,67,MX60,SX60,TX67..DLX,GL,STD

BLUE,BLUE,TRIM8#

 1
45125-2222006

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DARK BROWN,BROWN,TRIM4#

 1
45129 - BUTTON, HORN, NO.2
45131-2015002

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DEEP MAROON,RED/MAROON,TRIM3#

 1
45131-2015006

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DARK BROWN,BROWN,TRIM4#

 1
45131-2015004

LX60,67,MX60,SX60,TX67..DLX,GL,STD

BLUE,BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-2018004

LX60,67,MX60,SX60,TX67..DLX,GL,STD

BLUE,BLUE,TRIM8#

 1
45130-2018006

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DARK BROWN,BROWN,TRIM4#

 1
45130-2018002

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DEEP MAROON,RED/MAROON,TRIM3#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-09023

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 4
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-09023

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 4
45131 - BUTTON, HORN, NO.1
45129-2006004

LX60,67,MX60,SX60,TX67..DLX,GL,STD

BLUE,BLUE,TRIM8#

 1
45129-2006002

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DEEP MAROON,RED/MAROON,TRIM3#

 1
45129-2006006

LX60,67,MX60,SX60,TX67..DLX,GL,STD

DARK BROWN,BROWN,TRIM4#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-14040

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 1
45143 - SEAT, HORN BUTTON CONTACT, NO.2
45143-14020

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
45207 - RING, HORN CONTACT
45176-14050

LX60,67,MX60,SX60,TX67..DLX,GL,STD

 1
Common parts
93319-14010
93510-13010
