SX60-XEMRS (1983)

Toyota Mark 2

Production Feb 1983 - Jul 1984
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8302- )2YPU

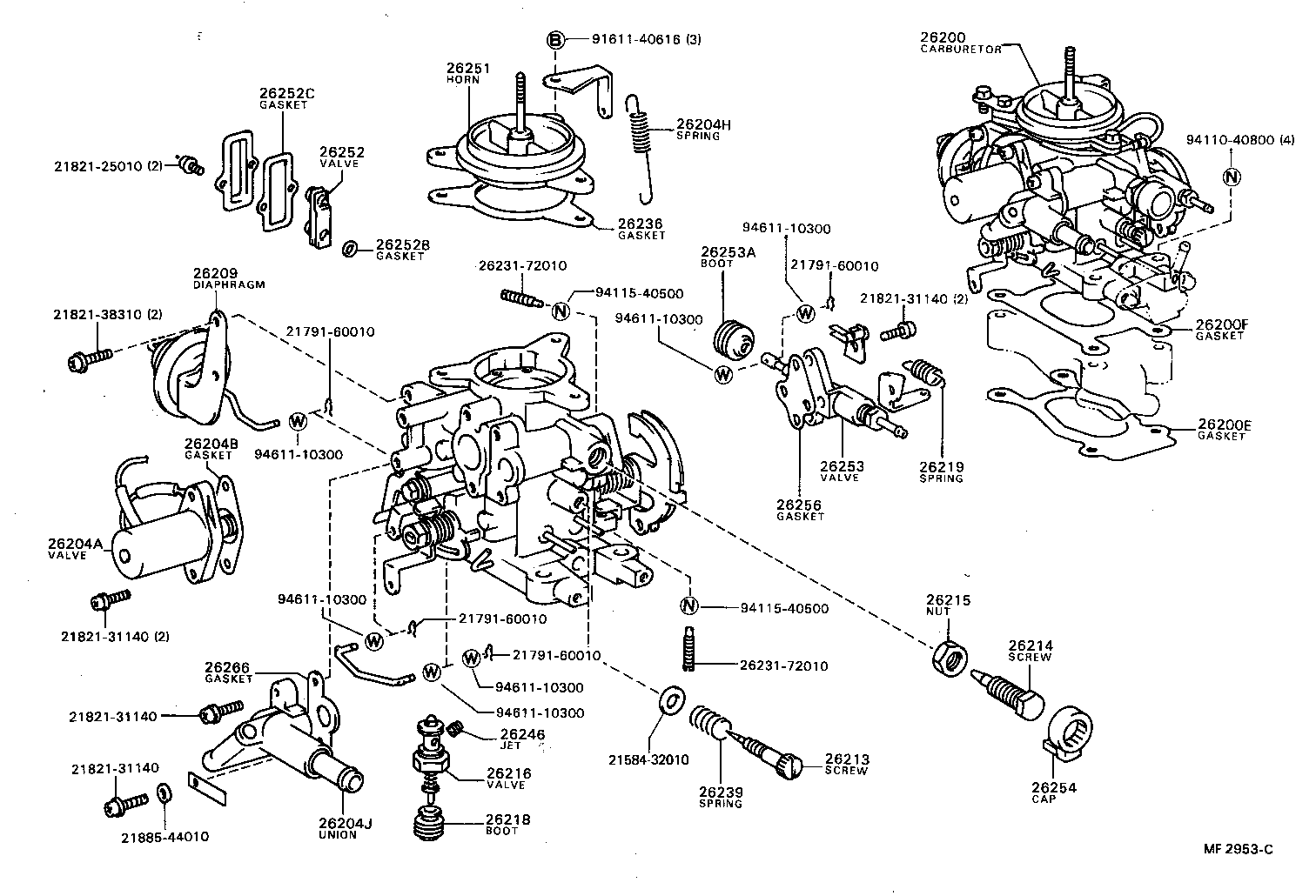

Click highlighted areas on diagram

diagram 2158432010 2179160010 2179160010 2179160010 2179160010 2182125010 2182131140 2182131140 2182131140 2182131140 2182138310 2188544010 26200 26200E 26200F 26204A 26204B 26204H 26204J 26209 26213 26214 26215 26216 26218 26219 2623172010 2623172010 26236 26239 26246 26251 26252 26252B 26252C 26253 26253A 26254 26256 26266 9161140616 9411040800 9411540500 9411540500 9461110300 9461110300 9461110300 9461110300 9461110300 9461110300
Part # Description Qty Price
26200 - CARBURETOR ASSY, LPG
26200-73010

2YPU..SX60

*30

 1
26200-72010

2YPU..SX60

*30

 1
26200E - GASKET, CARBURETOR, NO.1
21911-72010

2YPU..SX60

*30

 1
26200F - GASKET, CARBURETOR, NO.2
21916-72010

2YPU..SX60

*30

 1
26204H - SPRING, THROTTLE RETURN(FOR LPG)
26248-72010

2YPU..SX60

*30

 1
26204J - UNION, NO.2 FUEL HOSE(FOR LPG)
26249-72010

2YPU..SX60

*30

 1
26209 - DIAPHRAGM SUB-ASSY(FOR LPG)
26209-72010

2YPU..SX60

*30

 1
26214 - SCREW, POWER ADJUST
26214-72010

2YPU..SX60

 1
26216 - VALVE, POWER
26216-73010

2YPU..SX60

*30

 1
26216-72010

2YPU..SX60

*30

 1
26219 - SPRING, POWER VALVE
26219-72010

2YPU..SX60

*30

 1
26236 - GASKET, AIR HORN
26236-72010

2YPU..SX60

*30

 1
26246 - JET
26246-41030

2YPU..SX60

*30

 1
26251 - HORN, AIR
26251-72010

2YPU..SX60

*30

 1
26252 - VALVE, THERMOSTATIC
26252-72010

2YPU..SX60

*30

 1
26252B - GASKET, NO.1(FOR THERMOSTATIC VALVE)
21641-24030

2YPU..SX60

*30

 1
26252C - GASKET, NO.2(FOR THERMOSTATIC VALVE)
21641-37041

2YPU..SX60

*30

 1
26253 - VALVE, CHANGE(FOR SLOW)
26253-72010

2YPU..SX60

*30

 1
26253A - BOOT(FOR CHANGE VALVE)
26218-44061

2YPU..SX60

*30

 1
26256 - GASKET, CHANGE VALVE
26256-72010

2YPU..SX60

*30

 1
26266 - GASKET, FUEL INLET UNION
26266-44060

2YPU..SX60

*30

 1
Common parts
21584-32010
21791-60010
21821-25010
21821-31140
21821-38310
21885-44010
26231-72010
91611-40616
94110-40800
94115-40500
94611-10300
