SX60-XEMDS (1982)
Toyota Mark 2

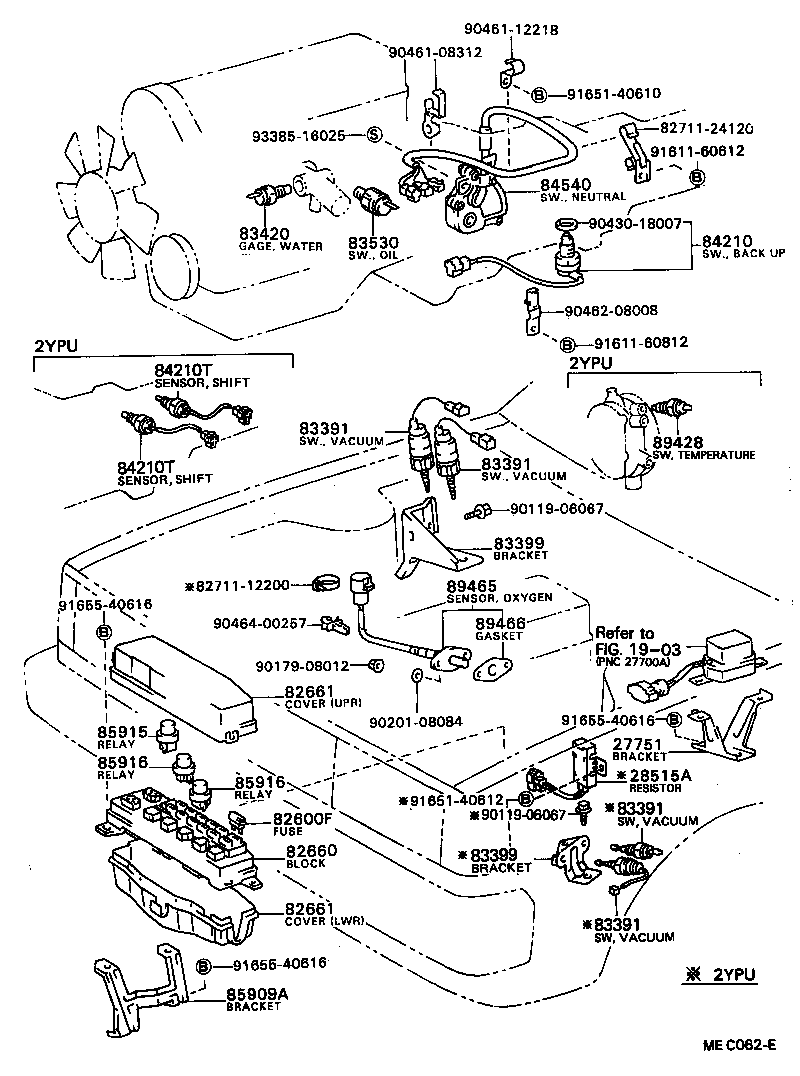

ILLUST NO. 1 OF 7(8208- )SX60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27751 - BRACKET, GENERATOR REGULATOR | ||||
| 27751-70010 |
21RU,13T#,1SU..RX60,SX60,TX6# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22080 |
LX60,67,MX60,RX60,SX60,TX6# YAZAKI |
1 | ||
| 82660-22150 |
LX60,67,MX60,SX60,TX67 SUMITOMO |
1 | ||
| 82660-22071 |
LX60,67,MX60,RX60,SX60,TX6# SUMITOMO |
1 | ||
| 82660-22160 |
LX60,67,MX60,SX60,TX67 YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20020 |
GX6#,LX6#,MX6#,SX60,TX67 UPR |
1 | ||
| 82661-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,YAZAKI |
1 | ||
| 82661-22080 |
GX6#,LX6#,MX6#,SX60,TX67 UPR,YAZAKI |
1 | ||
| 82661-22070 |
GX6#,LX6#,MX6#,SX60,TX67 UPR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20020 |
GX6#,LX6#,MX6#,SX60,TX67 UPR |
1 | ||
| 82661-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,YAZAKI |
1 | ||
| 82661-22080 |
GX6#,LX6#,MX6#,SX60,TX67 UPR,YAZAKI |
1 | ||
| 82661-22070 |
GX6#,LX6#,MX6#,SX60,TX67 UPR,SUMITOMO |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
SX60..CBR MARK=330B |
1 | ||
| 83391-14061 |
MX60;SX60..CBR MARK=85M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
SX60..CBR MARK=330B |
1 | ||
| 83391-14061 |
MX60;SX60..CBR MARK=85M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
SX60..CBR MARK=330B |
1 | ||
| 83391-14061 |
MX60;SX60..CBR MARK=85M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
SX60..CBR MARK=330B |
1 | ||
| 83391-14061 |
MX60;SX60..CBR MARK=85M |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22060 |
SX60..CBR |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22060 |
SX60..CBR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# DENSO |
1 | ||
| 83420-20020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
SX60 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
GX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX6#,SX60,TX67 TAIL |
1 | ||
| 90987-01003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 90987-02006 |
GX6#,LX6#,MX6#,SX60,TX67 HEAD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX6#,SX60,TX67 TAIL |
1 | ||
| 90987-01003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 90987-02006 |
GX6#,LX6#,MX6#,SX60,TX67 HEAD |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19065 |
SX60..CBR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MX6#,SX60 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-24120 | ||||
| 90119-06067 | ||||
| 90179-08012 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00257 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
