RX63-XTMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)GX6#,RX63..GD,GT,LG,LGT ; (8110-8208)MX61..SED..LGT ; (8110- )MX61..H

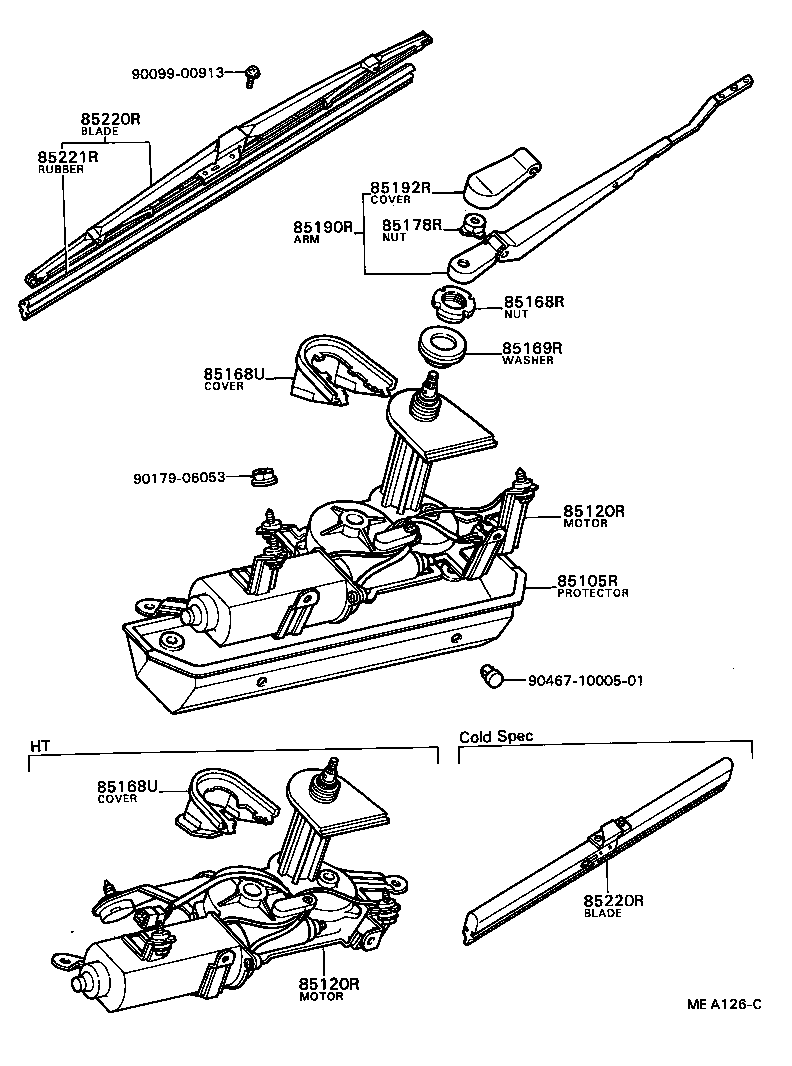

Click highlighted areas on diagram

diagram 85105R 85120R 85120R 85168R 85168U 85168U 85169R 85178R 85190R 85192R 85220R 85220R 85221R 9009900913 9017906053 904671000501
Part # Description Qty Price
85105R - PROTECTOR, REAR WIPER
85105-95800

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85110-95800

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85110-95800

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05150

GX6#,RX63..GD,GT,LG,LGT

 1
85168U - COVER, REAR WIPER
85168-9580001

GX6#,RX63..HT..(GD,GT,LG,LGT)

BLACK,BLACK,TRIM2#

 1
85168-9580004

GX6#,RX63..HT..(GD,GT,LG,LGT)

BLUE,BLUE,TRIM8#

 1
85168-9580006

GX6#,RX63..HT..(GD,GT,LG,LGT)

DARK BROWN,BROWN,TRIM4#

 1
85168U - COVER, REAR WIPER
85168-9580001

GX6#,RX63..HT..(GD,GT,LG,LGT)

BLACK,BLACK,TRIM2#

 1
85168-9580004

GX6#,RX63..HT..(GD,GT,LG,LGT)

BLUE,BLUE,TRIM8#

 1
85168-9580006

GX6#,RX63..HT..(GD,GT,LG,LGT)

DARK BROWN,BROWN,TRIM4#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-22130

GX6#,RX63..GD,GT,LG,LGT

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

GX6#,RX63..GD,GT,LG,LGT

 1
85190R - ARM ASSY, REAR WIPER
85190-95803

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85192R - COVER, REAR WIPER ARM
85192-14020

GX6#,RX63..GD,GT,LG,LGT

 1
85220R - BLADE ASSY, REAR WIPER
85220-20100

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85220R - BLADE ASSY, REAR WIPER
85220-20100

GX6#,RX63..HT..(GD,GT,LG,LGT)

 1
85221R - BLADE, REAR WIPER
85221-20090

GX6#,RX63..HT..(GD,GT,LG,LGT)

L=446

 1
Common parts
90099-00913
90179-06053
90467-1000501
