RX63-XTMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

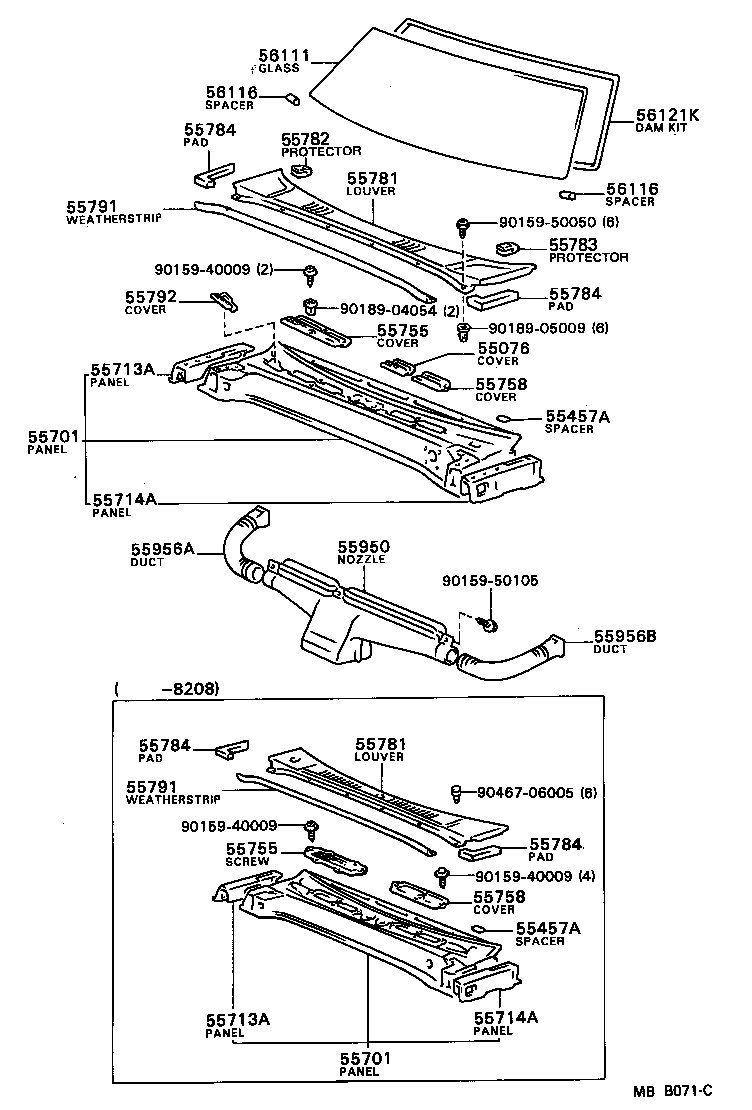

Click highlighted areas on diagram

diagram 55076 55457A 55457A 55701 55701 55713A 55713A 55714A 55714A 55755 55755 55758 55758 55781 55781 55782 55783 55784 55784 55784 55784 55791 55791 55792 55950 55956A 55956B 56111 56116 56116 56121K 9015940009 9015940009 9015940009 9015950050 9015950105 9018904054 9018905009 9046706005
Part # Description Qty Price
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 3
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 3
55701 - PANEL SUB-ASSY, COWL
55700-22250

RX60..4FC;GX6#,MX61,63,RX63,TX6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-22250

RX60..4FC;GX6#,MX61,63,RX63,TX6#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22030

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55755 - SCREEN, HEATER AIR DUCT
55731-22020

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55755 - SCREEN, HEATER AIR DUCT
55731-22020

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55758 - COVER, HEATER AIR DUCT
55077-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55758 - COVER, HEATER AIR DUCT
55077-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55781 - LOUVER, COWL VENTILATOR
55781-22090

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55781 - LOUVER, COWL VENTILATOR
55781-22090

GX6#,LX6#,MX6#,RX6#,TX6#

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22030

GX6#,LX6#,MX6#,RX6#,TX6#

RH

 1
55784-22030

GX6#,LX6#,MX6#,RX6#,TX6#

LH

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22030

GX6#,LX6#,MX6#,RX6#,TX6#

RH

 1
55784-22030

GX6#,LX6#,MX6#,RX6#,TX6#

LH

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22030

GX6#,LX6#,MX6#,RX6#,TX6#

RH

 1
55784-22030

GX6#,LX6#,MX6#,RX6#,TX6#

LH

 1
55784 - PAD, COWL OUTER PANEL, NO.1
55783-22030

GX6#,LX6#,MX6#,RX6#,TX6#

RH

 1
55784-22030

GX6#,LX6#,MX6#,RX6#,TX6#

LH

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-22010

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55971-22010

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
56111 - GLASS, WINDSHIELD
56111-22160

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

*TZT,T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-30030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
Common parts
90159-40009
90159-50050
90159-50105
90189-04054
90189-05009
90467-06005
