RX63-XTMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

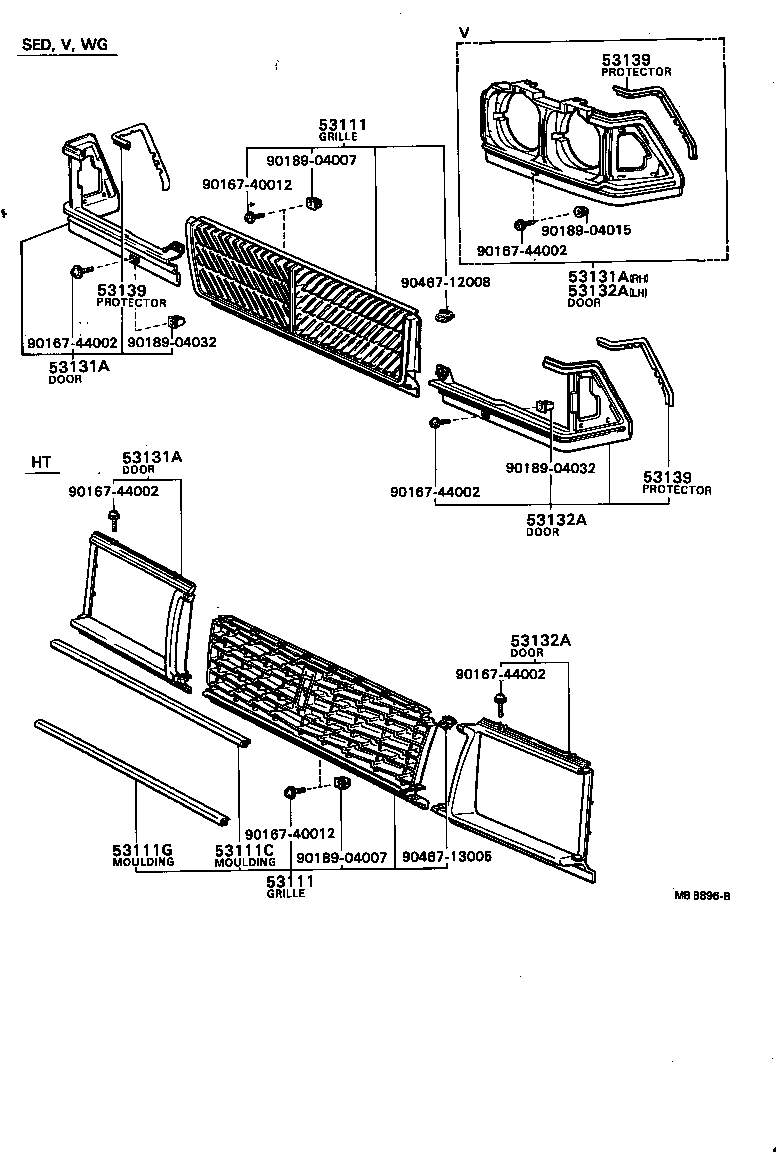

Click highlighted areas on diagram

diagram 53111 53111 53111C 53111G 53131A 53131A 53131A 53132A 53132A 53132A 53139 53139 53139 9016740012 9016740012 9016744002 9016744002 9016744002 9016744002 9016744002 9018904007 9018904007 9018904015 9018904032 9018904032 9046712008 9046713005
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-95800

GX6#,MX61,63,RX6#,TX60..HT

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-95800

GX6#,MX61,63,RX6#,TX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29245

GX6#,MX61,63,RX60,TX60..HT

 1
53131-29255

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER,LWR

 1
53131-29245

GX6#,MX63,RX6#,TX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29245

GX6#,MX61,63,RX60,TX60..HT

 1
53131-29255

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER,LWR

 1
53131-29245

GX6#,MX63,RX6#,TX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29245

GX6#,MX61,63,RX60,TX60..HT

 1
53131-29255

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER,LWR

 1
53131-29245

GX6#,MX63,RX6#,TX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29225

GX6#,MX63,RX6#,TX60..HT

 1
53132-29235

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER

 1
53132-29225

GX6#,MX61,63,RX60,TX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29225

GX6#,MX63,RX6#,TX60..HT

 1
53132-29235

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER

 1
53132-29225

GX6#,MX61,63,RX60,TX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29225

GX6#,MX63,RX6#,TX60..HT

 1
53132-29235

GX6#,MX63,RX63..HT..(GD,GT,LG,LGT)

W/HEADLAMP CLEANER

 1
53132-29225

GX6#,MX61,63,RX60,TX60..HT

 1
Common parts
90167-40012
90167-44002
90189-04007
90189-04015
90189-04032
90467-12008
90467-13005
