RX63-XTMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

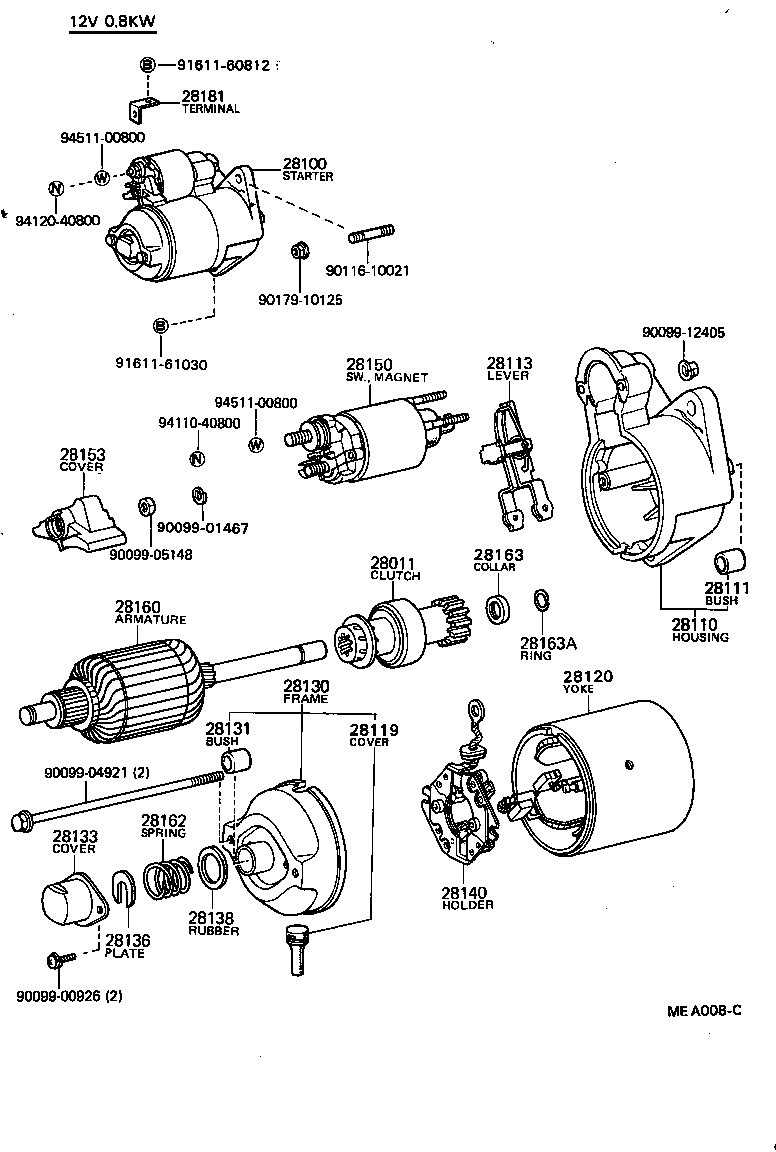

(8009-8208)21RU,18RGEU

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 28140 28150 28153 28160 28162 28163 28163A 28181 9009900926 9009901467 9009904921 9009905148 9009912405 9011610021 9017910125 9161160812 9161161030 9411040800 9412040800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28011-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-37010

21RU,18RGEU..RX6#

12V 0.8KW

 1
28110-40061

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28111-51011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28113-15011

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120-15010

21RU,18RGEU,MTEU..MX61,RX6#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

21RU,13T#,18RGEU..RX6#,TX6#

12V 0.8KW

 1
28130-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

U/S 0.3,12V 1.0KW

 1
90099-10040

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

U/S 0.5,12V 1.0KW

 1
28131-20010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

STD,12V 1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28132-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28136 - PLATE, STARTER LOCK
28136-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28136-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28138-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15011

21RU,18RGEU..RX6#

12V 0.8KW

 1
28150-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28153 - COVER, MAGNET SWITCH
28159-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28160-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41022

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28162-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6#

12V 0.8KW,1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 0.8KW,1.0KW

 1
Common parts
90099-00926
90099-01467
90099-04921
90099-05148
90099-12405
90116-10021
90179-10125
91611-60812
91611-61030
94110-40800
94120-40800
94511-00800

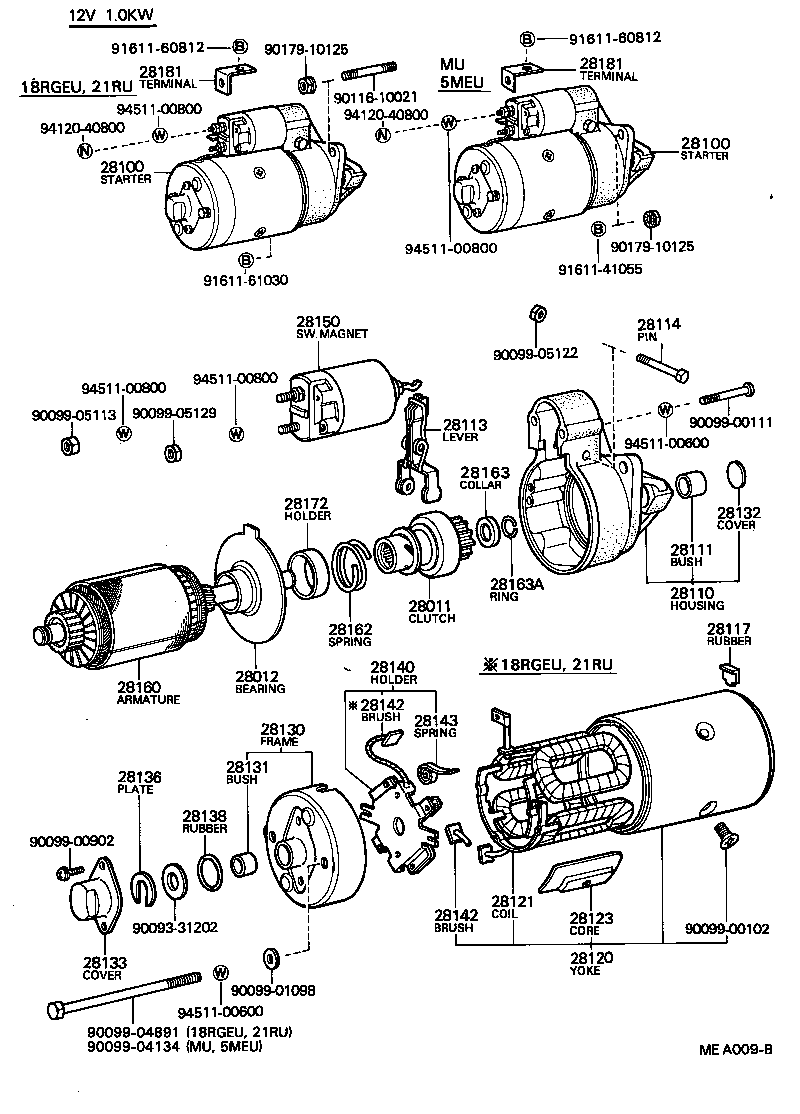

(8009-8308)21RU,18RGEU,5MEU,MU

Click highlighted areas on diagram

diagram 28011 28100 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28172 28181 28181 9009331202 9009900102 9009900111 9009900902 9009901098 9009904134 9009904891 9009905113 9009905122 9009905129 9011610021 9017910125 9017910125 9161141055 9161160812 9161160812 9161161030 9412040800 9412040800 9451100600 9451100600 9451100800 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28011-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-37010

21RU,18RGEU..RX6#

12V 0.8KW

 1
28110-40061

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28111-51011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28113-15011

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120-15010

21RU,18RGEU,MTEU..MX61,RX6#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-42020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28123 - CORE, STARTER POLE
28123-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

21RU,13T#,18RGEU..RX6#,TX6#

12V 0.8KW

 1
28130-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

U/S 0.3,12V 1.0KW

 1
90099-10040

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

U/S 0.5,12V 1.0KW

 1
28131-20010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

STD,12V 1.0KW

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28132-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28136 - PLATE, STARTER LOCK
28136-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28136-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28138-40010

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-25011

21RU,18RGEU..RX6#

12V 1.0KW,HOLDER

 2
28142-25020

21RU,18RGEU..RX6#

12V 1.0KW,YOKE

 2
28142 - BRUSH, STARTER
28142-25011

21RU,18RGEU..RX6#

12V 1.0KW,HOLDER

 2
28142-25020

21RU,18RGEU..RX6#

12V 1.0KW,YOKE

 2
28143 - SPRING, STARTER BRUSH
28143-40040

21RU,18RGEU..RX6#

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-15011

21RU,18RGEU..RX6#

12V 0.8KW

 1
28150-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-41020

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28160-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41022

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28162-15010

21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6#

12V 0.8KW,1.0KW

 1
28172 - HOLDER, STARTER SPRING
28172-41021

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 0.8KW,1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

21RU,18RGEU,5MEU,MU..MX60,63,RX6#

12V 0.8KW,1.0KW

 1
Common parts
90093-31202
90099-00102
90099-00111
90099-00902
90099-01098
90099-04134
90099-04891
90099-05113
90099-05122
90099-05129
90116-10021
90179-10125
91611-41055
91611-60812
91611-61030
94120-40800
94511-00600
94511-00800
